User manual Tascam DR-40 4-Track Handheld Digital Audio Recorder DR-40

Operating instructions and pdf manual for use - Tascam DR-40 4-Track Handheld Digital Audio Recorder DR-40 User manual, User manual Tascam DR-40 4-Track Handheld Digital Audio Recorder DR-40, Tascam, DR-40, 4-Track, Handheld, Digital, Audio, Record


User manual for Tascam DR-40 4-Track Handheld Digital Audio Recorder DR-40

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.
Tascam DR-40 4-Track Handheld Digital Audio Recorder DR-40
  • Manufacturer: Tascam
  • Basic description and contents of package
  • Product classification: Pro Audio - Recording - Portable Digital Recorders
  • Safety instructions
  • Startup and operation of the portable digital recorders
  • Tips for setting up your Tascam
  • Settings and expert assistance
  • Contact Tascam service
  • Troubleshooting
  • Warranty information
  • Price: 180 USD

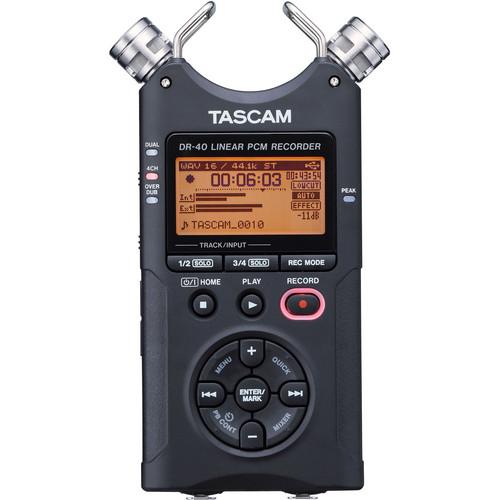

Tascam DR-40 4-Track Handheld Digital Audio Recorder DR-40 Tascam DR-40 4-Track Handheld Digital Audio Recorder DR-40
Click to enlarge image

We recommend checking out our discussion threads on the Tascam DR-40 4-Track Handheld Digital Audio Recorder DR-40, which address similar problems with connecting and setting up Portable Digital Recorders Tascam.



User manual for the Tascam DR-40 4-Track Handheld Digital Audio Recorder DR-40

The user manual for the Tascam DR-40 4-Track Handheld Digital Audio Recorder DR-40 provides necessary instructions for the proper use of the product Pro Audio - Recording - Portable Digital Recorders.

The black DR-40 4-Track Handheld Digital Audio Recorder from Tascam provides professional-level features and flexibility in a compact and durable design that's ideal for use in the field. The unit can record high-quality WAV/BWF or MP3 files to readily-available SD or SDHC flash memory cards, allowing you to record hours of material and share it easily. A 2GB card is included so you can get started recording right away.

The recorder features built-in adjustable condenser microphones, allowing you to choose an X/Y or A/B recording pattern to meet the needs of your environment and application. A built-in limiter and switchable low cut filter reduce peaks and rumble for cleaner recordings. There are a pair of Neutrik combo inputs that accept XLR and 1/4" connections for terrific flexibility. Built-in mic preamps provide phantom power so you can use external condenser mics. A 3.5mm headphone/line output allows you to connect additional equipment such as headphones or small speakers. The high-speed USB 2.0 port allows you to transfer your recordings to a Mac or PC for editing or sharing.

A built-in speaker allows you to play back your recordings immediately for review. Other features include a dual recording mode, and overdub mode, and a peak reduction feature. There is a 2-second pre-recording buffer to ensure that you never miss a priceless moment due to pressing the record button too late. There is also a chromatic tuner and a stereo reverb effect. A threaded mounting hole lets you mount the recorder on a tripod for terrific stability. The DR-40 can operate for up to 15 hours from 3 standard AA batteries. It can also use USB bus power via the included cable. An optional AC adapter and external battery pack (sold separately) provide additional powering options.
If you own a Tascam portable digital recorders and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Tascam DR-40 4-Track Handheld Digital Audio Recorder DR-40 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Tascam DR-40 4-Track Handheld Digital Audio Recorder DR-40Download user manual for Tascam DR-40 4-Track Handheld Digital Audio Recorder DR-40
(PDF file, 6.62 MB)
Additional parameters of the Tascam DR-40 4-Track Handheld Digital Audio Recorder DR-40:
Type Hand-Held 4-Track Digital Audio Recorder
Recording/Reading Methods SD or SDHC Card (64 MB to 32 GB)
Recording Bit Rate WAV: 16 and 24-bit
MP3: 32-320 kbps, VBR
Sampling Frequency WAV: 44.1, 48, or 96 kHz
MP3: 44.1 and 48 kHz
Number of Channels 4 (2 Stereo)
Recording Time All times are for a 1GB memory card
Stereo Mode:
MP3: 17 hours 21 mins (128 kbps), 6 hours 56 mins (320 kbps)
WAV: 1 hour 34 mins (16-bit/44.1 kHz), 1 hour 26 mins (16-bit/48 kHz), 28 mins (24-bit/96 kHz)
Frequency Response 20 Hz~20 kHz +1/-3dB (44.1 kHz, EXT IN-LINE OUT, JEITA)
20 Hz~22 kHz +1/-3dB (48 kHz, EXT IN-LINE OUT, JEITA)
20 Hz~40 kHz +1/-3dB (96 kHz, EXT IN-LINE OUT)
Total Harmonic Distortion (THD) < 0.05% (44.1/48/96 kHz, EXT IN-LINE OUT)
S/N Ratio > 92 dB (44.1/48/96 kHz, EXT IN-LINE OUT)
A/D Conversion 24-bit
D/A Conversion 24-bit
Speed Adjustment 50-150% Without Affecting Pitch

Only with 44.1/48 kHz

Connectors 2 x XLR/TRS Combo Inputs
1 x 3.5mm Headphone/Line Out
1 x High-Speed Mini-B USB 2.0 Port
1 x Remote Jack
Input Impedance Mic: 2.2 kOhms
Line: 10 kOhms
Input Level Nominal: -19 dBV Mic, +4 dBu Line
Max: -3 dBV Mic, +20 dBu Line
Output Impedance 12 Ohms
Output Level Nominal: -14 dBV (10 kOhms)
Max: +2 dBV (10 kOhms)
Microphone Adjustable Stereo Condenser (X/Y and A/B)
Headphone Output 20 mW + 20 mW (32 Ohms)
Speaker 0.3 W, Mono
Filter 40/80/120 Hz Low Cut
Battery Type/Life 3 x AA (Alkaline or NiMH)
Up to 15 Hours of Continuous Operation, Phantom Power Off
Power 100-240 VAC, 50/60 Hz (via Optional AC Adapter)
Power Consumption 2.5 W Max
Dimensions (WxHxD) Mics Open: 3.54 x 6.1 x 1.38" (90 x 155 x 35 mm)
Mics Closed: 2.76 x 6.1 x 1.38" (70 x 155 x 35 mm)
Weight 7.5 oz (213 g) (Without Batteries)
System Requirements Windows XP, Vista, or 7, Pentium 300MHz, 128MB RAM, USB 2.0 Recommended
Mac OS X v10.2 or Later, Power PC G3, G4, or G5 266MHz Min, 64MB RAM, USB 2.0 Recommended
Packaging Info
Package Weight 1.15 lb
Box Dimensions (LxWxH) 8.0 x 5.5 x 3.2"
The user manual for the Tascam DR-40 4-Track Handheld Digital Audio Recorder DR-40 can be downloaded in .pdf format if it did not come with your new portable digital recorders, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Tascam users keep a unique electronic library for Tascam portable digital recorderss, where you can use our link to download the user manual for the Tascam DR-40 4-Track Handheld Digital Audio Recorder DR-40.

The user manual lists all of the functions of the Tascam DR-40 4-Track Handheld Digital Audio Recorder DR-40, all the basic and advanced features and tells you how to use the portable digital recorders. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Tascam service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Tascam DR-40 4-Track Handheld Digital Audio Recorder DR-40. User manuals are also available on the Tascam website under Pro Audio - Recording - Portable Digital Recorders.
