User manual Tascam DR-44WL Portable Handheld Recorder with Wi-Fi DR-44WL

Operating instructions and pdf manual for use - Tascam DR-44WL Portable Handheld Recorder with Wi-Fi DR-44WL User manual, User manual Tascam DR-44WL Portable Handheld Recorder with Wi-Fi DR-44WL, Tascam, DR-44WL, Portable, Handheld, Recorder, with,


User manual for Tascam DR-44WL Portable Handheld Recorder with Wi-Fi DR-44WL

Overall rating 4.0
Overall Rating: 4.0

80% of respondents would recommend this to a friend.

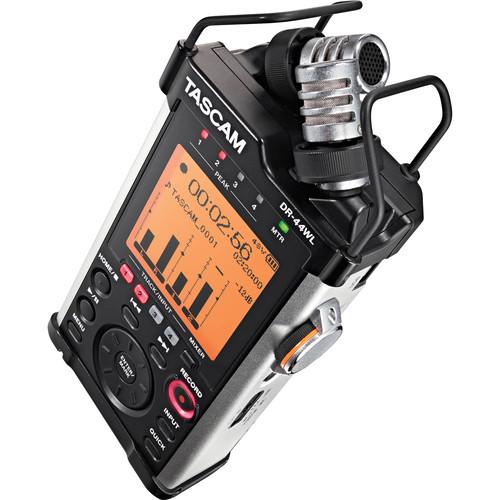

Tascam DR-44WL Portable Handheld Recorder with Wi-Fi DR-44WL
  • Manufacturer: Tascam
  • Basic description and contents of package
  • Product classification: Pro Audio - Recording - Portable Digital Recorders
  • Safety instructions
  • Startup and operation of the portable digital recorders
  • Tips for setting up your Tascam
  • Settings and expert assistance
  • Contact Tascam service
  • Troubleshooting
  • Warranty information
  • Price: 259 USD
We recommend checking out our discussion threads on the Tascam DR-44WL Portable Handheld Recorder with Wi-Fi DR-44WL, which address similar problems with connecting and setting up Portable Digital Recorders Tascam.



User manual for the Tascam DR-44WL Portable Handheld Recorder with Wi-Fi DR-44WL

The user manual for the Tascam DR-44WL Portable Handheld Recorder with Wi-Fi DR-44WL provides necessary instructions for the proper use of the product Pro Audio - Recording - Portable Digital Recorders.

Allowing you to record 4 tracks of audio simultaneously while providing Wi-Fi enabled transport control and file sharing, the DR-44WL Portable Audio Recorder with Wi-Fi from Tascam features a built-in XY stereo microphone and dual combo XLR inputs, and is capable of tracking in up to 24-bit/96kHz resolution. Thanks to its built-in Wi-Fi, which requires no external network, you can control all transport functions via a free iOS and Android app. Additionally, you can use the built-in Wi-Fi to stream playback to your mobile device, as well as transfer files directly to your smart device or computer, for quick upload to social media.

The recorder features Dual-Level recording, which records duplicate tracks at a lower volume, to create a lower-level safety track. It also supports Dual-Format recording, which tracks simultaneously as WAV and MP3 files, so you have access to smaller file sizes for sharing while maintaining the higher-quality WAV as a master track. The DR-44WL records to SD cards, but includes a microSD card adapter for additional recording options. Also included are a windscreen, a mic grip, a shoe mount adapter, a 4GB microSD card, an AC adapter, 4 AA batteries, a USB cable, and a carrying case.
If you own a Tascam portable digital recorders and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Tascam DR-44WL Portable Handheld Recorder with Wi-Fi DR-44WL in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Tascam DR-44WL Portable Handheld Recorder with Wi-Fi DR-44WLDownload user manual for Tascam DR-44WL Portable Handheld Recorder with Wi-Fi DR-44WL
(PDF file, 4.65 MB)
Additional parameters of the Tascam DR-44WL Portable Handheld Recorder with Wi-Fi DR-44WL:
Recording Media
Recording Media SD cards: 64 MB to 2 GB
SDHC cards: 4 to 32 GB
SDXC cards: 48 to 128 GB
Recording Format
WAV/BWF Sampling Frequency: 44.1, 48, 96 kHz
Quantization Bit Rate: 16- or 24-bit
MP3 Sampling Frequency: 44.1, 48 kHz
Recording Bit Rate: 32, 64, 96, 128, 192, 256, 320 kbps
Playback Bit Rate: 32 to 320 kbps
Channel
Channels 4CH Mode:
Mono up to 4 files
Stereo up to 2 files
Stereo (1 file) and mono (up to 2 files)

MTR Mode:
Mono up to 4 files
Analog Input
Mic/Line Inputs XLR-3-31, phantom power compatible
1/4" (6.3 mm) TRS standard jack, phantom power compatible
Input Impedance 2.2 kOhms or more
Nominal Input Level Mic: -17.3 dBu +/-2 dB
Line: 4 dBu
Maximum Input Level Mic: -1.3 dBu +/-2 dB
Line: +20 dBu
Analog Audio Outputs
Connector 1/8" (3.5 mm) stereo mini jack
Nominal Output Level -14 dBV (10 kOhm load)
Maximum Output Level Line Output: +2 dBV (10 kOhm load)
Headphone Output: 20 mW + 20 mW (32 ohm load)
USB
Connector Micro-B type, 4-pin
Format USB 2.0 High-Speed mass storage class
Wi-Fi
Compliance IEEE 802.11b/g/n (2.4 GHz only)
Communication Mode Simple access point (Limited AP)
Security WPA2-PSK (WPS 2.0-supported)
Attachment
Attachment Tripod Attachment Screw Hole: 1/4" (6.3 mm) tripod attachment screw hole
Power Supply
Power Supply 4x AA batteries (alkaline or NiMH),
USB bus power from a computer
Dedicated AC adapter (GPE053B supplied with the unit)
Power Consumption 2.5 W (maximum)
Battery Life Alkaline Batteries:
Recording: About 16 hours (When MIC input is selected, phantom power is not used, WAV, 44.1 kHz/16-bit)

Ni-MH Batteries:
Recording: 12 hours, approximate (When MIC input is selected, phantom power is not used, WAV, 44.1 kHz/16-bit)
Audio Performance
Frequency Response 20 Hz to 20 kHz +1/-3 dB (Fs 44.1 kHz, EXT IN to LINE OUT, JEITA)
20 Hz to 22 kHz +1/-3 dB (Fs 48 kHz, EXT IN to LINE OUT, JEITA)
20 Hz to 40 kHz +1/-3 dB (Fs 96 kHz, EXT IN to LINE OUT, JEITA)
Distortion 0.05% or less (Fs 44.1/48/96 kHz, EXT IN to LINE OUT, JEITA)
Signal to Noise Ratio 92 dB or more (Fs 44.1/48/96 kHz, EXT IN to LINE OUT, JEITA)
Computer Requirements
Windows Windows XP, Windows Vista, Windows 7, Windows 8, Windows 8.1
Mac OS 10.2 to 10.9
Dimensions & Weight
Dimensions 6.3 x 3.1 x 1.7" / 160.0 x 78.7 x 43.2 mm
Weight 12.2 oz (346 g) including batteries
8.8 oz (251 g) without batteries
Packaging Info
Package Weight 1.8 lb
Box Dimensions (LxWxH) 10.709 x 8.11 x 4.252"
The user manual for the Tascam DR-44WL Portable Handheld Recorder with Wi-Fi DR-44WL can be downloaded in .pdf format if it did not come with your new portable digital recorders, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Tascam users keep a unique electronic library for Tascam portable digital recorderss, where you can use our link to download the user manual for the Tascam DR-44WL Portable Handheld Recorder with Wi-Fi DR-44WL.

The user manual lists all of the functions of the Tascam DR-44WL Portable Handheld Recorder with Wi-Fi DR-44WL, all the basic and advanced features and tells you how to use the portable digital recorders. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Tascam service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Tascam DR-44WL Portable Handheld Recorder with Wi-Fi DR-44WL. User manuals are also available on the Tascam website under Pro Audio - Recording - Portable Digital Recorders.
