User manual Tascam MD-CD1MKIII Combination CD Player and MD-CD1MKIII

Operating instructions and pdf manual for use - Tascam MD-CD1MKIII Combination CD Player and MD-CD1MKIII User manual, User manual Tascam MD-CD1MKIII Combination CD Player and MD-CD1MKIII, Tascam, MD-CD1MKIII, Combination, CD, Player, MD-CD1MKIII,


User manual for Tascam MD-CD1MKIII Combination CD Player and MD-CD1MKIII

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.
Tascam MD-CD1MKIII Combination CD Player and MD-CD1MKIII
  • Manufacturer: Tascam
  • Basic description and contents of package
  • Product classification: Pro Audio - Recording - Digital Recorders & Players
  • Safety instructions
  • Startup and operation of the digital recorders & players
  • Tips for setting up your Tascam
  • Settings and expert assistance
  • Contact Tascam service
  • Troubleshooting
  • Warranty information
  • Price: 830 USD
We recommend checking out our discussion threads on the Tascam MD-CD1MKIII Combination CD Player and MD-CD1MKIII, which address similar problems with connecting and setting up Digital Recorders & Players Tascam.



User manual for the Tascam MD-CD1MKIII Combination CD Player and MD-CD1MKIII

The user manual for the Tascam MD-CD1MKIII Combination CD Player and MD-CD1MKIII provides necessary instructions for the proper use of the product Pro Audio - Recording - Digital Recorders & Players.

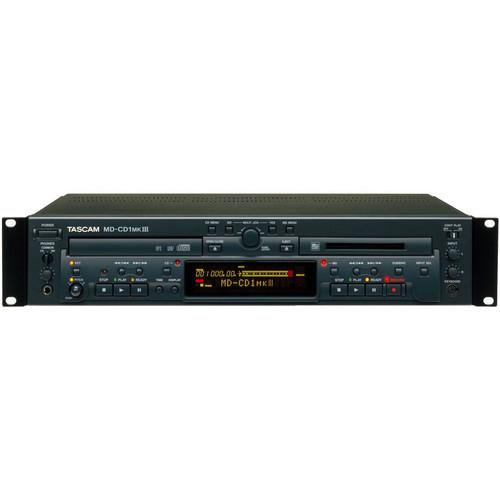

The MD-CD1MKIII Combination CD Player and MiniDisc Recorder from Tascam provides versatile recording and playback options, ideal for contractors, broadcasting, and other installations that require MiniDisc compatibility. The 2RU rackmount chassis has 2 separate sections, each with its own transport controls.

The CD section can play standard CDs, as well as MP3 and WAV file CDs, and CD-TEXT discs. The MiniDisc will play or record in SP, Mono, LP2, and LP4. You can even dub a CD to a MiniDisc at 4x speed. A continuous playback function will cycle from one section to the other for seamless long-term audio playback. Each section offers Auto Cue and Auto Ready functions for quick operation.

Each section has unbalanced stereo RCA outputs, plus optical and coaxial S/PDIF digital outputs, letting you connect to a variety of mixers, speaker systems, and more. The MiniDisc section has RCA, optical, and coaxial inputs as well for additional versatility. A front-panel headphone jack provides a convenient solution for monitoring. The unit offers PS/2 and RS-232C ports for wired control, and it also comes with a wireless remote for added convenience.
If you own a Tascam digital recorders & players and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Tascam MD-CD1MKIII Combination CD Player and MD-CD1MKIII in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Tascam MD-CD1MKIII Combination CD Player and MD-CD1MKIIIDownload user manual for Tascam MD-CD1MKIII Combination CD Player and MD-CD1MKIII
(PDF file, 2.6 MB)
Additional parameters of the Tascam MD-CD1MKIII Combination CD Player and MD-CD1MKIII:
Type MiniDisc Recorder/Player, CD Player
Compatible Discs MD: MiniDisc Format
CD: CD-DA (8/12cm), CD-ROM (8/12cm), CD/CD-R/CD-RW
Number of Channels MD: 2 Channels Stereo, 1 Channel Mono
CD: 2
Utilities CD: ISO9660 Level 1/2/ROMEO/JOLIET Format (CD Only)
Format MD: Magnetic Field Modulation Overwrite
CD: Audio CD (CD-DA), MPEG Audio Layer III (MP3), WAV
Recording Mode Stereo, Mono, LP2, LP4 (MD Only)
Recording Time 60 Min Disc: 60 mins Stereo, 120 mins Mono/LP2, 240 mins LP4
74 Min Disc: 74 mins Stereo, 148 mins Mono/LP2, 296 mins LP4
80 Min Disc: 80 mins Stereo, 160 mins Mono/LP2, 320 mins LP4

MD Only

Sampling Frequencies 44.1kHz (CD and MD)
Bit Rate 16-bit (CD Only)
Compression ATRAC (Adaptive Transform Acoustic Coding, MD Only)
Playback Sampling: 44.1kHz (MP3 and WAV)
Bit Rate: 32-320kbps or VBR MP3, 16-bit WAV
Input Impedance 22 kOhms (RCA)
Input Level -10dBV (0.32VRMS) Nominal
+6dBV (2.0VRMS) Maximum
-22dBV (0.08VRMS) Minimum
Digital Input Format: IEC-60958-3 S/PDIF, Conforming to SCMS
Sampling: 32 to 48kHz
Output Impedance 200 Ohms (RCA)
Output Level -10dBV (0.32VRMS) Nominal
+6dBV (2.0VRMS) Maximum
Digital Output Format: IEC-60958-3 S/PDIF, Conforming to SCMS
Headphone Output 20mW + 20mW (1kHz, 0.1%, 32 Ohms)
Connectors 1 x AC Power Input
1 x Stereo RCA MD Input
1 x Stereo RCA MD Output
1 x Stereo RCA CD Output
1 x Stereo RCA Common Output
1 x Optical S/PDIF MD Input
1 x Coaxial S/PDIF MD Input
1 x Optical S/PDIF MD Output
1 x Coaxial S/PDIF MD Output
1 x Optical S/PDIF CD Output
1 x Coaxial S/PDIF CD Output
1 x RS-232C D-Sub 9-Pin Control Port
1 x PS/2 Mini DIN Port (Front Panel)
1 x 1/4" Headphone Jack (Front Panel)
Frequency Response 20Hz - 20kHz ±0.5dB (All Modes, JEITA)
Signal to Noise Ratio 100dB or More (CD Playback, JEITA)
98dB or More (MD Playback, JEITA)
95dB or More (MD Recording/Playback, JEITA)
Total Harmonic Distortion (THD) 0.004 or Less (CD Playback, JEITA)
0.004 or Less (MD Playback, JEITA)
0.006 or Less (MD Recording/Playback, JEITA)
Dynamic Range 100dB or More (CD Playback, JEITA)
98dB or More (MD Playback, JEITA)
95dB or More (MD Recording/Playback, JEITA)
Channel Separation 90dB or More (CD Playback, JEITA)
90dB or More (MD Playback, JEITA)
83dB or More (MD Recording/Playback, JEITA)
Angle 5° or Less (Inclination Angle of Installation)
Operating Temperature 41 to 104° (5 to 40°C)
Power 120VAC, 60Hz
Power Consumption 22W
Dimensions (WxHxD) 19 x 3.7 x 12.1" (483 x 94 x 308 mm)
Weight 11.9 lb (5.4 kg)
Packaging Info
Package Weight 15.2 lb
Box Dimensions (LxWxH) 21.7 x 15.3 x 7.2"
The user manual for the Tascam MD-CD1MKIII Combination CD Player and MD-CD1MKIII can be downloaded in .pdf format if it did not come with your new digital recorders & players, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Tascam users keep a unique electronic library for Tascam digital recorders & playerss, where you can use our link to download the user manual for the Tascam MD-CD1MKIII Combination CD Player and MD-CD1MKIII.

The user manual lists all of the functions of the Tascam MD-CD1MKIII Combination CD Player and MD-CD1MKIII, all the basic and advanced features and tells you how to use the digital recorders & players. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Tascam service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Tascam MD-CD1MKIII Combination CD Player and MD-CD1MKIII. User manuals are also available on the Tascam website under Pro Audio - Recording - Digital Recorders & Players.



Discussion Question and answer discussion forum concerning user instructions and resolving problems with the Tascam MD-CD1MKIII Combination CD Player and MD-CD1MKIII

Post new comment to Tascam MD-CD1MKIII Combination CD Player and MD-CD1MKIII

Subject: Problem dividing on to MD
Date: 17.06.2016 11:17:16Author: Eddy
Hi,
I am having a problem with recording CD to mini disk.
I have 53 tracks on the Cd with 3.5 seconds of silence at the front and end of each track. I don't know why but each time I try to record on to the MD It come out as 1 track.... It doesn't divide automatically where as before I had no problems... Can anyone help?

Cheers
Reply
