User manual for Teac MC-D800 Stereo USB Sound System MC-D800-CH
- Manufacturer: Teac
- Basic description and contents of package
- Product classification: TVs & Entertainment - Home Audio Components - Turntables
- Safety instructions
- Startup and operation of the turntables
- Tips for setting up your Teac
- Settings and expert assistance
- Contact Teac service
- Troubleshooting
- Warranty information
- Price: 300 USD
|
We recommend checking out our discussion threads on the Teac MC-D800 Stereo USB Sound System MC-D800-CH,
which address similar problems with connecting and setting up Turntables Teac.
|
User manual for the Teac MC-D800 Stereo USB Sound System MC-D800-CH
The user manual for the Teac MC-D800 Stereo USB Sound System MC-D800-CH provides
necessary instructions for the proper use of the product TVs & Entertainment - Home Audio Components - Turntables.

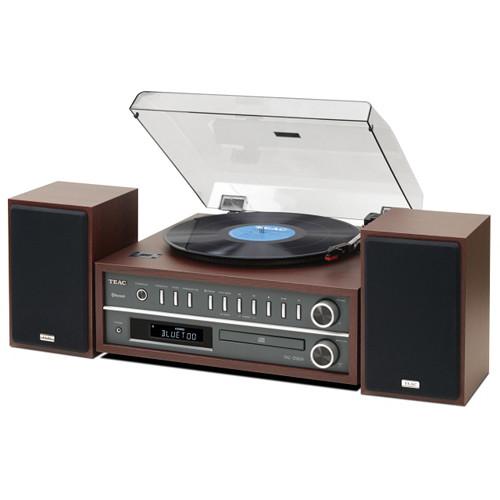

The cherry MC-D800 from Teac is an all-in-one sound system featuring a turntable, CD-player, AM/FM radio, Bluetooth connectivity, a USB port for flash drives, and detached stereo speakers. The turntable supports 33-1/3, 45, and 78 RPM records and features a Sapphire stylus, an auto-return tone-arm, and a rubber mat for the platter which absorbs vibrations and eliminates track skipping. An optional diamond stylus is available for 78 RPM records. The USB port is available from the top of the turntable section and allows the user to playback MP3/WMA files from a USB flash-drive.
|
If you own a Teac turntables and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Teac MC-D800 Stereo USB Sound System MC-D800-CH in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Teac MC-D800 Stereo USB Sound System MC-D800-CH:
| Bluetooth Version | 2.1 +EDR | | Supported Profiles | A2DP, AVRCP | | Supported Codecs | SBC | | Bluetooth Class | Class 2 (Range: approx. 10m / 33 ft.) | | Motor Type | DC servo motor | | Drive Type | Belt drive | | RPM | 33-1/3, 45, 78 RPM | | Wow and Flutter | 0.35% or less | | Signal to Noise Ratio | 50 dB or more | | Cartridge | Ceramic stereo type | | Stylus | Sapphire (STL-103) | | Tuner Type | PLL synthesized tuner | | AM/FM Presets | AM: 20 presets
FM: 20 presets | | Frequency Range | AM: 87.5 to 108.0 MHz
FM: 530 to 1,710 kHz | | Supported Disc Types | CD-DA, CD-R, CD-RW | | Supported Disc Formats | PCM (CD-DA), MP3, WMA | | Audio CD Player | 16-bit, 44.1 kHz | | Frequency Response | 20 Hz to 20 kHz | | Signal to Noise Ratio | 70 dB or more | | MP3 | Format: .mp3
Sampling Frequency: 16 to 48 kHz
Bit Rate: 8 to 320 kbps | | WMA Bit-Rates | Format: .wma (DRM not supported)
Sampling Frequency: 32, 44.1, 48 kHz
Bit Rate: 8 to 320 kbps | | USB Port | USB A | | Supported Media | USB flash memory | | Supported Formats | MP3, WMA | | MP3 | Format: .mp3
Sampling Frequency: 16 to 48 kHz
Bit Rate: 8 to 320 kbps | | WMA Bit-Rates | Format .wma (DRM not supported)
Sampling Frequency: 32, 44.1, 48 kHz
Bit Rate: 8 to 320 kbps | | Amplifier (Power) | 10 W + 10 W (8 ohms) | | Frequency Response | 50 Hz to 20 kHz | | Input Sensitivity and Impedance | 500 mV / 20 kOhms | | Speakers | Type: Rear bass-reflex
Tweeter: 1.5" / 3.8 cm
Woofer: 3.5" / 8.9 cm
Impedance: 8 ohms
Speaker Cable: 9' / 2.7 m (fixed to the speaker) | | Audio Input | Aux Input: Stereo RCA jack | | Audio Output | Aux Output: Stereo RCA
Headphone: 1/8" / 3.5 mm stereo mini-jack | | Power | US/Canada: 120 VAC, 60 Hz
UK/Europe: 230 VAC, 50 Hz | | Power Consumption | 20 W | | Dimensions (W x H x D) | Main Unit: 15.7 x 8.1 x 15.2" / 400 × 206 × 386 mm
Speaker: 5.7 x 8.8 x 6.1" / 144 x 224 x 154 mm | | Weight | Main Unit: 14.6 lb / 6.6 kg
Speaker: 6.1 lb / 2.8 kg | | Package Weight | 28.0 lb | | Box Dimensions (LxWxH) | 24.0 x 19.5 x 12.5" | |
The user manual for the Teac MC-D800 Stereo USB Sound System MC-D800-CH can be downloaded in .pdf
format if it did not come with your new turntables, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Teac users keep a unique electronic library
for Teac turntabless,
where you can use our link to download the user manual for the Teac MC-D800 Stereo USB Sound System MC-D800-CH.
The user manual lists all of the functions of the Teac MC-D800 Stereo USB Sound System MC-D800-CH,
all the basic and advanced features and tells you how to use the turntables.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Teac service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Teac MC-D800 Stereo USB Sound System MC-D800-CH. User manuals are also
available on the Teac website under TVs & Entertainment - Home Audio Components - Turntables.
Question and answer discussion forum concerning user instructions and resolving problems with the Teac MC-D800 Stereo USB Sound System MC-D800-CH
Post new comment to Teac MC-D800 Stereo USB Sound System MC-D800-CH
| Subject: Speaker Output | | Date: 01.04.2022 21:41:11 | Author: Gavin Nicholson | Hi anyone, can you assist please. I cannot get any output from the speakers. The unit is working as the vinyl plays through the inbuilt speaker. However the plug-in speakers aren’t giving any output.
Volume knob works, positive side plugged in properly.
Not sure what else to do | | Reply |
