User manual Teac SL-D930 2.1-Channel Bluetooth Speaker System SL-D930-W

Operating instructions and pdf manual for use - Teac SL-D930 2.1-Channel Bluetooth Speaker System SL-D930-W User manual, User manual Teac SL-D930 2.1-Channel Bluetooth Speaker System SL-D930-W, Teac, SL-D930, 2.1-Channel, Bluetooth, Speaker, System


User manual for Teac SL-D930 2.1-Channel Bluetooth Speaker System SL-D930-W

Teac SL-D930 2.1-Channel Bluetooth Speaker System SL-D930-W
  • Manufacturer: Teac
  • Basic description and contents of package
  • Product classification: TVs & Entertainment - Tabletop Audio - Tabletop Radios
  • Safety instructions
  • Startup and operation of the tabletop radios
  • Tips for setting up your Teac
  • Settings and expert assistance
  • Contact Teac service
  • Troubleshooting
  • Warranty information
  • Price: 200 USD

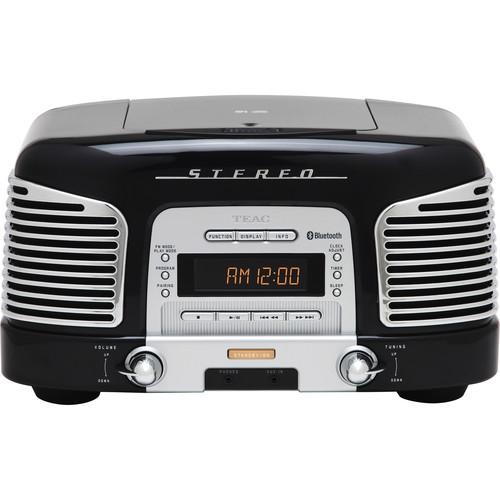

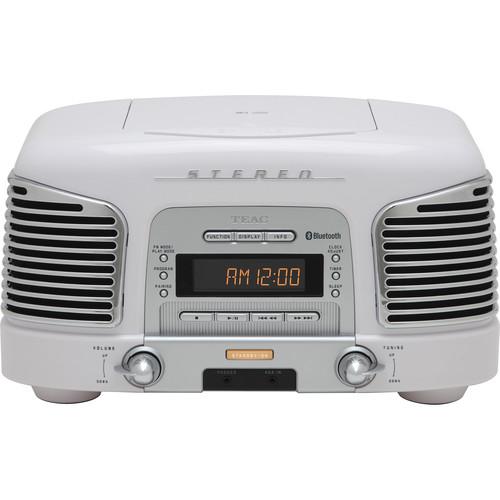

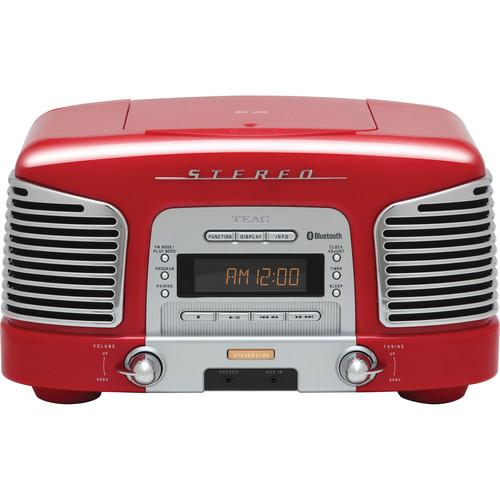

Teac SL-D930 2.1-Channel Bluetooth Speaker System SL-D930-W Teac SL-D930 2.1-Channel Bluetooth Speaker System SL-D930-W Teac SL-D930 2.1-Channel Bluetooth Speaker System SL-D930-W
Click to enlarge image

We recommend checking out our discussion threads on the Teac SL-D930 2.1-Channel Bluetooth Speaker System SL-D930-W, which address similar problems with connecting and setting up Tabletop Radios Teac.



User manual for the Teac SL-D930 2.1-Channel Bluetooth Speaker System SL-D930-W

The user manual for the Teac SL-D930 2.1-Channel Bluetooth Speaker System SL-D930-W provides necessary instructions for the proper use of the product TVs & Entertainment - Tabletop Audio - Tabletop Radios.

The Teac SL-D930 2.1-Channel Bluetooth Speaker System in white allows you to enjoy high-quality sound from a variety for audio sources. This retro-styled 2.1-channel speaker system consists of dual front speakers and a built-in down-firing subwoofer, delivering 20W of total power. In addition to wireless Bluetooth connectivity, the SL-D930 features a top-loading CD player and a digital AM/FM tuner.

This system's 3.5mm auxiliary interface allows you to easily connect wired audio sources. There's even a headphone output onboard for personal listening. A remote control is included with the SL-D930 for streamlined operation. At just 13.4" wide, the Teac SL-D930 features a compact desktop design.
If you own a Teac tabletop radios and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Teac SL-D930 2.1-Channel Bluetooth Speaker System SL-D930-W in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Teac SL-D930 2.1-Channel Bluetooth Speaker System SL-D930-W:
Specifications
    Amplifier
    Type Class-D digital
    Power Output Front: 2 x 5 W (right / left)
    Subwoofer: 1 x 10 W
    Speaker System
    Front Speakers 2 x 2.6" (65 mm), 4 ohms, closed type
    Subwoofer 1 x 3.1" (80 mm), 8 ohms, bass-reflex type
    Bluetooth
    Version 3.0
    Class Class 2
    Support Supported Profile: A2DP, AVRCP
    Supported Codec: SBC
    Contents Protection System: SCMS-T
    CD Section
    Supported Discs CD-DA 4.7 and 3.1" (12 and 8 cm), CD-R, CD-RW
    Supported Formats Audio CD, MP3, WMA
    Audio CD Player 44.1 kHz, 16-bit
    File Types Supported MP3: MPEG 1/2 Audio Layer-3
    Extension: .mp3
    Sampling Frequency: 16 k, 22.05 k, 24 k, 32 k, 44.1 k, 48 kHz
    Bit-Rate: 16 k to 320 kbps
    WMA: Windows Media Audio Standard (DRM not supported)
    Extension: .wma
    Sampling Frequency: 16 k, 2.05 k, 24 k, 32 k, 44.1 k, 48 kHz
    Bit-Rate: 16 k to 320 kbps
    Max Number of Folders: 255
    Max Number of Files: 999
    Frequency Response 20 to 20,000 Hz (+/- 10)
    Wow and Flutter Below measureable limit
    Tuner Section
    Tuner Type PLL Synthesized Tuner
    Number of Presets 20 AM + 20 FM
    Frequency Range FM: 87.5 to 108.0 MHz
    AM: 530 to 1,720 kHz
    Ports
    Inputs 1 x 1/8" (3.5 mm) Auxiliary Input
    Outputs 1 x 1/8" (3.5 mm) Headphone Output
    General
    Power Requirements 120 VAC, 60 Hz
    Power Consumption 20 W
    Dimensions (WxHxD) 13.4 x 7.5 x 9.1" (340 x 190 x 230 mm)
    Weight 14.6 lb (6.6 kg)
    Packaging Info
    Package Weight 13.6 lb
    Box Dimensions (LxWxH) 16.0 x 11.0 x 10.0"
    The user manual for the Teac SL-D930 2.1-Channel Bluetooth Speaker System SL-D930-W can be downloaded in .pdf format if it did not come with your new tabletop radios, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Teac users keep a unique electronic library for Teac tabletop radioss, where you can use our link to download the user manual for the Teac SL-D930 2.1-Channel Bluetooth Speaker System SL-D930-W.

    The user manual lists all of the functions of the Teac SL-D930 2.1-Channel Bluetooth Speaker System SL-D930-W, all the basic and advanced features and tells you how to use the tabletop radios. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Teac service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Teac SL-D930 2.1-Channel Bluetooth Speaker System SL-D930-W. User manuals are also available on the Teac website under TVs & Entertainment - Tabletop Audio - Tabletop Radios.
