User manual for the TeachLogic IRF-2150 Forum 232 Wireless Microphone IRF-2150/WM4

The user manual for the TeachLogic IRF-2150 Forum 232 Wireless Microphone IRF-2150/WM4 provides necessary instructions for the proper use of the product A/V Presentation - Assistive Listening - Assistive Listening Systems.

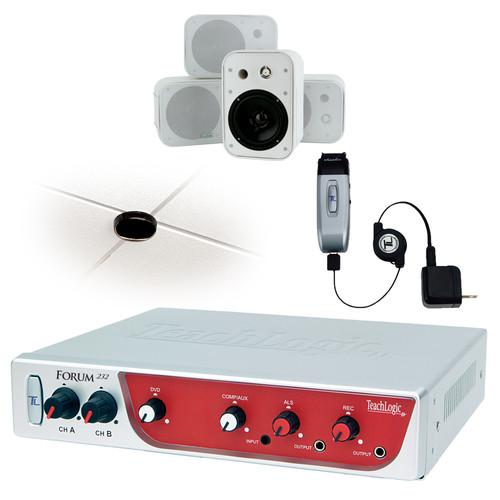

The IRF-2150 Forum 232 Wireless Microphone System with Four Wall Mount Speakers from TeachLogic is a sound-field system designed for teachers in a classroom environment. The IRF-2150 features a Digital Feedback Guard (DFG) to eliminate acoustical feedback. The wireless Sapphire microphone has a capsule which allows maximum gain before feedback. It has a 50W Digital Hybrid Class D amplifier. The Forum 232 allows for remote adjustment of inputs via the RS-232 wall panel controller. The unit has two infrared wireless microphone receivers which can be used simultaneously. The IRF-2150 provides two auxiliary line inputs for multi-media integration with even distribution of sound for the audio in the classroom. The Forum 232 has a Line level output for lesson capture and another output for Assistive Listening System (ALS).

The Forum 232 comes with the Sapphire microphone transmitter and a rechargeable lithium-ion battery. The Sapphire transmitter can be worn with a lanyard or clipped directly to your neckline collar. It has high level output, reliable connectivity and great definition. With a tap on the power button, the microphone mutes for private conversation-tap again to restore to normal operation. The auxiliary input allows wireless playback of your iPod. A three-position slide switch provides selection of low, medium, or high microphone volume levels.

The Forum 232 IRF-2150 includes four two-way wall mount speakers, a ceiling sensor for IR connectivity and a plug-in battery charger.
If you own a TeachLogic assistive listening systems and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the TeachLogic IRF-2150 Forum 232 Wireless Microphone IRF-2150/WM4 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the TeachLogic IRF-2150 Forum 232 Wireless Microphone IRF-2150/WM4:
Specifications
    Receiver
    Receiver Input Infrared FM
    Modulation FM Wide-band
    Reception Frequencies Channel A: 2.08 MHz Channel B: 2.54 MHz
    Infra-red Wavelength 850 nm
    Tone Signal Channel A: 32.768 kHz
    De-Emphasis 50 μs
    Frequency Response 40 Hz - 18 kHz, ± 3 dB
    S/N Ratio › 65 dB
    Total Harmonic Distortion (THD) ‹1% @ 1 kHz
    Nominal Deviation ± 10 kHz
    Maximum Deviation ± 25 kHz
    External Sensor 2 x RCA inputs
    Coverage Area 1,600 ft²
    AUX Inputs 1 x DVD, Line Level, Dual RCA with +10 dB gain control 1 x Aux input with front and rear panel 3.5 mm
    Line Outputs 2 x 3.5 mm jack with gain control, front panel
    Equalization Three-band digital ±12 dB
    Output Power 2 x digital amplifiers, 50 W total (RMS), 25 W each
    Output Impedance 4 Ω min. per channel
    Output Connection 1 x Phoenix connector
    Power Supply 19 VDC / 3.4 A CE, CSA and UL Listed
    Dimensions (W x H x D) 8.5 x 1.75 x 7.5" (21.6 x 4.4 x 19.1 cm)
    Weight 1.08 lb (0.49 kg)
    Microphone
    Transmitter Carrier: Infrared
    Transmission Frequency 2.08 MHz and 2.54 MHz
    Battery 3.7 VDC, 620 mAh Lithium-Ion
    Speakers
    Frequency Range 80 Hz to 16 kHz, ± 6 dB
    Power 30 W continuous
    Impedance 8 Ω
