User manual for the TeachLogic IRM-4650 Maxim II Receiver with Sapphire IRM-4650

The user manual for the TeachLogic IRM-4650 Maxim II Receiver with Sapphire IRM-4650 provides necessary instructions for the proper use of the product A/V Presentation - Assistive Listening - Assistive Listening Systems.

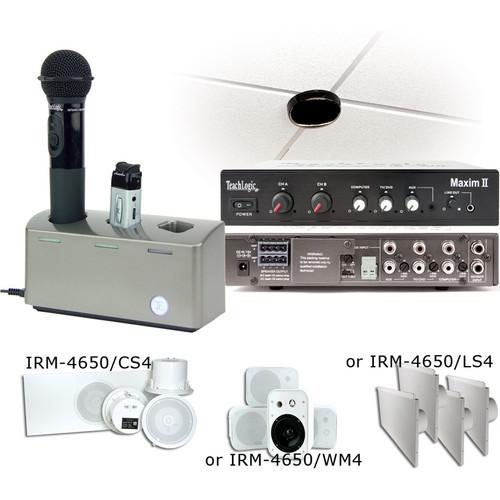

The TeachLogic IRM-4650 Maxim II Receiver with Sapphire Transmitter, Handheld Microphone and Plug-In / Drop-In Battery Charger is a complete sound-field system for installation in a classroom or similar environment.

The system package includes the following components: the Maxim II IMA-420 base station with two 16-watt amplifiers and two infrared receivers with switching power supply; the Sapphire Pendant Infrared Transmitter / Microphone comes equipped with a rechargeable Lithium-ion battery and unidirectional microphone for true voice reproduction and good feedback suppression; the Handheld Infrared Microphone / Transmitter comes equipped with NiMH batteries; the BRC-15 Sapphire Charger connects the Sapphire Transmitter for charging via USB or wall adapter; the BRC-101 drop-in Charger is designed for use with the Handheld IRH-35 Transmitter. This system also includes the ICS-55 Ceiling Dome Sensor with 50' (15.24m) of plenum-rated cable and a 100' (30.48m) of plenum-rated 18 gauge speaker cable.
If you own a TeachLogic assistive listening systems and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the TeachLogic IRM-4650 Maxim II Receiver with Sapphire IRM-4650 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the TeachLogic IRM-4650 Maxim II Receiver with Sapphire IRM-4650:
Receiver
Receiver Input Ports Infrared FM
Modulation FM wide-band
Frequencies Reception: Channel A: 2.08 MHz
Channel B: 2.54 MHz
Infrared Wavelength: 850 nm
Tone Signal Channel A: 32.768 kHz
De-Emphasis 50 μs
Frequency Response 40 Hz, -18 kHz, ± 3dB
S/N Ratio >65 dB
THD <1% @1 kHz
Nominal Deviation ± 10 kHz
Maximum Deviation ± 25 kHz
Sensor Input External: 2, RCA
Connectivity 2,500 sq. ft. (232.26 sq. m)
AUX Input Three aux, line level, Dual RCA with + 15 dB gain control
Line Output 3.5 mm with gain control, front panel
Input Page Over-Ride: Off, 25 V, 70 V, 100 V
Equalization Five-Band ±12 dB
Output Power Two Amplifiers, 16 W ea. (RMS) 32 W total (RMS)
Output Impedance 4 Ω
Output Connection 2 Phoenix Connectors
Power Supply 15 VDC / 2.8 A / 42 W
Dimensions (W x H x D) 8.50 x 1.75 x 7.50" (215.90 x 44.45 x 190.50 mm)
Weight 2.65 lb (1.20 kg)
Transmitter
Transmission Carrier: Infrared
Frequencies: 2.08 MHz & 2.54 MHz
Channel Field switchable A or B
Transmitting Diodes 6
Modulation FM wide-band
Frequency Pilotone: 32.768 kHz
Peak Deviation ± 25 kHz
Operating Range 1500 sq. ft. (139.35 sq. m) 60' (18.28m) line of sight
Battery Blue: full
Purple: medium
Red: low
Flashing Red: very low battery
Battery Life Used: Lithium-ion (3.7V / 620mAh)
Life: Approximately 7 hours / charge
Charger External Power: +5 VDC, Micro USB connector
Transmission Angle 180° conical
External Power Switch (Push): On / off
Mute Switch (Push): On / off
Mic Switch (3 position): + 6db, Normal, - 6db
Auxiliary Volume / Gain: Increase, decrease
Channel Select: (A or B) in battery compartment
External Aux Input: 3.5mm stereo line level
Dimensions (W x D x H) 3.62 x 1.25 x 0.75" (91.94 x 31.75 x 19.05 mm)
Weight 1.4 oz (85.0 g) with battery
Microphone
Transmission Carrier: Infrared
Frequencies: 2.08 MHz & 2.54 MHz
Channel Field switchable
Transmitting Diodes 10
Modulation FM wide-band
Frequency Pilotone: 32.768 kHz
Peak Deviation ± 25 kHz
Operating Range 2500 sq. ft. (232.26 sq. m) 60' (18.28 m)
Power Switch On/Off (slide)
Battery Charge Display Green (useable charge) / Red (needs charging) (LED)
Battery Life Approximately 7 hours / charge
Dimensions 2.12" (53.84 mm) diameter head
1.43" (36.32 mm) diameter body
9.62" (244.34 mm) height
Weight 10.3 oz (292.0 g) with battery
Battery
Charging Port (Single): Handheld
Battery Charge Display Red LED: Batteries being charged / Solid Green LED: Batteries fully charged
Power Supply 12 VDC / 0.5 A
Dimensions (W x D x H) 5.00 x 3.75 x 1.50" (127.00 x 95.25 x 38.10 mm)
Weight 7.4 oz (209.7 g)
The user manual for the TeachLogic IRM-4650 Maxim II Receiver with Sapphire IRM-4650 can be downloaded in .pdf format if it did not come with your new assistive listening systems, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other TeachLogic users keep a unique electronic library for TeachLogic assistive listening systemss, where you can use our link to download the user manual for the TeachLogic IRM-4650 Maxim II Receiver with Sapphire IRM-4650.

The user manual lists all of the functions of the TeachLogic IRM-4650 Maxim II Receiver with Sapphire IRM-4650, all the basic and advanced features and tells you how to use the assistive listening systems. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from TeachLogic service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the TeachLogic IRM-4650 Maxim II Receiver with Sapphire IRM-4650. User manuals are also available on the TeachLogic website under A/V Presentation - Assistive Listening - Assistive Listening Systems.
