User manual for the Telefunken AR-51 Multi-Pattern Tube Condenser Microphone AR-51
The user manual for the Telefunken AR-51 Multi-Pattern Tube Condenser Microphone AR-51 provides
necessary instructions for the proper use of the product Pro Audio - Recording - Tube.

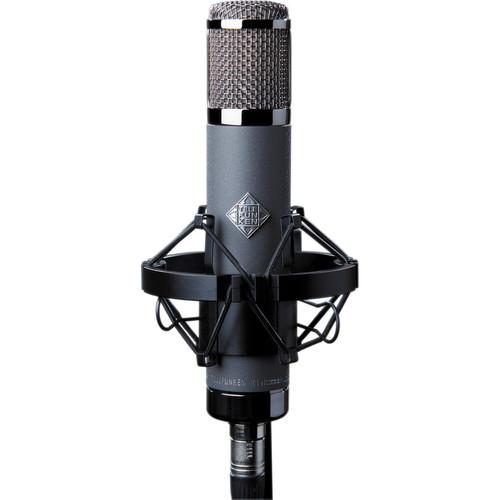

The AR-51 Multi-Pattern Tube Condenser Microphone from Telefunken provides a smooth mid-range, open top end, and a well-balanced low-frequency translation that make it a great choice on anything from vocals to drums to acoustic guitar and even saxophone.
The AR-51 features the TK51D capsule, a 34mm dual-membrane, edge-terminated design. This larger surface area provides an extended low end and a smoother, more open high end. This capsule brings the AR-51 sonically closer to the revered sound of the edge-terminated CK12 capsule. Additionally, the AR-51 takes the amplifier electronics of the C12 and ELA M 251E microphones. The core of this amplifier is a NOS ECC81 vacuum tube, which is coupled with the same German-built output transformer as the C12 and the ELA M 251E.
The remote pattern selector, located on the power supply, provides 9 different polar patterns, giving the user a myriad of choices for how to record the source sound in a manner that will best complement their production.
|
If you own a Telefunken tube and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Telefunken AR-51 Multi-Pattern Tube Condenser Microphone AR-51 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Telefunken AR-51 Multi-Pattern Tube Condenser Microphone AR-51:
| Operating Principle | Pressure Gradient | | Transducer | Condenser | | Tube | Yes | | Polar Pattern | Cardioid, Figure 8, Omnidirectional | | Frequency Range | 20 Hz to 20 kHz | | Equivalent Noise Level | 8 dB A-Weighted | | Maximum SPL | 128 dB SPL | | Impedance | 250 ohms | | Sensitivity | 13 mV/PA | | Output Connectors | 3-Pin XLR, 7-Pin XLR | | Operating Current Consumption | 140 mA | | THD | < 0.2% | | Length | 9.49" (241 mm) | | Diameter | 1.75" (44.45 mm) | | Weight | 26.98 oz (765 g) | | Package Weight | 10.95 lb | | Box Dimensions (LxWxH) | 17.4 x 11.3 x 3.4" | |
The user manual for the Telefunken AR-51 Multi-Pattern Tube Condenser Microphone AR-51 can be downloaded in .pdf
format if it did not come with your new tube, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Telefunken users keep a unique electronic library
for Telefunken tubes,
where you can use our link to download the user manual for the Telefunken AR-51 Multi-Pattern Tube Condenser Microphone AR-51.
The user manual lists all of the functions of the Telefunken AR-51 Multi-Pattern Tube Condenser Microphone AR-51,
all the basic and advanced features and tells you how to use the tube.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Telefunken service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Telefunken AR-51 Multi-Pattern Tube Condenser Microphone AR-51. User manuals are also
available on the Telefunken website under Pro Audio - Recording - Tube.
