User manual for the Telex BTR-1 - One-to-One UHF Intercom Base Station F.01U.146.259

The user manual for the Telex BTR-1 - One-to-One UHF Intercom Base Station F.01U.146.259 provides necessary instructions for the proper use of the product Pro Audio - Location Sound - Base Stations.

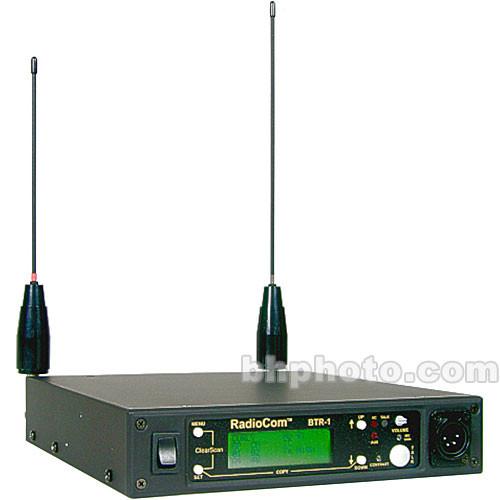

The Telex BTR-1 is a unique professional UHF wireless intercom base station system with a 1-to-1 (one base station to one belt pack) full-duplex, digitally encrypted design, for use in sports or commercial applications.
If you own a Telex base stations and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Telex BTR-1 - One-to-One UHF Intercom Base Station F.01U.146.259 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Telex BTR-1 - One-to-One UHF Intercom Base Station F.01U.146.259:
General System
System Modulation FM
Frequency Range 482 - 608 MHz in 18 MHz TX/RX Bands
614 - 746 MHz in 18 MHz TX/RX Bands
Operating Range Up to 1000'(Line of Sight)
Tuning 0.005%, Synthesized IF's
Power 12-15VAC @1 Amp
Battery Life Not Applicable
Charging Time Not Applicable
FCC License Part 74, B5DM519
License Required
Transmitter
Output 50mW typical (high)
5mW (normal)
Deviation Complies with FCC 74.861
Modular Distortion <1% @full deviation
Receiver
Sensitivity <0.8 uV for 12 dB SINAD
IF Bandwidth Not Specified by Manufacturer
Image Rejection >70dB
Controls and Indicators Front Panel:
1 x Power Switch
2 x Menu and Set Buttons
2 x Up and Down Buttons
1 x Contrast Adjust Trim
1 x Talk Button
1 x Talk Light
1 x Microphone Gain Trim
1 x Auxiliary Peak Level LED
1 x Peak Intercom Level In/Out LED
1 x Headset Volume Control
1 x Backlit LCD Display
Connectors Front Panel:
1 x 4-pin Male XLR Telex Headset Connector*
Rear Panel:
2 x Female Color-Coded TNC Transmit/Receive Connectors
4 x Male/Female 3-pin XLR 2-Wire Intercom Connectors
2 x 15-pin D-Sub Loop Thru
1 x RJ-11 4-Wire Intercom Port
1 x RJ-11 Auxiliary Audio Connector
2 x RJ-45 Remote CAN Bus Connectors
1 x Phoenix Plug Relay Connector 1 x IEC Power Receptacle
*Also available as 4-pin Female XLR for RTS Headsets
Antenna 2 x 1/2 Wave, TNC Connector
Dimensions 8.25 x 1.7 x 9" (209 x 44 x 229mm)
Weight 3.8 lb (1.6 kg)
The user manual for the Telex BTR-1 - One-to-One UHF Intercom Base Station F.01U.146.259 can be downloaded in .pdf format if it did not come with your new base stations, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Telex users keep a unique electronic library for Telex base stationss, where you can use our link to download the user manual for the Telex BTR-1 - One-to-One UHF Intercom Base Station F.01U.146.259.

The user manual lists all of the functions of the Telex BTR-1 - One-to-One UHF Intercom Base Station F.01U.146.259, all the basic and advanced features and tells you how to use the base stations. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Telex service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Telex BTR-1 - One-to-One UHF Intercom Base Station F.01U.146.259. User manuals are also available on the Telex website under Pro Audio - Location Sound - Base Stations.
