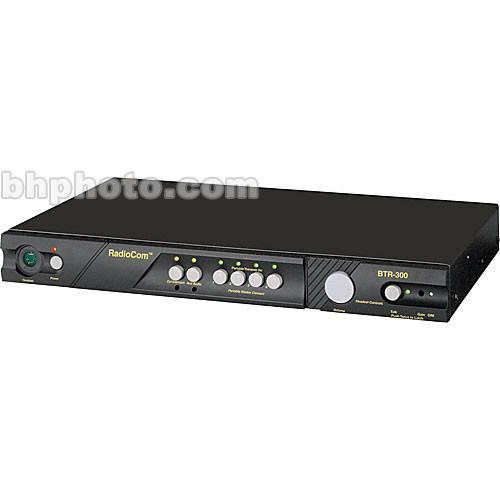

The Telex BTR-300 is a VHF wireless intercom Base Station, featuring simultaneous, full-duplex support of up to 4 remote stations and 16 beltpack transceivers, and features a 2000' (beltpack to beltpack) operating range. The higher VHF frequency allocation and advanced front-end RF filtering have been acquired and designed to avoid DTV operating bands and minimize localized RF interference on location.
If you own a Telex base stations and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Telex BTR-300 - VHF Wireless Intercom Base Station F.01U.127.383 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Telex BTR-300 - VHF Wireless Intercom Base Station F.01U.127.383:
System Modulation FM
Frequency Range 150 - 216 MHz
Operating Range Up to 2000'(line of sight, beltpack to beltpack)
Tuning Crystal Controlled, 0.005%
Power 12 - 15 V AC/DC
Battery Life Not Applicable
Charging Time Not Applicable
FCC License Notification under FCC Part 15
Output 50 mW Typical
Deviation 3 kHz
Modular Distortion <1% at Rated Output
Sensitivity <0.5 uV for 12 dB SINAD
IF Bandwidth Not Specified by Manufacturer
Image Rejection 65 dB or better
Controls and Indicators Front Panel:
1 x Power On/Off Switch
1 x Power On LED Indicator
1 x External Intercom Switch
1 x External Intercom Level Control
1 x External Intercom LED Indicator
1 x Auxiliary Audio Enable Switch
1 x Auxiliary Audio Level Control
1 x Auxiliary Audio LED Indicator
1 x Headset Mic On Switch
1 x Headset Volume Control Knob
1 x Local Push-to-Talk LED Indicator
1 x Local Microphone Gain Control
1 x Overmodulation LED Indicator
4 x Portable Transmit/Station Enable Switches
4 x Portable Enable LED Indicators
Rear Panel:
1 x 3-Position Transmit Switch
1 x Headset Microphone Select Switch
1 x External Speaker Volume Control
Connectors Front:
1 x 4-pin XLR Male Telex Headset Connector*
Rear:
2 x Color-Coded Transmit/Receive Antenna Connectors
1 x 3-pin XLR Female Auxiliary Input
1 x 3-pin XLR Male Auxiliary Output
1 x 3-pin XLR Female Intercom In
1 x 3-pin XLR Male Intercom Out
1 x 1/4" 8 Ohm External Speaker Out
1 x 12 V AC/DC Power In
*Also available with 4-pin XLR Female Connector for RTS Headsets
Antenna 2 x 5/8 Wave*
SO239 Connector on Chassis
*Transmit and Receive
Dimensions 15.75 x 1.75 x 10.5" (400 x 45 x 260mm)
Weight 4.5 lb (2 kg)
Packaging Info
Package Weight 10.1 lb
