User manual Telex SM-2 - Personal Listening System - I F.01U.146.414

Operating instructions and pdf manual for use - Telex SM-2 - Personal Listening System - I F.01U.146.414 User manual, User manual Telex SM-2 - Personal Listening System - I F.01U.146.414, Telex, SM-2, Personal, Listening, System, I, F.01U.146.414,


User manual for Telex SM-2 - Personal Listening System - I F.01U.146.414

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.
Telex SM-2 - Personal Listening System - I F.01U.146.414
  • Manufacturer: Telex
  • Basic description and contents of package
  • Product classification: Pro Audio - Live Sound - Personal Monitoring
  • Safety instructions
  • Startup and operation of the personal monitoring
  • Tips for setting up your Telex
  • Settings and expert assistance
  • Contact Telex service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Telex SM-2 - Personal Listening System - I F.01U.146.414, which address similar problems with connecting and setting up Personal Monitoring Telex.



User manual for the Telex SM-2 - Personal Listening System - I F.01U.146.414

The user manual for the Telex SM-2 - Personal Listening System - I F.01U.146.414 provides necessary instructions for the proper use of the product Pro Audio - Live Sound - Personal Monitoring.

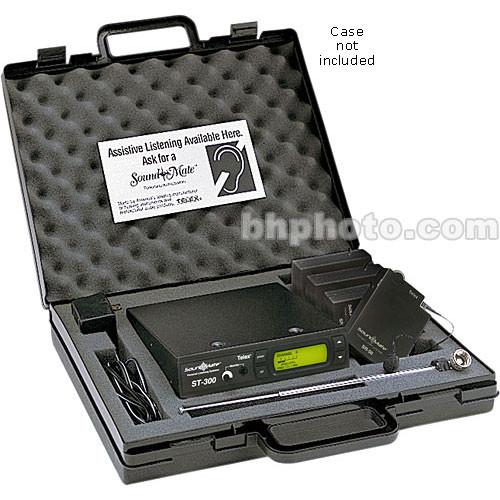

The Telex Soundmate SM-2 is a portable, battery operated, VHF wireless personal monitoring system, notable for it's ease of operation and light weight of the principal components, clarity of sound, and a 300' operating range.
If you own a Telex personal monitoring and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Telex SM-2 - Personal Listening System - I F.01U.146.414 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Telex SM-2 - Personal Listening System - I F.01U.146.414:
System General System
RF Carrier Frequency Range 72.1 - 75.4 MHz
Selectable Channels 17
Compatible Channels 1
Operating Range 300' (91 m)
Frequency Response 100 Hz - 10 kHz
Signal-to-Noise Ratio Normal: 58 dB
EDR Enabled: 77 dB
Channel Separation Not Specified by Manufacturer
Transmitter ST-300 Transmitter
RF Output Power Normal: 25K µV/m @ 3 m
High: 80K µV/m @ 3 m
Frequency Selection Front Panel Set/Increment/Decrement Buttons
Frequency Indicators LED display, channel letters
Antenna Omnidirectional Telescoping Antenna
Audio Input Connectors 1 x 1/4" TS Phone, Unbalanced
1 x 3-pin XLR Female, Balanced
Nominal Input Level Not Specified by Manufacturer
Maximum Input Level 42 dB
Input Pad Switch No
Phantom Power Protection No
Loop In/Out Connectors No
Loop I/O Nominal Input Level No
Loop I/O Maximum Input Level No
Limiting Built-In, Fixed Threshold
Power Requirements 13-20 VDC or 12 VAC
115 VAC, 60 Hz @ 30mA Plug-In Wallpack Power Supply
Weight Not Specified by Manufacturer
Dimensions 1.75 x 7.5 x 5.9" (45 x 192 x 150mm)
Receiver SR-50 Receiver
RF Indicator No
Frequency Selection Fixed, Single Channel
Antenna Omnidirectional in earphone/headphone cord
Power Requirements 2 x AA Batteries
2 x NiMH batteries
2 x Nickel-Cadmium batteries
Battery Life Alkaline: 30 hrs.
2 x NiMH: 20 hrs.
Nickel-Cadmium: 10 hrs.
Battery Status Indicator No
Limiting No
Equalization No
Personal Mix Control Top Panel On/Off/ Volume Knob
Weight Not Specified by Manufacturer
Dimensions 4 x 2.75 x 1" (101 x 70 x 25mm)
SEB-1 Earphones
Transducer Type Telethin Driver
Sensitivity (0 VU) Not Specified by Manufacturer
Impedance 32 Ohms
Cable Length 3'(1 m)
Connector Type 1/8" Mini Plug
Ear Inserts Foam
Frequency Response 100 Hz - 10 kHz
Packaging Info
Package Weight 4.65 lb
Box Dimensions (LxWxH) 18.3 x 11.5 x 3.9"
The user manual for the Telex SM-2 - Personal Listening System - I F.01U.146.414 can be downloaded in .pdf format if it did not come with your new personal monitoring, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Telex users keep a unique electronic library for Telex personal monitorings, where you can use our link to download the user manual for the Telex SM-2 - Personal Listening System - I F.01U.146.414.

The user manual lists all of the functions of the Telex SM-2 - Personal Listening System - I F.01U.146.414, all the basic and advanced features and tells you how to use the personal monitoring. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Telex service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Telex SM-2 - Personal Listening System - I F.01U.146.414. User manuals are also available on the Telex website under Pro Audio - Live Sound - Personal Monitoring.
