User manual for the Tely Labs telyHD Pro Audio Pod 02-THPAB-01-01
The user manual for the Tely Labs telyHD Pro Audio Pod 02-THPAB-01-01 provides
necessary instructions for the proper use of the product A/V Presentation - Video Conferencing - Video Conferencing Cameras.

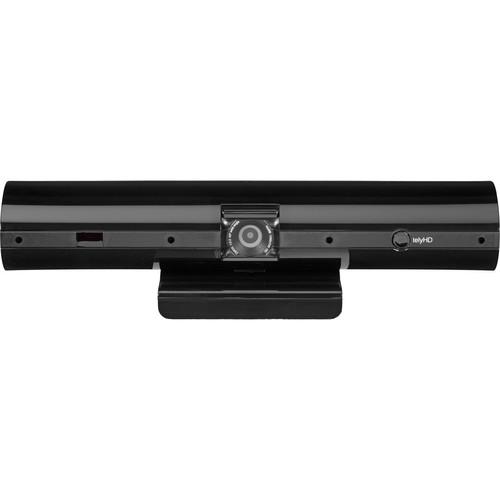

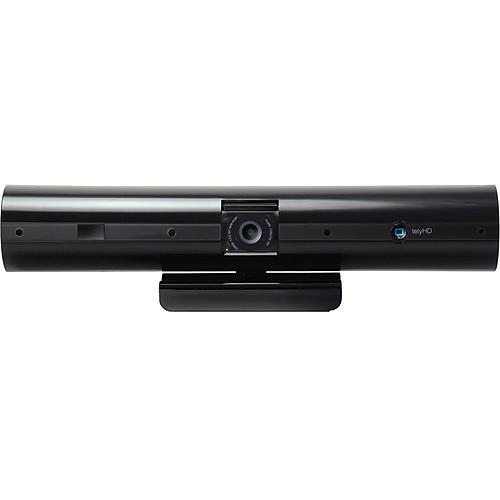

This is a standards-based video and audio conferencing system from Tely Labs. It includes the telyHD Pro webcam system and the Audio Pod tabletop mic and speaker. The telyHD Pro is designed to install right on top of your conference room display while the Audio Pod sits on the conference room table. The two units connect via an included 15 ft USB cable. The telyHD Pro itself features a mic, and can be set up to deliver audio via the display's speakers, but the Audio Pod allows for a more direct interactive experience, as its placed in close proximity to the meeting participants. The Audio Pod is made by Jabra (model # Jabra 410).
This system is ideal for huddle rooms, remote offices, and large, mid-size, and small conference rooms. The telyHD Pro connects to your display using an HDMI cable, also included, and can be connected to the internet via Ethernet or Wi-Fi. It displays conference video and shared content in resolutions up to 720p HD. You can seamlessly connect to various video conferencing sites, including Skype.
|
If you own a Tely Labs video conferencing cameras and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Tely Labs telyHD Pro Audio Pod 02-THPAB-01-01 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Tely Labs telyHD Pro Audio Pod 02-THPAB-01-01:
| Communications | SIP, telyCloud VMM, Skype, Blue Jeans Network
100 Kbps - 1.5 Mbps
10/100 Base-T RJ-45
802.11n Wi-Fi (b/g/n compatible) 2.4 GHz with WEP, WPA and WPA2 support | | Content Sharing | H.264 at up to 720p, 15 fps | | Video Standards | H.264, H.263 | | Video Output | HDMI 720p to any HDMI display | | Video Resolutions | SIP Resolutions:
H.264:
1280 x 720, 24 fps: 1200 Kbps
960 x 544, 30 fps: 800 Kbps
848 x 480, 30 fps: 500 Kbps
352 x 288, 30 fps: 200 Kbps
176 x 144, 30 fps: 100 Kbps
H.263:
704 x 576 (4CIF), 30 fps: 800 Kbps
352 x 288 (CIF), 30 fps: 300 Kbps
176 x 144 (QCIF), 30 fps: 200 Kbps
128 x 96 (sub-QCIF), 30 fps: 100 Kbps
telyCloud Resolutions:
2-party: 1280 x 720
3-party: 848 x 480
4-party: 624 x 352
5-party: 416 x 240
6-party: 320 x 192
Skype Resolutions:
1280 × 720: 800 Kbps
848 × 480: 400 Kbps
320 × 240: 200 Kbps
160 × 120: 50 Kbps
*The bitrates provide above are the minimum rates required to achieve the given resolution | | Audio Standards | SILK, G722, G722.1 codecs | | Audio Input | 4 internal directional beam-forming microphones
-35 dB sensitivity
100 Hz to 12 KHz | | Audio Output | HDMI
Included USB telyHD Audio Pod mic/speaker | | Storage | SD card slot | | Security | SIP: AES-128, SRTP for media encryption, TLS for signaling encryption, SDP (over TLS) for exchanging SRTP keys
telyCloud: AES-256
Skype: AES-256, RSA | | Network Features | NAT traversal
Adaptive bitrate control and resolution switching | | Power | Input: 100-240 V, 50-60 Hz
Output: 5 VDC, 3 A
Usage: 5 W | | Mount Types | TV mounting mechanism
Tripod mount | | Privacy | Camera privacy cover | | Operating Temperature | 32 to 95°F (0 to 35°C) | | Storage Temperature | -4 to 113°F (-20 to 45°C) | | Humidity | 5 - 95 % non-condensing | | Regulatory Certifications | FCC Class B | | Dimensions | 10.8 x 4 x 2.8" (27 x 10 x 7 cm) | | Weight | 0.85 lb (386 g) | | Package Weight | 4.15 lb | | Box Dimensions (LxWxH) | 12.52 x 9.449 x 3.78" | |
