User manual for the Thecus N4510U PRO-R 4-Bay Rackmount NAS Server N4510UPROR
The user manual for the Thecus N4510U PRO-R 4-Bay Rackmount NAS Server N4510UPROR provides
necessary instructions for the proper use of the product Computers & Solutions - Drives & Storage - NAS Enclosures.

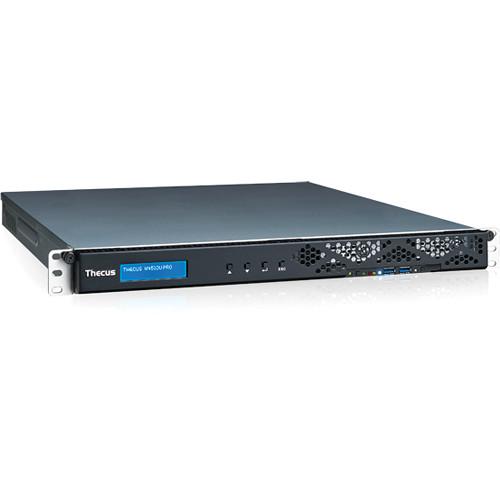

The N4510U PRO-R 4-Bay Rackmount NAS Server from Thecus is an advanced high-capacity NAS storage solution designed for use in business and enterprise environments. Built with a 1RU rackmount form factor and two 10/100/1000 Mb/s Ethernet ports, the N4510U PRO-R is compatible with Windows, Mac, Unix, and Linux.
Inside the N4510U PRO-R you will find four SATA III drive bays that can house both 3.5" or 2.5" hard drives or SSD drives. These drives can be configured for nearly any storage need as this NAS server is compatible with RAID 0, 1, 5, 10, and JBOD. In addition to the wide variety of RAID configurations, you can also take advantage of auto-rebuild, hot-swap support, hot spare support, RAID expansion, and much more.
The N4510U PRO-R is powered by a 2.13 GHz Intel Atom D2701 Dual-Core processor, which will allow you to run multiple functions simultaneously. Aside from the processor, the built-in 2GB of DDR3 RAM will allow quick access to frequently-used files and programs. Ports include one HDMI port, one VGA port, four USB 2.0 ports, and two USB 3.0 ports. Should power to the server be interrupted, the N4510U PRO-R comes equipped with a 250W redundant power supply complete with a battery backed-up system clock, adjustable frequency alarm, and auto power on after shutdown due to power loss feature.
Once configured, the N4510U PRO-R offers a variety of enhanced end user features. With 256-bit AES RAID volume encryption you can fully encrypt RAID volumes. You can also sync data to other NAS devices and servers by using Data Guard for added data protection. iSCSI support and link aggregation functionality allow for data redundancy across multiple servers should one of the links fail. The N4510U PRO-R can even be synced with a variety of cloud services including DropBox, Amazon S3, and ElephantDrive for yet another means of securing and backing up your data.
Additionally, to help protect data and backup needs for enterprises, Thecus provides free copies of Acronis True Image and McAfee Antivirus. McAfree's scanning algorithms help detect viral threats, while Acronis offers a wide range of features which includes hard drive replication and restore, VSS support, backing up to multiple destinations, and cloud backups.
The N4510U PRO-R includes an Accessory Bag with key, an Ethernet cable, a power cord, a DVD with Acronis True Image, McAfee Antivirus, a Universal CD, QIG, Fixed Shelves, and an HDD Compatibility List.
|
If you own a Thecus nas enclosures and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Thecus N4510U PRO-R 4-Bay Rackmount NAS Server N4510UPROR in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Thecus N4510U PRO-R 4-Bay Rackmount NAS Server N4510UPROR:
| Processor | Intel Atom D2701 (2.13 GHz Dual Core) | | System Memory | 2 GB DDR3 memory | | LAN Interface | 2x RJ-45: 10/100/1000 BASE-TX Auto MDI/MDI-X
WOL supported | | USB Interface | 4 x USB 2.0 host ports (back)
2 x USB 3.0 host ports (front) | | HDMI Output | 1 x HDMI port (back) | | VGA Output | 1 x VGA port (back) | | Audio | Mic input, Line input, Audio output | | Disk Interface | 4 x SATA III for internal
1 x eSATA for external | | LCM Module | Displays system status and information
4 buttons (ENTER, ESC, UP, DOWN) | | Power Supply | 250 W redundant power supply | | Thermal/Fan Control | Thermal sensor on processor temperature | | System Clock | Battery-backed up system clock | | Power Management | Auto power on after shutdown due to power loss | | Buzzer | Adjustable frequency alarm | | Buttons | Power button
LCM button (ENT, ESC, Up, Down)
Locator button
Mute button while system alert
System reset button (hardware) | | Temperature | 41 to 104°F / 5 to 40°C | | Humidity | 0 to 80% R.H. (non-condensing) | | Chassis | 4 bays 1U rack mount | | Certificates | CE/FCC/C-Tick/VCCI/BSMI, RoHS, WEEE | | RAID | RAID Modes 0, 1, 5, 6, 10, and JBOD
Auto-rebuilt support
Hot-swap support
Hot spare support
Online RAID migration support
Online RAID expansion support
RAID volume encryption AES 256-bit | | Disk | Power Management: Available spin-down while idle setting
Bad block scanning support
SMART Info support
SMART Test support
Disk Roaming: Supports volume-based roaming to other Thecus NAS | | Network | Configuration: Fixed IP address, dynamic IP address
Transport Protocols: TCP/IP/AppleTalk
File Protocols: SMB/CIFS, HTTP/HTTPS, FTP, NFS v4, AFP
Link Aggregation: Load balance, Failover, 802.3ad, Balance-XOR, Balance-TLB, Balance-ALB, Broadcast
TCP/IP: IPv6 and IPv4
DDNS support
SSH support
UPnP support
UPnP port forwarding support | | System Status | System Monitor: Monitoring CPU, memory, network utilization, and protocols access user count
Syslog Management: Send syslog to assigned location
Act as syslog server to receive log info from other systems | | Data Access | Client OS Support: Windows XP and after, Windows Server 2003 and after, UNIX/Linux, Mac OS X
FTP: Built-in FTP server with bandwidth control
Secure FTP: Built-in secure FTP server with bandwidth control
TFTP: Users can download and upload files with TFTP programs
Download Manager: BitTorrent downloads (via Transmission Module), NZB download (via NZB module)
Printer Server (IPP): Supports USB printers, supports a wide range of IPP printers, client can manage print tasks (list/delete) via web user interface | | Data Backup | Client Incremental Data Backup: Acronis True image (OEM version)
Client System Disaster Recovery: Acronis True image (OEM version)
Client Side Backup Software: Thecus Backup Utility (Windows/Mac OS X)
Data Burn: Create files to ISO image and burn to optical disc, create files to ISO image, read ISO image from optical disc and write to NAS
Mac OS X Time Machine support
Data Guard remote backup/local backup | | Block Level Access | iSCSI Target/Initiator: Supports Microsoft/Mac OS X/Linux initiators and Thecus NAS targets
iSCSI Thin Provisioning support
MPIO support
MCS support
Clustering support
SCSI3 Persistent Group Reservation support | | Power Management | Scheduled power on/off | | Volume Management | Multiple RAID support
Multiple File System Selectable: EXT3/EXT4/XFS | | Multimedia Support | iTunes Server: Supports AAC, MP3 w/ID3 tag, and WAV
Piczza! Photo Server (via module): Supports GIF, JPG (JPEG), BMP, and PNG; supports EXIF display; supports slide shows
Media Server: Support uPnP AV streaming protocol | | User Authentication | Local User: Supports built-in user accounts
Local Group: Supports built-in user groups
Windows ADS support
LDAP support
Access Guard: Supports Black and White list/IP filter | | Cloud Backup | Dropbox support (via module)
ElephantDriver support (via module)
Amazon S3 support | | File System | Type: Journaling file system
Language Support: Unicode support
Authorization (ACL): "Read", "write", or "deny" privileges to individual users or groups in folders and sub-folders
User Quota support | | Administration | User Interface: Web-based user interface supports English, Traditional Chinese, Simplified Chinese, Japanese, Korean, French, German, Italian, Spanish, Russian, Polish, and Portuguese
Utility Program: MS Windows Setup Wizard, supports Windows XP and after, Windows Server 2003 and after, and Mac OS X Setup Wizard
Email Notifications: Sends system messages via email to the system administrator
SNMP Trap: System information trap out | | Mobile Applications (iOS/Android) | T-Dashboard: Mobile monitoring and administration (via module)
T-OnTheGo: Upload, download, and stream multimedia | | Data Security | Virus Scan: Supports McAfee (via module) | | Capacity Expansion | Stackable: Can extend for 5 additional iSCSI volumes from other Thecus NAS | | Other Specifications | Recycle bin support
Web Disk support (via module)
Web Server support(via module)
ISO Mount support
IP Cam Surveillance: Supports up to 5 IP cameras (via module)
Auto Module Installation: Thecus's module server automatically provides the latest modules and updates through the user interface
Local Display: X-Window via HDMI output | | Dimensions | 1.73 x 17.03 x 21.73" / 43.94 x 432.56 x 551.94 mm | | Weight | 24.03 lb / 10.90 kg (NAS only) | | Package Weight | 40.0 lb | | Box Dimensions (LxWxH) | 29.5 x 25.0 x 8.5" | |
