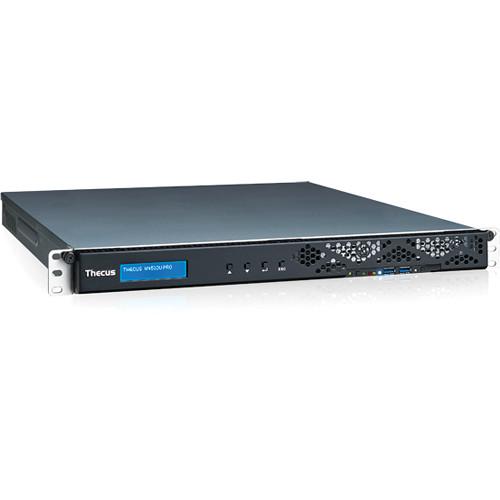

The N4510U PRO-S 4-Bay Rackmount NAS Server from Thecus is an advanced high-capacity NAS storage solution designed for use in business and enterprise environments. Built with a 1RU rackmount form factor and two 10/100/1000 Mb/s Ethernet ports, the N4510U PRO-S is compatible with Windows, Mac, Unix, and Linux.
Inside the N4510U PRO-S you will find four SATA III drive bays that can house both 3.5" or 2.5" hard drives or SSD drives. These drives can be configured for nearly any storage need as this NAS server is compatible with RAID 0, 1, 5, 10, and JBOD. In addition to the wide variety of RAID configurations, you can also take advantage of auto-rebuild, hot-swap support, hot spare support, RAID expansion, and much more.
The N4510U PRO-S is powered by a 2.13 GHz Intel Atom D2701 Dual-Core processor, which will allow you to run multiple functions simultaneously. Aside from the processor, the built-in 2GB of DDR3 RAM will allow quick access to frequently-used files and programs. Ports include one HDMI port, one VGA port, four USB 2.0 ports, and two USB 3.0 ports. Should power to the server be interrupted, the N4510U PRO-S features a battery backed-up system clock, adjustable frequency alarm, and auto power on after shutdown due to power loss feature.
Once configured, the N4510U PRO-S offers a variety of enhanced end user features. With 256-bit AES RAID volume encryption you can fully encrypt RAID volumes. You can also sync data to other NAS devices and servers by using Data Guard for added data protection. iSCSI support and link aggregation functionality allow for data redundancy across multiple servers should one of the links fail. The N4510U PRO-S can even be synced with a variety of cloud services including DropBox, Amazon S3, and ElephantDrive for yet another means of securing and backing up your data.
Additionally, to help protect data and backup needs for enterprises, Thecus provides free copies of Acronis True Image and McAfee Antivirus. McAfree's scanning algorithms help detect viral threats, while Acronis offers a wide range of features which includes hard drive replication and restore, VSS support, backing up to multiple destinations, and cloud backups.
The N4510U PRO-S includes an Accessory Bag with key, an Ethernet cable, a power cord, a DVD with Acronis True Image, McAfee Antivirus, a Universal CD, QIG, Fixed Shelves, and an HDD Compatibility List.
If you own a Thecus nas enclosures and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Thecus N4510U PRO-S 4-Bay Rackmount NAS Server N4510UPROS in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Thecus N4510U PRO-S 4-Bay Rackmount NAS Server N4510UPROS:
RAID Modes 0, 1, 5, 6, 10, and JBOD Auto-rebuilt support Hot-swap support Hot spare support Online RAID migration support Online RAID expansion support RAID volume encryption AES 256-bit
Disk
Power Management: Available spin-down while idle setting Bad block scanning support SMART Info support SMART Test support Disk Roaming: Supports volume-based roaming to other Thecus NAS
Network
Configuration: Fixed IP address, dynamic IP address Transport Protocols: TCP/IP/AppleTalk File Protocols: SMB/CIFS, HTTP/HTTPS, FTP, NFS v4, AFP Link Aggregation: Load balance, Failover, 802.3ad, Balance-XOR, Balance-TLB, Balance-ALB, Broadcast TCP/IP: IPv6 and IPv4 DDNS support SSH support UPnP support UPnP port forwarding support
System Status
System Monitor: Monitoring CPU, memory, network utilization, and protocols access user count Syslog Management: Send syslog to assigned location Act as syslog server to receive log info from other systems
Data Access
Client OS Support: Windows XP and after, Windows Server 2003 and after, UNIX/Linux, Mac OS X FTP: Built-in FTP server with bandwidth control Secure FTP: Built-in secure FTP server with bandwidth control TFTP: Users can download and upload files with TFTP programs Download Manager: BitTorrent downloads (via Transmission Module), NZB download (via NZB module) Printer Server (IPP): Supports USB printers, supports a wide range of IPP printers, client can manage print tasks (list/delete) via web user interface
Data Backup
Client Incremental Data Backup: Acronis True image (OEM version) Client System Disaster Recovery: Acronis True image (OEM version) Client Side Backup Software: Thecus Backup Utility (Windows/Mac OS X) Data Burn: Create files to ISO image and burn to optical disc, create files to ISO image, read ISO image from optical disc and write to NAS Mac OS X Time Machine support Data Guard remote backup/local backup
Block Level Access
iSCSI Target/Initiator: Supports Microsoft/Mac OS X/Linux initiators and Thecus NAS targets iSCSI Thin Provisioning support MPIO support MCS support Clustering support SCSI3 Persistent Group Reservation support
Power Management
Scheduled power on/off
Volume Management
Multiple RAID support Multiple File System Selectable: EXT3/EXT4/XFS
Multimedia Support
iTunes Server: Supports AAC, MP3 w/ID3 tag, and WAV Piczza! Photo Server (via module): Supports GIF, JPG (JPEG), BMP, and PNG; supports EXIF display; supports slide shows Media Server: Support uPnP AV streaming protocol
User Authentication
Local User: Supports built-in user accounts Local Group: Supports built-in user groups Windows ADS support LDAP support Access Guard: Supports Black and White list/IP filter
Cloud Backup
Dropbox support (via module) ElephantDriver support (via module) Amazon S3 support
File System
Type: Journaling file system Language Support: Unicode support Authorization (ACL): "Read", "write", or "deny" privileges to individual users or groups in folders and sub-folders User Quota support
Administration
User Interface: Web-based user interface supports English, Traditional Chinese, Simplified Chinese, Japanese, Korean, French, German, Italian, Spanish, Russian, Polish, and Portuguese Utility Program: MS Windows Setup Wizard, supports Windows XP and after, Windows Server 2003 and after, and Mac OS X Setup Wizard Email Notifications: Sends system messages via email to the system administrator SNMP Trap: System information trap out
Mobile Applications (iOS/Android)
T-Dashboard: Mobile monitoring and administration (via module) T-OnTheGo: Upload, download, and stream multimedia
Data Security
Virus Scan: Supports McAfee (via module)
Capacity Expansion
Stackable: Can extend for 5 additional iSCSI volumes from other Thecus NAS
Other Specifications
Recycle bin support Web Disk support (via module) Web Server support(via module) ISO Mount support IP Cam Surveillance: Supports up to 5 IP cameras (via module) Auto Module Installation: Thecus's module server automatically provides the latest modules and updates through the user interface Local Display: X-Window via HDMI output
