User manual for the Thermaltake 1200W Toughpower Computer Power PS-TPD-1200MPCGUS-1
The user manual for the Thermaltake 1200W Toughpower Computer Power PS-TPD-1200MPCGUS-1 provides
necessary instructions for the proper use of the product Computers & Solutions - Computer Components - Power Supplies.

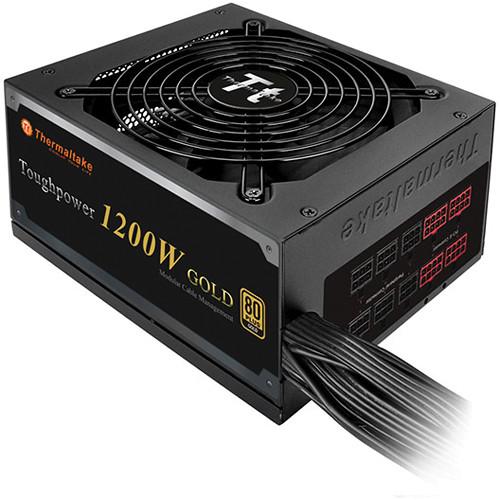

The Toughpower Computer Power Supply from Thermaltake provides 1200 watts on a single +12V rail to offer stable and reliable power for all your PC components. The power distribution is handled by an Active PFC, which corrects the power factor to ensure the power supply operates at maximum efficiency. Thermaltake has equipped this power supply with a 135mm fan that spins up to 1500 rpms to provide maximum cooling or slows down for a quieter operation. To deliver reliability, Japanese capacitors are used to deliver stable operation with performance.
The Thermaltake Toughpower is an ATX power supply, which includes 8 x PCI-e, 12 x SATA, 1 x ATX 12 V, 1 x 24-pin, 1 x EPS 12 V, and 8 x Molex connectors. Some of the connectors are modular such as the SATA and PCI-e cables, so you have the option of not using them to reduce clutter and improve airflow. By offering these various connections and featuring 1200 watts of power, you can utilize multiple graphics cards and the Intel Haswell CPU or other CPU processors.
|
If you own a Thermaltake power supplies and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Thermaltake 1200W Toughpower Computer Power PS-TPD-1200MPCGUS-1 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Thermaltake 1200W Toughpower Computer Power PS-TPD-1200MPCGUS-1:
| Type | Intel ATX 12 V V2.3 & EPS 12 V standards | | Connectors | 1 x Main power (24-pin)
1 x EPS 12 V (8-pin)
1 x ATX 12 V (4+4-pin)
8 x PCI-E (6+2-pin)
12 x SATA (5-pin)
8 x Peripheral (4-pin) | | Maximum Output Current | +3.3 V: 25 A
+5 V: 25 A
+12 V: 100 A
-12 V: 0.3 A
+5 VSB: 3.5 A | | Maximum Output Power | +3.3 V: 150 W
+5 V: 150 W
+12 V: 1200 W
-12 V: 3.6 W
+5 VSB: 17.5 W | | Power Good Signal | 100 to 500 ms | | Hold Up Time | 16 ms @ 75% of full load at 115 / 230 VAC input. | | Maximum Output | Capacity: 1200 W | | Peak Output Capacity | 1250 W | | Input Frequency Range | 60 to 50 Hz | | PFC (Power Factor Correction) | Active PFC | | Input Voltage | 115 to 240 VAC | | Input/Output Current | 12 to 6 A | | Efficiency | 87 to 92% efficiency @ 20 to 100% load | | MTBF | 120,000 hours minimum | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4.0 to 140.0 F° / -20.0 to 60.0 C° | | Operating Humidity | Non-condensing: 10 to 90% | | Storage Humidity | Non-condensing: 5 to 95% | | Cooling System | 5.3" / 135.0 mm double ball bearing fan
Fan Speed: 1500 ±10% rpm | | Standards & Certifications | 80 PLUS Gold, UL, CB+Baurt mark, CE, FCC, CCC, GOST | | Dimensions (L x W x H) | 7.0 x 5.9 x 3.3" / 180.0 x 150.0 x 86.0 mm | | Package Weight | 9.0 lb | | Box Dimensions (LxWxH) | 14.2 x 8.6 x 6.6" | |
