User manual Thermaltake Frio Silent 14 CPU Cooler CL-P002-AL14BL-B

Operating instructions and pdf manual for use - Thermaltake Frio Silent 14 CPU Cooler CL-P002-AL14BL-B User manual, User manual Thermaltake Frio Silent 14 CPU Cooler CL-P002-AL14BL-B, Thermaltake, Frio, Silent, 14, CPU, Cooler, CL-P002-AL14BL-B,


User manual for Thermaltake Frio Silent 14 CPU Cooler CL-P002-AL14BL-B

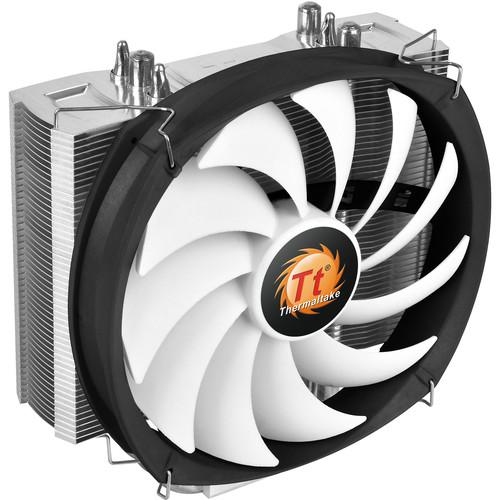

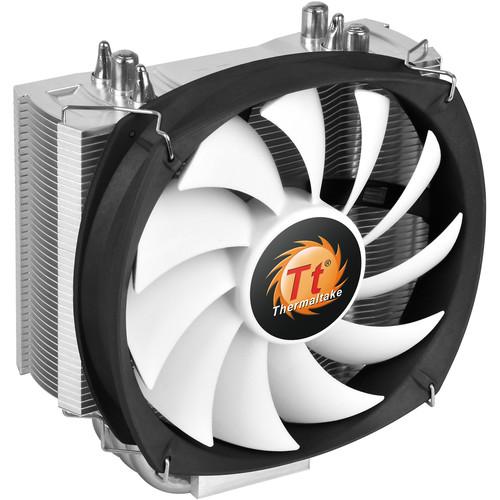

Thermaltake Frio Silent 14 CPU Cooler CL-P002-AL14BL-B
  • Manufacturer: Thermaltake
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Computer Components - Fans & CPU Coolers
  • Safety instructions
  • Startup and operation of the fans & cpu coolers
  • Tips for setting up your Thermaltake
  • Settings and expert assistance
  • Contact Thermaltake service
  • Troubleshooting
  • Warranty information
  • Price: 40 USD
Thermaltake Frio Silent 14 CPU Cooler CL-P002-AL14BL-B Thermaltake Frio Silent 14 CPU Cooler CL-P002-AL14BL-B
Click to enlarge image

We recommend checking out our discussion threads on the Thermaltake Frio Silent 14 CPU Cooler CL-P002-AL14BL-B, which address similar problems with connecting and setting up Fans & CPU Coolers Thermaltake.



User manual for the Thermaltake Frio Silent 14 CPU Cooler CL-P002-AL14BL-B

The user manual for the Thermaltake Frio Silent 14 CPU Cooler CL-P002-AL14BL-B provides necessary instructions for the proper use of the product Computers & Solutions - Computer Components - Fans & CPU Coolers.

Built with a non-interference cooling design that is optimized for use with high-performance RAM and motherboards, the Frio Silent 14 CPU Cooler from Thermaltake uses a 140mm fan to help enhance your system's airflow to help maintain performance. It also uses aluminum fins to aid in heat dissipation, while solid copper heat pipes also help to dissipate heat and allow maximum heat conductivity. Although this cooler has fan speeds of up to 1200 rpm, a Low Noise Cable (LNC) can help reduce the noise level from 19.3 dBA to 12 dBA. The Frio Silent 14 CPU cooler provides 165W of cooling power, has an air flow of 71.24 CFM, a lifespan of 50,000 hours, is compatible with Intel and AMD platforms, and is protected by a limited 3-year warranty.
If you own a Thermaltake fans & cpu coolers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Thermaltake Frio Silent 14 CPU Cooler CL-P002-AL14BL-B in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Thermaltake Frio Silent 14 CPU Cooler CL-P002-AL14BL-B:
Specifications
Compatibility Intel LGA 2011/1366/1155/1156/1151/1150/775
AMD FM2/FM1/AM3+/AM3/AM2+/AM2
Heatsink Material Aluminum fins and copper heatpipes
Fan Speed 500~1200 rpm
300~700 rpm (with LNC)
Rated Voltage 12 V
Start Voltage 8 V
Rated Current 0.4 A
Power Input 5.76 W
Air Flow 71.24 CFM
Air Pressure 1.13 mm H2O
Noise 19.3 dBA
12 dBA (with LNC)
Lifespan 50,000 hours
Fan Control PWM + LNC (Low-Noise Cable)
58% fan speed and 38% noise can be reduced
Pin Connect 4-pin PWM
Cooling Power 165 W
Heatpipe Dimensions 0.3" / 8 mm x 3 pieces
Heatsink Dimensions 6.3 x 5.9 x 1.6" / 160 x 150 x 40 mm
Fan Dimensions 5.5 x 5.5 x 1.0" / 140 x 140 x 25 mm
Weight 21.9 oz / 620 g
The user manual for the Thermaltake Frio Silent 14 CPU Cooler CL-P002-AL14BL-B can be downloaded in .pdf format if it did not come with your new fans & cpu coolers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Thermaltake users keep a unique electronic library for Thermaltake fans & cpu coolerss, where you can use our link to download the user manual for the Thermaltake Frio Silent 14 CPU Cooler CL-P002-AL14BL-B.

The user manual lists all of the functions of the Thermaltake Frio Silent 14 CPU Cooler CL-P002-AL14BL-B, all the basic and advanced features and tells you how to use the fans & cpu coolers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Thermaltake service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Thermaltake Frio Silent 14 CPU Cooler CL-P002-AL14BL-B. User manuals are also available on the Thermaltake website under Computers & Solutions - Computer Components - Fans & CPU Coolers.
