User manual Thermaltake Smart Series Standard 750W Power Supply Unit SP-750P

Operating instructions and pdf manual for use - Thermaltake Smart Series Standard 750W Power Supply Unit SP-750P User manual, User manual Thermaltake Smart Series Standard 750W Power Supply Unit SP-750P, Thermaltake, Smart, Series, Standard, 750W,


User manual for Thermaltake Smart Series Standard 750W Power Supply Unit SP-750P

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.
Thermaltake Smart Series Standard 750W Power Supply Unit SP-750P
  • Manufacturer: Thermaltake
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Computer Components - Power Supplies
  • Safety instructions
  • Startup and operation of the power supplies
  • Tips for setting up your Thermaltake
  • Settings and expert assistance
  • Contact Thermaltake service
  • Troubleshooting
  • Warranty information
  • Price: 68 USD
We recommend checking out our discussion threads on the Thermaltake Smart Series Standard 750W Power Supply Unit SP-750P, which address similar problems with connecting and setting up Power Supplies Thermaltake.



User manual for the Thermaltake Smart Series Standard 750W Power Supply Unit SP-750P

The user manual for the Thermaltake Smart Series Standard 750W Power Supply Unit SP-750P provides necessary instructions for the proper use of the product Computers & Solutions - Computer Components - Power Supplies.

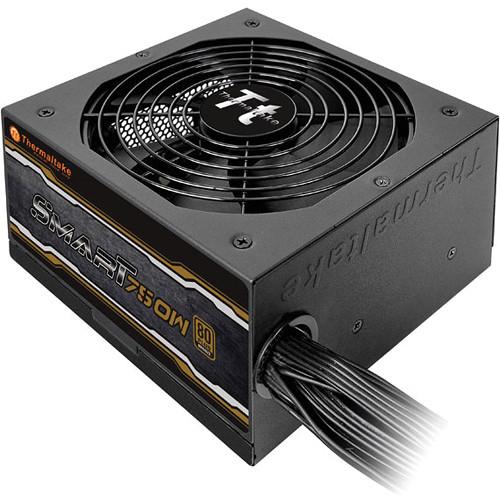

The black Smart Series Standard 750W Power Supply Unit from Thermaltake is ideal for you to build a stable home or office system for 24/7 use. It is 80 Plus Bronze certified and offers up to 88% energy efficiency at 20 to 100% load under real world load conditions. The unit features flat and low-profile cables that increase the airflow. It is equipped with a pure single +12V rail to provide better compatibility for your PC. The quiet smart temperature controlled fan can automatically detect power load and adjusts fan speed.
If you own a Thermaltake power supplies and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Thermaltake Smart Series Standard 750W Power Supply Unit SP-750P in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Thermaltake Smart Series Standard 750W Power Supply Unit SP-750P:
Specifications
    Performance
    Type Intel ATX 12V Version 2.3
    MTBF Minimum: 100,000 hours
    Output
    Output Capacity Details Maximum: 750 W
    Peak Output Capacity 900 W
    Output Current Maximum: +3.3 V: 25 A
    +5 V: 25 A
    +12 V: 62 A
    -12 V: 0.8 A
    +5 VSB: 3.0 A
    Output Power Maximum: +3.3 V and +5 V: 130 W
    +12 V: 744 W
    -12 V: 9.6 W
    +5 VSB: 15 W
    Input
    Input Current 10 A
    Input Frequency Range 47 to 63 Hz
    Input Voltage 100 to 240 VAC
    Connectors 1 x 24-pin
    1 x 4+4-pin CPU
    4 x PCIe (6+2-pin)
    8 x SATA
    4 x peripheral (4-pin)
    1 x floppy (4-pin)
    Power Factor Correction Active PFC
    Power Good Signal 100 to 500 ms
    Hold Up Time 16 ms (minimum) at 80% of full load at 115 VAC/230 VAC input
    Cooling System
    Fan 5.5" (140.0 mm), 2300 rpm ±10%
    Efficiency 82 to 88% efficiency at 20 to 100% load
    Power Factor Correction Active PFC
    Input Voltage 100 to 240 VAC
    Protection OVP, UVP, OCP, OPP, and SCP
    Environmental
    Operating Temperature 32 to 104°F (0 to 40℃)
    Storage Temperature -4 to 158°F (-20 to 70℃)
    Operating Humidity 20 to 90% (non-condensing)
    Storage Humidity 5 to 95% (non-condensing)
    Certifications
    Safety Approvals UL, CUL, TUV, CE, FCC, and BSMI
    Physical Specifications
    Dimensions (W x H x D) 5.9 x 3.3 x 6.2" (150.0 x 86.0 x 160.0 mm)
    Packaging Info
    Package Weight 5.45 lb
    Box Dimensions (LxWxH) 10.2 x 8.8 x 4.6"
    The user manual for the Thermaltake Smart Series Standard 750W Power Supply Unit SP-750P can be downloaded in .pdf format if it did not come with your new power supplies, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Thermaltake users keep a unique electronic library for Thermaltake power suppliess, where you can use our link to download the user manual for the Thermaltake Smart Series Standard 750W Power Supply Unit SP-750P.

    The user manual lists all of the functions of the Thermaltake Smart Series Standard 750W Power Supply Unit SP-750P, all the basic and advanced features and tells you how to use the power supplies. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Thermaltake service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Thermaltake Smart Series Standard 750W Power Supply Unit SP-750P. User manuals are also available on the Thermaltake website under Computers & Solutions - Computer Components - Power Supplies.
