User manual for the Thermaltake TR2 600 Watt 80 Plus Gold Power PS-TR2-0600NPCGUS-G
The user manual for the Thermaltake TR2 600 Watt 80 Plus Gold Power PS-TR2-0600NPCGUS-G provides
necessary instructions for the proper use of the product Computers & Solutions - Computer Components - Power Supplies.

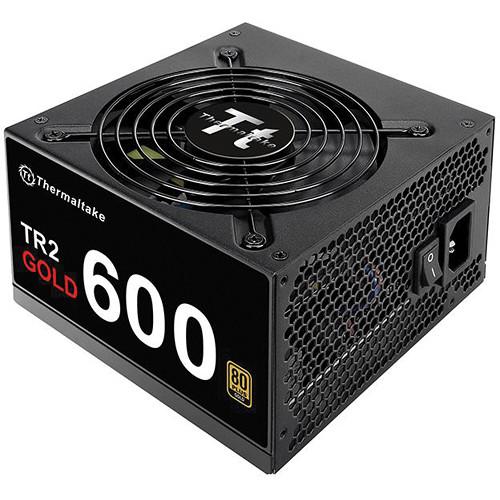

Incorporating various choice components, the TR2 Gold 600 Power Supply from Thermaltake is rated at 600 watts and is designed to save energy through its high efficiency of up to 90%. The 600 is engineered to accommodate any mainstream build with the most demanding requirements, while an embedded intelligent cooling fan delivers suitable airflow at a low noise level. Additionally, the Single +12V rail design enables non-stop usage with stable and reliable performance.
The TR2 Gold 600 has many unique features, such as its 12cm cooling fan with intelligent RPM control for cool performance and quiet operation. Additionally, the cables utilized by the TR2 Gold 600 are all sleeved. Furthermore, the Haswell-ready power supply saves energy through its high energy efficiency of up to 90% and is 80 PLUS Gold certified. Premium-grade capacitors enable non-stop usage with stable and reliable performance designed to eliminate capacitor explosion and leakage. Finally, the power supply is equipped with powerful +12V rails, for providing consistent and reliable power under all types of system loading.
|
If you own a Thermaltake power supplies and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Thermaltake TR2 600 Watt 80 Plus Gold Power PS-TR2-0600NPCGUS-G in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Thermaltake TR2 600 Watt 80 Plus Gold Power PS-TR2-0600NPCGUS-G:
| Connectors | 1 x 20+4-Pin Main Power Connectors
1 x 4+4-Pin ATX 12 V Connector
4 4-Pin Peripheral Connector
6 x 5-Pin SATA Connector
2 x 6+2-Pin PCI-E Connector
1 x 4-Pin Floppy Connector | | Type | Intel ATX 12 V 2.3 | | Maximum Output Capacity | 600 W | | Power Factor Correction | Active PFC | | Power Good Signal | 100 to 500 ms | | Hold Up Time | 16 ms (minimum) at full load at 230 VAC at 50 Hz input | | Input Current | 8 A | | Input Frequency Range | 50 to 60 Hz | | Input Voltage Range | 100 to 240 VAC | | Maximum Output Current | +3.3 V: 22 A
+5 V: 22 A
+12 V:50 A
-12 V: 0.3 A
+5 VSB: 3.0 A | | Maximum Output Power | +3.3 V: 120 W
+5 V: 120 W
+12 V: 600 W
-12 V: 3.6 W
5 VSB: 15 W | | Over Voltage Protection | Voltage Source: Protection point (maximum)
3.3 V: 5.2 V
5 V: 7.0 V
12 V: 16.0 V | | Cooling System | 4.7" (120 mm) Fan: 1500 rpm ± 10% | | Efficiency | 87 to 92% efficiency at 20 to 100% load | | MTBF | >100,000 hours minimum | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -40 to 158°F (-40 to 70°C) | | Operating Humidity | 20 to 90% (non-condensing) | | Storage Humidity | 20 to 95% relative humidity (non-condensing) | | Safety Approvals | UL/CUL, CE, FCC, TUV, and GOST | | Dimensions (H x W x D) | 3.4 x 5.9 x 5.5" (86 x 150 x 140 mm) | | Weight | Not supplied by manufacturer | | Package Weight | 5.3 lb | | Box Dimensions (LxWxH) | 9.5 x 7.3 x 4.1" | |
The user manual for the Thermaltake TR2 600 Watt 80 Plus Gold Power PS-TR2-0600NPCGUS-G can be downloaded in .pdf
format if it did not come with your new power supplies, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Thermaltake users keep a unique electronic library
for Thermaltake power suppliess,
where you can use our link to download the user manual for the Thermaltake TR2 600 Watt 80 Plus Gold Power PS-TR2-0600NPCGUS-G.
The user manual lists all of the functions of the Thermaltake TR2 600 Watt 80 Plus Gold Power PS-TR2-0600NPCGUS-G,
all the basic and advanced features and tells you how to use the power supplies.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Thermaltake service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Thermaltake TR2 600 Watt 80 Plus Gold Power PS-TR2-0600NPCGUS-G. User manuals are also
available on the Thermaltake website under Computers & Solutions - Computer Components - Power Supplies.
