User manual for the Tokina Cinema 16-28mm T3.0 with Sony-E Mount TC-168S
The user manual for the Tokina Cinema 16-28mm T3.0 with Sony-E Mount TC-168S provides
necessary instructions for the proper use of the product Professional Video - Lenses & Lens Accessories - Digital Cine Lenses.

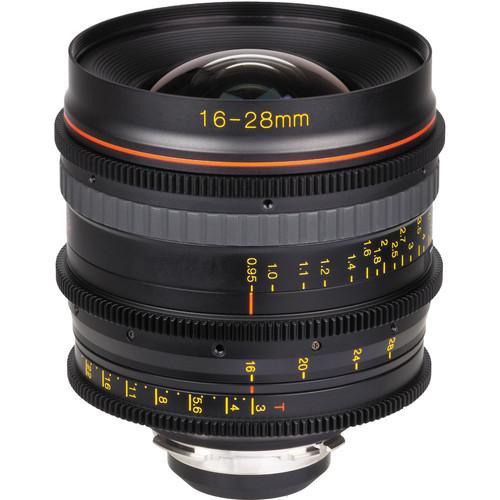

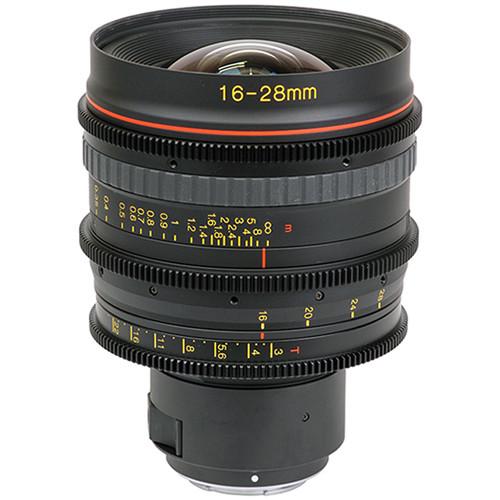

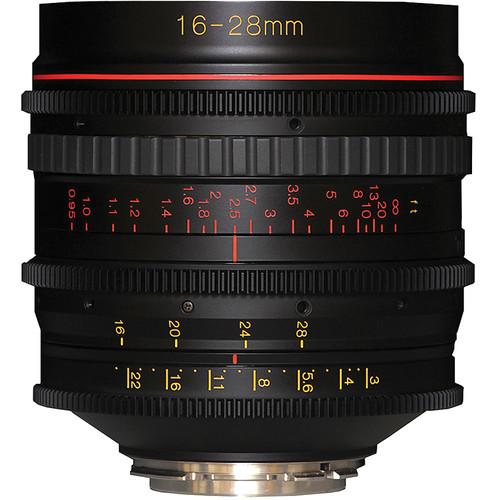

The Cinema 16-28mm T3.0 with Sony-E Mount is a wide-angle zoom lens that covers full-frame image sensors and features a Sony-E lens mount. The lens builds upon the optical performance of Tokina's 16-28mm f/2.8mm FX DSLR lens, but now has a parfocal design that allows you to maintain focus on your subject while zooming, and all-metal housing optimized for video and digital cinema use. The housing provides manual focus control with an easy-to-read distance scale, a de-clicked aperture ring for smooth iris pulls. The focus, aperture, and zoom rings all have standard 0.8 pitch gears for use with follow focus systems.
The Tokina 16-28mm T3.0 utilizes three aspherical and two super-low dispersion lens elements and multi-layer coating to produce images with high contrast and sharpness, while minimizing flare, diffraction, and ghosting. A 9-blade aperture diaphragm yields pleasing focus highlights while further reducing the chance of diffraction at small apertures. The lens has an industry-standard 114mm front diameter for use with professional matte boxes.
If you own a Tokina digital cine lenses and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Tokina Cinema 16-28mm T3.0 with Sony-E Mount TC-168S in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Tokina Cinema 16-28mm T3.0 with Sony-E Mount TC-168S:
Specifications
Lens Mount
Sony-E
Focal Length
16 to 28 mm
Maximum Aperture
T3.0 (f/2.8)
Minimum Aperture
T22
Angle of View
107.11 to 76.87° (with 35 mm Full-Frame image sensor)
Minimum Focus Distance
11.03" (28 cm)
Zoom Ratio
1.75:1
Zooming
Rotary zooming system
Optical Construction
15 Elements / 13 Groups
Coatings
Multi-layer coatings
Diaphragm Blades
9
Filter Thread
112 mm
Gear Pitch
0.8
Dimensions (Ø x L)
4.49 x 5.67" (114 x 144 mm)
Weight
3.3 lb (1.5 kg)
