User manual for the Toshiba 2TB DT01ACA200 7200 RPM 3.5" Hard Disk DT01ACA200
The user manual for the Toshiba 2TB DT01ACA200 7200 RPM 3.5" Hard Disk DT01ACA200 provides
necessary instructions for the proper use of the product Computers & Solutions - Drives & Storage - Internal Drives.

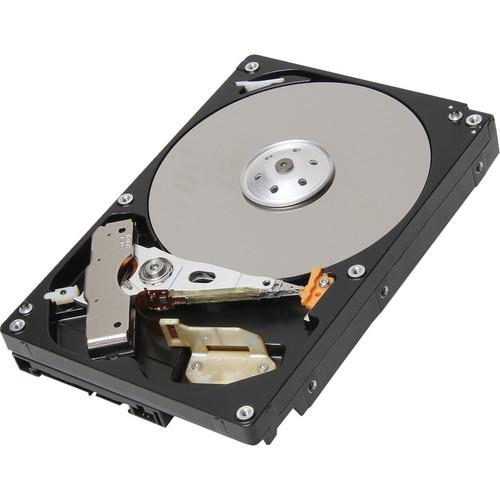

The 2TB DT01ACA200 7200 RPM 3.5" Hard Disk Drive from Toshiba is optimized for use with power-friendly consumer and commercial desktop computers, gaming PCs, and external HDDs. Offering a storage capacity of 2TB and using Advanced Format, this HDD drive provides up to 16% idle power savings. The 6 Gb/s SATA interface drive delivers 7200 RPM performance and allows manufacturers to deliver high-performance, high-capacity, power-efficient systems.
|
If you own a Toshiba internal drives and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Toshiba 2TB DT01ACA200 7200 RPM 3.5" Hard Disk DT01ACA200 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Toshiba 2TB DT01ACA200 7200 RPM 3.5" Hard Disk DT01ACA200:
| Drive Capacity | 2 TB | | Drive Interface | Serial ATA 3.0 / ATA-8 | | Transfer Rate to Host | 6 Gb/sec | | Number of User Data Cylinders | 16,383 | | Bytes per Sector (HOST) | 512 byte | | Bytes per Sector (DISK) | 4,096 byte | | Logical Blocks (LBA) | 3,907,029,168 | | Rotational Speed | 7,200 rpm | | Average Latency | 4.17 ms | | Buffer Size | 64 MB | | Seek Time | Single Track Seek Time (read): 0.5 ms
Single Track Seek Time (write): 0.6 ms | | Voltage | 5 V (±5%), +12 VDC ±10% | | Read/Write Power | 6.4 watts | | Active Idle Power | 5.2 watts | | Standby Power | 1.0 watts | | Sleep Power | 1.0 watts | | Operating Temperature | 0 to 60°C | | Non-Operating Temperature | -40 to 70°C | | Operating Vibration | 6.57 m/s² (0.67 G) RMS 5 to 500 Hz | | Non-Operating Vibration | 10.2 m/s² (1.04 G) RMS 2 to 200 Hz | | Operating Shock | 686 m/s² (70 G) 2 ms Half Sine | | Non-Operating Shock | 2940 m/s² (300 G) 2 ms
Half Sine | | Load/Unload | 300,000 times | | Error rate (non-recoverable, bits read) | 1/1014 bit read | | Dimensions | 4.0 x 5.8 x 1.0" / 101.6 x 147.0 x 26.1 mm | | Weight | 1.5 lb / 680 g | | Package Weight | 1.75 lb | | Box Dimensions (LxWxH) | 8.4 x 6.1 x 2.9" | |
The user manual for the Toshiba 2TB DT01ACA200 7200 RPM 3.5" Hard Disk DT01ACA200 can be downloaded in .pdf
format if it did not come with your new internal drives, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Toshiba users keep a unique electronic library
for Toshiba internal drivess,
where you can use our link to download the user manual for the Toshiba 2TB DT01ACA200 7200 RPM 3.5" Hard Disk DT01ACA200.
The user manual lists all of the functions of the Toshiba 2TB DT01ACA200 7200 RPM 3.5" Hard Disk DT01ACA200,
all the basic and advanced features and tells you how to use the internal drives.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Toshiba service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Toshiba 2TB DT01ACA200 7200 RPM 3.5" Hard Disk DT01ACA200. User manuals are also
available on the Toshiba website under Computers & Solutions - Drives & Storage - Internal Drives.
