User manual for the Toshiba DVS Digital Video Recorder DVSE32-480-24T
The user manual for the Toshiba DVS Digital Video Recorder DVSE32-480-24T provides
necessary instructions for the proper use of the product Surveillance - Surveillance Video - Digital Video Recorders (DVRs).

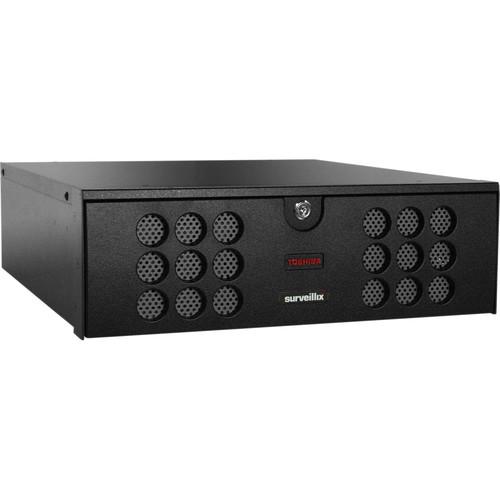

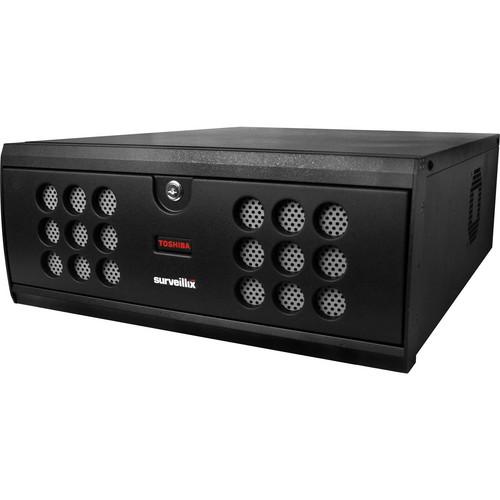

The Toshiba DVS Digital Video Recorder (32-Channel, 480 PPS, 24 TB) allows you to record real-time video at a resolution up to 720 x 480 at 120 PPS and 360 x 240 at 480 PPS. With the field replaceable hard disk drive, the video recorder offers reliable and efficient recording solution. Featuring 4 hybrid recording channels, the video recorder allows for simultaneous recording from 4 different sources.
Besides supporting H.264 compression technology to provide small-sized files and use less network bandwidth, the 32-channel DVS video recorder is also compatible with MPEG-4 and MJPEG compression codecs. The pre-configured 24 TB DVR enables you to manually expand the HDD storage capacity. Removable HDD bays ensure easy and rapid HDD replacement and field upgrades.
With the Multi-Site SCS software, you can remotely manage more than 100 DVRs, thus allowing you to configure, view, search, export, remotely upgrade, and monitor alarms. Password control restricts access to unauthorized persons. Power interruption recovery automatically restarts after power outage and resumes the recording operation.
If you own a Toshiba digital video recorders (dvrs) and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Toshiba DVS Digital Video Recorder DVSE32-480-24T in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Toshiba DVS Digital Video Recorder DVSE32-480-24T:
Specifications
Channels
32
Storage Capacity
24 TB (RAID 5 optional)
Video Format
NTSC/PAL
Analog Video Inputs (BNC)
32
IP Video Inputs
4 standard (up to 16 channels maximum)
IP video inputs may not exceed the number of analog video inputs.
Video Outputs
DVI-D x 1, SVGA x 1 (Primary Display), RCA x 1 (Spot Monitor)
Looping Outputs (BNC)
32
Recording Rate
360 x 240 at 480 PPS 720 x 240 at 240 PPS 720 x 480 at 120 PPS
Live Viewing Rate (PPS)
480
Audio Recording
8 (optional 16 channel available)
Sensor/Alarm Inputs
16
Alarm Outputs
16
PTZ Control
Internal RS-422/485 (over 75 protocols)
Image Compression
MJPEG, H.264, MPEG-4
LAN
100/1000 Gigabit Ethernet
Critical Recording Archive
DVD Multi Burner, Network, USB
Password Control
User Defined Access Level
Power Interruption Recovery
Automatic restart after power interruption / recording operation resumes
Remote Connection
TCP/IP, UDP, Internet, LAN, WAN
Power Input
AC 100~240V Input (50 Hz/60 Hz)
Central Processing Unit
Intel Dual Core 2 Ghz+
RAM
1 GB
Operating System
Microsoft Windows XP Embedded
Dimensions (HxWxD)
7.0 x 17.3 x 21.3" (17.8 x 43.9 x 54.1 cm)
Weight
47-52 lb (21.3-23.5 kg)
The user manual for the Toshiba DVS Digital Video Recorder DVSE32-480-24T can be downloaded in .pdf
format if it did not come with your new digital video recorders (dvrs), although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Toshiba users keep a unique electronic library
for Toshiba digital video recorders (dvrs)s,
where you can use our link to download the user manual for the Toshiba DVS Digital Video Recorder DVSE32-480-24T.
The user manual lists all of the functions of the Toshiba DVS Digital Video Recorder DVSE32-480-24T,
all the basic and advanced features and tells you how to use the digital video recorders (dvrs).
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Toshiba service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Toshiba DVS Digital Video Recorder DVSE32-480-24T. User manuals are also
available on the Toshiba website under Surveillance - Surveillance Video - Digital Video Recorders (DVRs).
