User manual Toshiba IK-TF5P2 3CCD Progressive Scan Color Camera IK-TF5P2

Operating instructions and pdf manual for use - Toshiba IK-TF5P2 3CCD Progressive Scan Color Camera IK-TF5P2 User manual, User manual Toshiba IK-TF5P2 3CCD Progressive Scan Color Camera IK-TF5P2, Toshiba, IK-TF5P2, 3CCD, Progressive, Scan, Color, C


User manual for Toshiba IK-TF5P2 3CCD Progressive Scan Color Camera IK-TF5P2

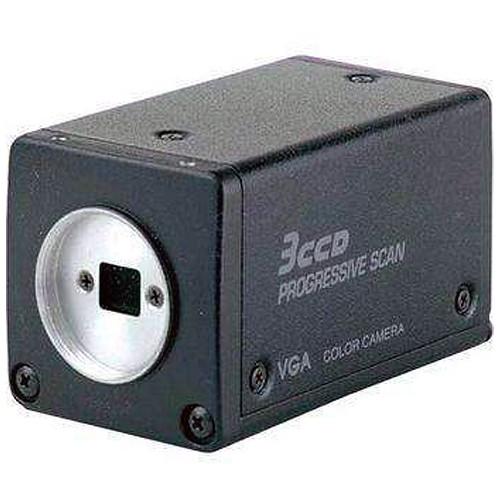

Toshiba IK-TF5P2 3CCD Progressive Scan Color Camera IK-TF5P2
  • Manufacturer: Toshiba
  • Basic description and contents of package
  • Product classification: Professional Video - Industrial & Multi-Purpose Cameras
  • Safety instructions
  • Startup and operation of the industrial & multi-purpose cameras
  • Tips for setting up your Toshiba
  • Settings and expert assistance
  • Contact Toshiba service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Toshiba IK-TF5P2 3CCD Progressive Scan Color Camera IK-TF5P2, which address similar problems with connecting and setting up Industrial & Multi-Purpose Cameras Toshiba.



User manual for the Toshiba IK-TF5P2 3CCD Progressive Scan Color Camera IK-TF5P2

The user manual for the Toshiba IK-TF5P2 3CCD Progressive Scan Color Camera IK-TF5P2 provides necessary instructions for the proper use of the product Professional Video - Industrial & Multi-Purpose Cameras.

The Toshiba IK-TF5P2 3CCD Progressive Scan Color Camera provides accurate colors and high resolution of fast moving objects for a variety of process control, inspection, and machine vision applications. The design expands digital processing capabilities including electronic noise reduction, auto mode electronic shutter, partial scan frame rates up to 250 fps, Power over Camera Link, and reduced power requirements.
If you own a Toshiba industrial & multi-purpose cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Toshiba IK-TF5P2 3CCD Progressive Scan Color Camera IK-TF5P2 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Toshiba IK-TF5P2 3CCD Progressive Scan Color Camera IK-TF5P2:
Specifications
    Scanning System Progressive
    Image Sensor 3 x 1/3" CCD, RGB prism
    Effective Pixels VGA (659 x 494)
    Output Resolution 659 x 494
    Pixel Size 7.4 x 7.4µm
    Sensing Area 4.9 x 3.7 mm
    Frame Rate 59.94 fps
    Partial Scanning 250 fps (100 lines)
    199 fps (134 lines)
    174 fps (158 lines)
    126 fps (230 lines)
    121 fps (240 lines)
    93 fps (324 lines)
    Off (59.94) (494 lines)
    Binning Off, On, Ext On
    Pixel Clock Frequency 24.5454 MHz
    Sync Signal Frequency Horizontal: 31.469 kHz
    Vertical: 59.94 kHz
    Horizontal Resolution 480 TVL
    Output Signal 8-bit Digital RGB Camera Link
    Sync Signal Output FVAL/LVAL/DVAL (positive polarity) Pixel Clock
    External Sync Input HD: CC3 VD: CC4 (LVDS input) Negative polarity
    External Trigger Input CC1 (LVDS input) More than 2µs pulse width
    Partial Scanning Control CC2 (LVDS input)
    Gamma Correction On/ Off
    S/N Ratio 62 dB Standard (G)
    White Balance AWB, Manual
    Gain Manual (0 to 18 dB), Off (0 dB)
    Electronic Shutter Manual(1/100 to 1/100,000 sec)
    Synchro Scan (1 to 512 Frames)
    Sensitivity F6.8 Standard
    (2,000 lux, 3,000 K)
    Noise Reduction On / Off
    Minimum Illumination 14 lux (f2.2 +18 dB, 3,000 K)
    Lens Mount C-Mount flange back 17.526 mm in air
    Ambient Temperature 32 to 104˚F (0 to 40˚C)
    Ambient Humidity Less than 90%
    Input Power 12 VDC ±10%
    PoCL or DC Connector
    Interface Serial data interface
    TC(RXD) TFG(TXD)
    Power Consumption Approximately 3.2 W Normal
    Approximately 3.4 W Partial Scan
    Class FCC Class A, CE
    Dimensions (WxHxD) 1.73 x 1.73 x 3.07" (44.00 x 44.00 x 78.00 mm)
    Weight 0.35 lb (0.15 kg)
    Packaging Info
    Package Weight 0.8 lb
    Box Dimensions (LxWxH) 6.8 x 4.8 x 3.9"
    The user manual for the Toshiba IK-TF5P2 3CCD Progressive Scan Color Camera IK-TF5P2 can be downloaded in .pdf format if it did not come with your new industrial & multi-purpose cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Toshiba users keep a unique electronic library for Toshiba industrial & multi-purpose camerass, where you can use our link to download the user manual for the Toshiba IK-TF5P2 3CCD Progressive Scan Color Camera IK-TF5P2.

    The user manual lists all of the functions of the Toshiba IK-TF5P2 3CCD Progressive Scan Color Camera IK-TF5P2, all the basic and advanced features and tells you how to use the industrial & multi-purpose cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Toshiba service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Toshiba IK-TF5P2 3CCD Progressive Scan Color Camera IK-TF5P2. User manuals are also available on the Toshiba website under Professional Video - Industrial & Multi-Purpose Cameras.
