User manual Toshiba IK-WR31A 3MP True Day/Night Indoor/Outdoor IK-WR31A

Operating instructions and pdf manual for use - Toshiba IK-WR31A 3MP True Day/Night Indoor/Outdoor IK-WR31A User manual, User manual Toshiba IK-WR31A 3MP True Day/Night Indoor/Outdoor IK-WR31A, Toshiba, IK-WR31A, 3MP, True, Day/Night, Indoor/Outdoo


User manual for Toshiba IK-WR31A 3MP True Day/Night Indoor/Outdoor IK-WR31A

Toshiba IK-WR31A 3MP True Day/Night Indoor/Outdoor IK-WR31A
  • Manufacturer: Toshiba
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Wired IP Cameras
  • Safety instructions
  • Startup and operation of the wired ip cameras
  • Tips for setting up your Toshiba
  • Settings and expert assistance
  • Contact Toshiba service
  • Troubleshooting
  • Warranty information
  • Price: 733 USD
We recommend checking out our discussion threads on the Toshiba IK-WR31A 3MP True Day/Night Indoor/Outdoor IK-WR31A, which address similar problems with connecting and setting up Wired IP Cameras Toshiba.



User manual for the Toshiba IK-WR31A 3MP True Day/Night Indoor/Outdoor IK-WR31A

The user manual for the Toshiba IK-WR31A 3MP True Day/Night Indoor/Outdoor IK-WR31A provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired IP Cameras.

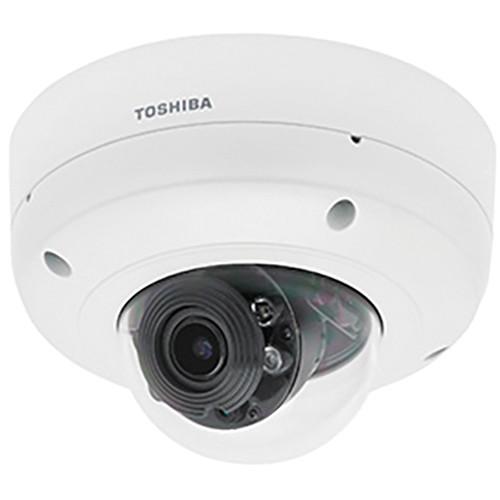

The Toshiba IK-WR31A 3MP True Day/Night Indoor/Outdoor Vandal Dome IP Camera with Smart Codec comes with a 1/3" CMOS image sensor and 2.8 to 12mm lens for capturing images in up to 2048 x 1536. It offers 4x optical remote zoom and remote focus for coverage of large surveillance areas. The camera comes with adaptive IR LEDs that automatically adjust the light intensity according to the zoom for avoiding over-exposure of close objects. In the Hallway View mode, the camera rotates its view by 90° for portrait orientation. This feature allows for more coverage for areas such as retail aisles, warehouses, or office corridors.
If you own a Toshiba wired ip cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Toshiba IK-WR31A 3MP True Day/Night Indoor/Outdoor IK-WR31A in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Toshiba IK-WR31A 3MP True Day/Night Indoor/Outdoor IK-WR31A:
Camera
Image Sensor 1/3" CMOS 3 MP
Effective Pixels 2048 x 1536 (4:3)
Lens Type Remote zoom, remote focus
Focal Length 2.8 to 12 mm
Aperture f/1.8
Angle of View Horizontal: 29 to 82°
Vertical: 22 to 61°
Zoom 4x optical, 3x digital
Day/Night Yes with IR cut filter
Minimum Illumination 0.03 lux @ f/1.8 (Night mode, IR off, gain 100%, 1/30 sec)
0 lux with IR on
IR Illuminator Adaptive IR LED
IR Range 66' (20 m)
Wide Dynamic Range True WDR
White Balance Manual, AWB (2,500 to 10,000K)
Automatic Gain Control Auto
Image Settings BLC, Privacy Masking, Motion Detection, Tamper Protection
Video
Compression H.264 Smart Codec, H.264, MJPEG
Maximum Frame Rate 20 fps @2048 x 1536
30 fps @1920 x 1080
60 fps @1280 x 720 (WDR off)

These values vary in accordance with the object, image quality, network environment, and performance of the personal computer used.

Resolutions 2048 x 1536, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768, 640 x 480, 320 x 240
Image Rotation Hallway, Flip, Mirror View
Video Streaming 3 streams
Audio
Audio Compression G.726, G711
Audio In/Out Built-in microphone
Microphone In (plug-in power 3.3 V, 200 kOhm)
Line Out (1 V RMS)
Network
Protocols IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, and 802.1X
ONVIF Profile-S (test tool v14.06)Profile S
Maximum User Access 10 clients
Bandwidth Control QoS, CoS
Camera Set-up Program Installation wizard
Plug-In Support Active X
Alarm Recording FTP, email, microSD card
Interface
Digital In/Out 1 in / 1 out
Ethernet Connector 10Base-T/100Base-TX, RJ45 connector
Card Slot Supports microSD card up to 64 GB (not included)
General
System Requirements Web Browser Support: Internet Explorer version 8.0 or later
Supported OS: Windows XP, Vista Business, Windows 7 professional
Approvals FCC Class B, IC Class B
UL 60950-1
CSA C22.2 No. 60950-1
Vandal Resistant IK10
Environmental IP66
Power Requirements 802.3af PoE, 12 VDC ± 10%
Power Consumption 12 VDC / 2.1 A
Operating Temperature PoE: -4 to 122°F (-20 to 50°C)
12 VDC: -22 to 122°F (-30 to 50°C)
Operating Humidity Approximately 90%
Dimensions H x D: 4.5 x 6.8" (11.5 x 17.3 cm)
Weight 2.89 lb (1.31 kg)
The user manual for the Toshiba IK-WR31A 3MP True Day/Night Indoor/Outdoor IK-WR31A can be downloaded in .pdf format if it did not come with your new wired ip cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Toshiba users keep a unique electronic library for Toshiba wired ip camerass, where you can use our link to download the user manual for the Toshiba IK-WR31A 3MP True Day/Night Indoor/Outdoor IK-WR31A.

The user manual lists all of the functions of the Toshiba IK-WR31A 3MP True Day/Night Indoor/Outdoor IK-WR31A, all the basic and advanced features and tells you how to use the wired ip cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Toshiba service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Toshiba IK-WR31A 3MP True Day/Night Indoor/Outdoor IK-WR31A. User manuals are also available on the Toshiba website under Surveillance - Surveillance Video - Wired IP Cameras.
