User manual for the Toshiba Surveillix EAV16-480-2T 960H Embedded EAV16-480-2T
The user manual for the Toshiba Surveillix EAV16-480-2T 960H Embedded EAV16-480-2T provides
necessary instructions for the proper use of the product Surveillance - Surveillance Video - Digital Video Recorders (DVRs).

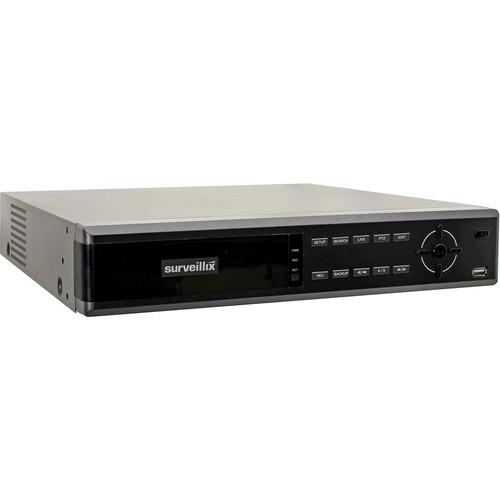

The 2TB Surveillix EAV16-480-2T 960H Embedded Analog Video Recorder from Toshiba is a powerful recording solution engineered for easy setup and operation. It features one-touch instant backup and 960H resolution for fast archiving and high-quality video. The recorder is compatible with the Surveillix Central Station (SCS) video management software and MySurveillix for remote access and multi-site deployment for a complete surveillance solution.
If you own a Toshiba digital video recorders (dvrs) and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Toshiba Surveillix EAV16-480-2T 960H Embedded EAV16-480-2T in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Toshiba Surveillix EAV16-480-2T 960H Embedded EAV16-480-2T:
Specifications
Video Channels
Analog: 16
Looping Outputs (BNC)
16
Local Display
1 x VGA, 1 x HDMI 2 x BNC (Spot monitor, TV out)
Recording Resolution
960H (960 x 480), D1 (704 x 460), HD1 (720 x 240), 2CIF (704 x 240), CIF (352 x 240)
Recording Frame Rate
480 fps at 960H and D1 resolution
Maximum Frame Rate
30 fps at 960H and D1 resolution per channel Live View Frame Rate: 480 fps
Compression Format
Analog: H.264
Storage Capacity
Up to 8 TB 1 x 2 TB HDD included
Number of HDDs
2 internal
Export Formats
AVI, JPEG
Audio Input / Output
1 / 1 RCA
USB
USB 2.0
Alarm Input / Output
4 / 1
RS485
Terminal block
Ethernet
1 Gigabit
Browser
Internet Explorer
Smartphone Apps
iPhone/Android
Tablet Apps
iPad/Android
VMS Software
Surveillix SCS
Operating System
Embedded Linux
Screen
Live & Playback: 16 (local display), 16 (client software)
User Interface Control
Mouse and Wireless IR Remote
Approvals
UL, cUL, FCC
Operating Temperature
41 to 104°F (5 to 40°C)
Humidity
10 to 80% RH
Power Input
12 VDC, 5 A
Power Consumption
22 W
Dimensions (H x W x D)
3.5 x 16.5 x 15.75" (8.9 x 41.9 x 40.01 cm)
Weight
9.6 lb (4.4 kg)
The user manual for the Toshiba Surveillix EAV16-480-2T 960H Embedded EAV16-480-2T can be downloaded in .pdf
format if it did not come with your new digital video recorders (dvrs), although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Toshiba users keep a unique electronic library
for Toshiba digital video recorders (dvrs)s,
where you can use our link to download the user manual for the Toshiba Surveillix EAV16-480-2T 960H Embedded EAV16-480-2T.
The user manual lists all of the functions of the Toshiba Surveillix EAV16-480-2T 960H Embedded EAV16-480-2T,
all the basic and advanced features and tells you how to use the digital video recorders (dvrs).
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Toshiba service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Toshiba Surveillix EAV16-480-2T 960H Embedded EAV16-480-2T. User manuals are also
available on the Toshiba website under Surveillance - Surveillance Video - Digital Video Recorders (DVRs).
