User manual for Tote Vision LED-1003HD 9.7" LED-Backlit LCD LED-1003HD
- Manufacturer: Tote Vision
- Basic description and contents of package
- Product classification: A/V Presentation - Commercial Monitors & Displays - Commercial Monitors
- Safety instructions
- Startup and operation of the commercial monitors
- Tips for setting up your Tote Vision
- Settings and expert assistance
- Contact Tote Vision service
- Troubleshooting
- Warranty information
- Price: 479 USD
|
We recommend checking out our discussion threads on the Tote Vision LED-1003HD 9.7" LED-Backlit LCD LED-1003HD,
which address similar problems with connecting and setting up Commercial Monitors Tote Vision.
|
User manual for the Tote Vision LED-1003HD 9.7" LED-Backlit LCD LED-1003HD
The user manual for the Tote Vision LED-1003HD 9.7" LED-Backlit LCD LED-1003HD provides
necessary instructions for the proper use of the product A/V Presentation - Commercial Monitors & Displays - Commercial Monitors.

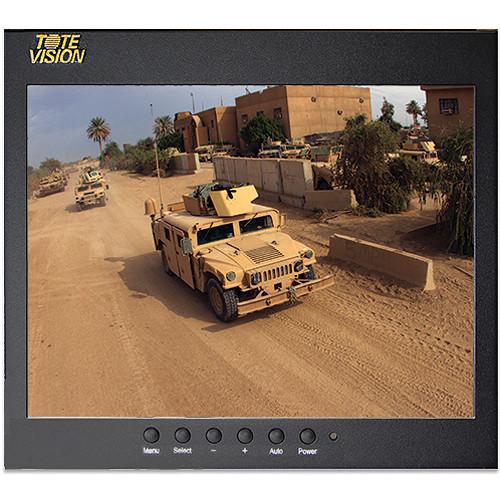

The LED-1003HD 9.7” LED-Backlit LCD Monitor from Tote Vision supports analog and digital signals and can display high definition 1080i/p images. This LED-backlit display features 3D interlace comb filter, DNR, and 4H filter.
|
If you own a Tote Vision commercial monitors and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Tote Vision LED-1003HD 9.7" LED-Backlit LCD LED-1003HD in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Tote Vision LED-1003HD 9.7" LED-Backlit LCD LED-1003HD:
| Mount | VESA: 75 x 75 mm and 100 x 100 mm, removable desk stand, 1/4 - 20 pad on top | | Display | 9.7" (24.6 cm) TFT Active Matrix | | Resolution | 1024 x 768 | | Native Aspect Ratio | 4:3 | | Visible Screen Size | 7.8 x 5.9" (198.1 x 149.8 mm) | | Backlight | LED (30K) | | Brightness | 400 cd/m2 (Nit) | | Contrast | 1,000:1 | | Dot Pitch | 0.192 (H) x 0.192 (V) mm | | Color Depth | 262,144 | | Number of Pixels | 786,432 | | Response Time | Rising / Falling: 2 ms | | Viewing Angle | 89°/89°/89°/89° (L/R/T/B) | | Digital Signal Processing (DSP) | 3D interlace comb, DNR, and 4H filter | | Speakers | 2 | | Connectors | HDMI: 1 x input
Composite: 2 x BNC inputs and outputs
VGA: 1 x 15-pin D-sub input
Audio: 1 x 3.5 mm PC Input, 1 x L/R RCA output | | Power | 2.1 mm DC input | | Remote Control | Infrared | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Power Requirements | 12 VDC, 2 A negative ground | | Power Consumption | 30 W maximum | | Case | Metal | | Dimensions | 8.8 x 7.8 x 1.9 (223.5 x 198.1 x 48.2 mm) | | Weight | 3.25 lb (1.47 kg) | | Package Weight | 5.4 lb | | Box Dimensions (LxWxH) | 12.3 x 12.3 x 4.0" | |
The user manual for the Tote Vision LED-1003HD 9.7" LED-Backlit LCD LED-1003HD can be downloaded in .pdf
format if it did not come with your new commercial monitors, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Tote Vision users keep a unique electronic library
for Tote Vision commercial monitorss,
where you can use our link to download the user manual for the Tote Vision LED-1003HD 9.7" LED-Backlit LCD LED-1003HD.
The user manual lists all of the functions of the Tote Vision LED-1003HD 9.7" LED-Backlit LCD LED-1003HD,
all the basic and advanced features and tells you how to use the commercial monitors.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Tote Vision service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Tote Vision LED-1003HD 9.7" LED-Backlit LCD LED-1003HD. User manuals are also
available on the Tote Vision website under A/V Presentation - Commercial Monitors & Displays - Commercial Monitors.
Question and answer discussion forum concerning user instructions and resolving problems with the Tote Vision LED-1003HD 9.7" LED-Backlit LCD LED-1003HD
Post new comment to Tote Vision LED-1003HD 9.7" LED-Backlit LCD LED-1003HD
| Subject: Troubleshooiting | | Date: 16.08.2024 03:42:50 | Author: Oz | | Hello, we currently have a few tote vision 1003hd in use on our floors & would like a manual for troubleshooting, thank you. | | Reply |
| Subject: Instructions | | Date: 04.08.2022 01:13:07 | Author: Linda | | Manual | | Reply |
