User manual for the TP-Link ARCHER C3200 AC3200 Wireless Tri-Band ARCHER C3200

The user manual for the TP-Link ARCHER C3200 AC3200 Wireless Tri-Band ARCHER C3200 provides necessary instructions for the proper use of the product Computers & Solutions - Networking - Wireless Routers.

With integrated tri-band technology, the ARCHER C3200 AC3200 Wireless Tri-Band Gigabit Router from TP-Link supports one 2.4 GHz band and two 5 GHz bands. With two 5 GHz bands more devices can take advantage of enhanced 1300 Mbps data transfer rates for enhanced streaming, downloading, and more. The Archer C3200 also implements beamforming technology in which the router directs the Wi-Fi signal to the end user's device for a stronger, more reliable connection. In addition to dual-band functionality, the Archer C3200 features 802.11a/b/g/n/ac standards compatibility allowing you to connect nearly any Wi-Fi enabled device to your network.

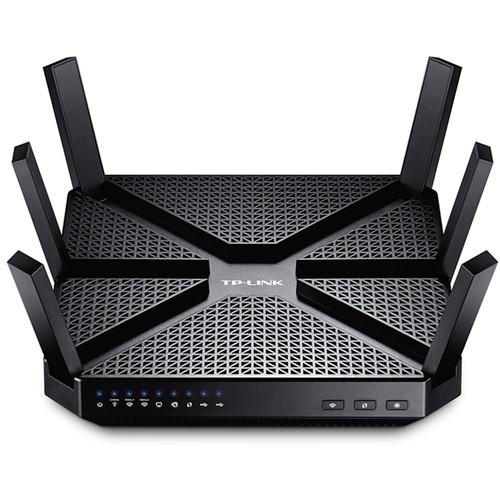

The Archer C3200 Router comes equipped with six antennas: three dual band and three single band. On the back of the router you can connect up to four Ethernet enabled devices to any of the four Gigabit Ethernet ports for a fast, reliable wired connection. Along with Gigabit Ethernet connectivity, you can connect USB compatible peripherals such as hard drives and printers to either the USB 3.0 or USB 2.0 ports.
If you own a TP-Link wireless routers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the TP-Link ARCHER C3200 AC3200 Wireless Tri-Band ARCHER C3200 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for TP-Link ARCHER C3200 AC3200 Wireless Tri-Band ARCHER C3200Download user manual for TP-Link ARCHER C3200 AC3200 Wireless Tri-Band ARCHER C3200
(PDF file, 12.7 MB)
Additional parameters of the TP-Link ARCHER C3200 AC3200 Wireless Tri-Band ARCHER C3200:
Hardware
Interfaces 4 x 10/100/1000 Mbps LAN ports
1 x 10/100/1000 Mbps WAN port
1 x USB 3.0 port
1 x USB 2.0 port
Button Wireless On/Off button
Power On/off button
LED On/off button
WPS button
Reset button
Antenna 3 x dual band fixed antennas
3 x single band fixed antennas
External Power Supply 12 V / 5 A
Wireless Specifications
Wireless Standards IEEE 802.11ac/n/a 5 GHz
IEEE 802.11b/g/n 2.4 GHz
Frequency 2.4 GHz and 5 GHz Band 1 / Band 4
Signal Rate 5 GHz Band 1: Up to 1300 Mbps
5 GHz Band 2: Up to 1300 Mbps
2.4 GHz: Up to 600 Mbps
Reception Sensitivity 5 GHz:
11a 6 Mbps: -94 dBm
11a 54 Mbps: -76 dBm
11ac HT20: -68 dBm
11ac HT40: -64 dBm
11ac HT80: -60 dBm
2.4 GHz
11g 54M: -77 dBm
11n HT20: -73 dBm
11n HT40: -71 dBm
Wireless Functions Enable/Disable Wireless Radio, WMM, Wireless Statistics
Wireless Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryption
Transmission Power CE:
<20 dbm (2.4 ghz)
<23 dbm (5 ghz)
FCC:
<30 dBm
Guest Network 1 x 2.4 GHz guest network
2 x 5 GHz guest network
Software Specifications
Quality of Service (QoS) WMM, bandwidth control
WAN Type Dynamic IP / Static IP / PPPoE / PPTP (Dual Access) / L2TP (Dual Access)
Management Access Control
Local Management
Remote Management
DHCP Server, Client, DHCP Client List, Address Reservation
Port Forwarding Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS DynDns, NO-IP
VPN Pass-Through PPTP, L2TP, IPSec
Access Control Parental Control, Local Management Control, Host List, Access Schedule, Rule Management
Protocols Supports IPv4 and IPv6
USB Sharing Support Samba (Storage) / FTP Server / Media Server / Printer Server
Other Specifications
Certifications CE, FCC, RoHS
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, Windows 8, MAC OS, NetWare, UNIX or Linux
Temperature & Humidity Operating Temperature: 32 to 104°F / 0 to 40°C
Storage Temperature: -40 to 158°F / -40 to 70°C
Operating Humidity: 10 to 90% non-condensing
Storage Humidity: 5 to 95% non-condensing
Dimensions & Weight
Dimensions 7.9 x 7.9 x 1.5" / 200 x 200 x 39 mm
Weight Not specified by manufacturer
Packaging Info
Package Weight 3.1 lb
Box Dimensions (LxWxH) 12.362 x 9.449 x 2.835"
The user manual for the TP-Link ARCHER C3200 AC3200 Wireless Tri-Band ARCHER C3200 can be downloaded in .pdf format if it did not come with your new wireless routers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other TP-Link users keep a unique electronic library for TP-Link wireless routerss, where you can use our link to download the user manual for the TP-Link ARCHER C3200 AC3200 Wireless Tri-Band ARCHER C3200.

The user manual lists all of the functions of the TP-Link ARCHER C3200 AC3200 Wireless Tri-Band ARCHER C3200, all the basic and advanced features and tells you how to use the wireless routers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from TP-Link service.
