User manual TP-Link Archer C5 AC1200 Wireless Dual Band Gigabit ARCHER C5

Operating instructions and pdf manual for use - TP-Link Archer C5 AC1200 Wireless Dual Band Gigabit ARCHER C5 User manual, User manual TP-Link Archer C5 AC1200 Wireless Dual Band Gigabit ARCHER C5, TP-Link, Archer, C5, AC1200, Wireless, Dual, Band,


User manual for TP-Link Archer C5 AC1200 Wireless Dual Band Gigabit ARCHER C5

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.
TP-Link Archer C5 AC1200 Wireless Dual Band Gigabit ARCHER C5
  • Manufacturer: TP-Link
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Networking - Wireless Routers
  • Safety instructions
  • Startup and operation of the wireless routers
  • Tips for setting up your TP-Link
  • Settings and expert assistance
  • Contact TP-Link service
  • Troubleshooting
  • Warranty information
  • Price: 80 USD
We recommend checking out our discussion threads on the TP-Link Archer C5 AC1200 Wireless Dual Band Gigabit ARCHER C5, which address similar problems with connecting and setting up Wireless Routers TP-Link.



User manual for the TP-Link Archer C5 AC1200 Wireless Dual Band Gigabit ARCHER C5

The user manual for the TP-Link Archer C5 AC1200 Wireless Dual Band Gigabit ARCHER C5 provides necessary instructions for the proper use of the product Computers & Solutions - Networking - Wireless Routers.

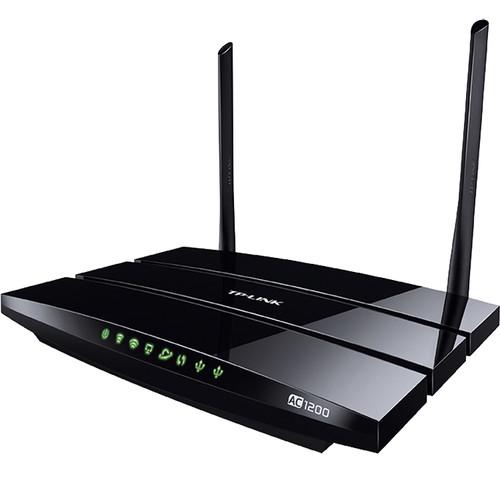

The TP-link Archer C5 AC1200 Wireless Dual Band Gigabit Router features 802.11ac wireless speeds that is three times faster than wireless 802.11n. It combines the 2.4 GHz and 5 GHz bands to provide a wireless data transfer rate of up to 1200 Mbps. These features help you watch HD videos and play fast-paced games without any lag. Built with two antennas, the router uses the external antennas to support the 5 GHz band for intensive tasks while the 2.4 GHz band is designed for simple tasks such as web browsing and emailing.

The Archer C5 router connects to your Internet modem using the single WAN port and offers four Gigabit Ethernet jacks that provide access to the Internet for computers having only a wired RJ-45 port. In addition, it comes with two USB 2.0 ports so you can share your printer or USB storage device. For convenience, the TP-LINK Tether app provides access to the router using your iOS and Android devices. It also lets you set up the router, configure parental controls, share media as well as checking the status of the router and settings. Included with the router are two detachable antennas, a power supply, resource CD, and an Ethernet cable.
If you own a TP-Link wireless routers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the TP-Link Archer C5 AC1200 Wireless Dual Band Gigabit ARCHER C5 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for TP-Link Archer C5 AC1200 Wireless Dual Band Gigabit ARCHER C5Download user manual for TP-Link Archer C5 AC1200 Wireless Dual Band Gigabit ARCHER C5
(PDF file, 3.58 MB)
Additional parameters of the TP-Link Archer C5 AC1200 Wireless Dual Band Gigabit ARCHER C5:
Specifications
Interface 4 x 10/100/1000 Mbps LAN Ports
1 x 10/100/1000 Mbps WAN Port
2 x USB 2.0 Ports
Buttons WPS/Reset Button
Wireless On/Off Switch
Power On/Off Button
External Power Supply 12 VDC, 2.5 A
Antenna Type 2 x dual band detachable antennas (RP-SMA)
Wireless Standards IEEE 802.11ac/n/a 5 GHz
IEEE 802.11n/g/b 2.4 GHz
Frequency 5 GHz and 2.4 GHz
Signal Rate 5 GHz: up to 867 Mbps
2.4 GHz: up to 300 Mbps
Reception Sensitivity 5 GHz
11a 54 Mbps: -74 dBm
11ac HT20: -67 dBm
11ac HT40: -63 dBm
11ac HT80: -59 dBm
11n HT20: -71 dBm
11n HT40: -69 dBm
2.4 GHz
11g 54 M: -76 dBm
11n HT20: -73 dBm
11n HT40: -71 dBm
Transmit Power CE
< 20 dBm (2.4 GHz)
< 23 dBm (5 GHz)
FCC
< 30 dBm
Wireless Functions Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
Wireless Security 64/128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK encryption
WAN Type Dynamic IP, Static IP, PPPoE, L2TP(Dual Access), PPTP (Dual Access)
DHCP Server, Client, DHCP Client List, Address Reservation
Quality of Service (QoS) WMM, Bandwidth Control
Port Forwarding Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS DynDns, Comexe, NO-IP
VPN Pass-through PPTP, L2TP, IPSec
Access Control Parental Control, Local Management Control, Host List, Access Schedule, Rule Management
Firewall Security DoS, SPI Firewall
IP Address Filter / MAC Address Filter / Domain Filter
IP and MAC Address Binding
Protocols Supports IPv4 and IPv6
USB Sharing Support Samba (storage), FTP server, media server, printer server
Management Access control
Local management
Remote management
Guest Network 1 x 2.4 GHz guest network
1 x 5 GHz guest network
Certification CE
FCC
RoHS
Environmental Operating Temperature: 32 to 104°F / 0 to 40°C
Storage Temperature: -40 to 158°F / -40 to 70°C
Operating Humidity: 10 to 90% non-condensing
Storage Humidity: 5 to 90% non-condensing
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista, 7, and 8
MAC OS
NetWare
UNIX or Linux
Dimensions (WxDxH) 9.6 x 6.4 x 1.3" / 243.8 x 162.6 x 33.0 mm
Packaging Info
Package Weight 2.45 lb
Box Dimensions (LxWxH) 12.5 x 9.5 x 2.8"
The user manual for the TP-Link Archer C5 AC1200 Wireless Dual Band Gigabit ARCHER C5 can be downloaded in .pdf format if it did not come with your new wireless routers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other TP-Link users keep a unique electronic library for TP-Link wireless routerss, where you can use our link to download the user manual for the TP-Link Archer C5 AC1200 Wireless Dual Band Gigabit ARCHER C5.

The user manual lists all of the functions of the TP-Link Archer C5 AC1200 Wireless Dual Band Gigabit ARCHER C5, all the basic and advanced features and tells you how to use the wireless routers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from TP-Link service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the TP-Link Archer C5 AC1200 Wireless Dual Band Gigabit ARCHER C5. User manuals are also available on the TP-Link website under Computers & Solutions - Networking - Wireless Routers.
