User manual for the TP-Link Archer C7 AC1750 Wireless Dual Band Gigabit ARCHER C7
The user manual for the TP-Link Archer C7 AC1750 Wireless Dual Band Gigabit ARCHER C7 provides
necessary instructions for the proper use of the product Computers & Solutions - Networking - Wireless Routers.

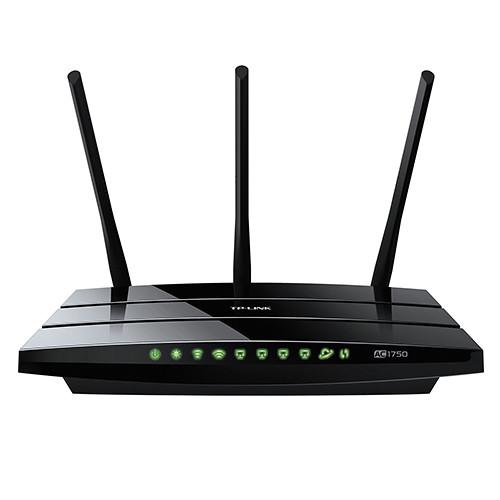

This Archer C7 AC1750 Wireless Dual Band Gigabit Router from TP-Link features dual band functionality along with the enhanced 802.11ac Wi-Fi standard providing improved wireless data transfer speeds up to 1300 Mbps. Along with the 802.11ac Wi-Fi standard, you also benefit from 802.11a/b/g/n Wi-Fi standards allowing for seamless connectivity with a wide variety of Wi-Fi enabled devices. Additionally, the Archer C7 supports both 2.4 GHz and 5 GHz frequencies making it easy to allocate more data intensive tasks to the less congested 5 GHz frequency.
Along with enhanced wireless coverage, you also benefit from four full gigabit Ethernet ports located on the back of the router. Whether connecting to the router via Wi-Fi or the integrated gigabit Ethernet ports, you can rest assured your connection is secure as this router supports WEP, WPA / WPA2, and WPA / WPA2-PSK encryption standards. Along with enhanced encryption standards, this router also supports a variety of access control methods including parental controls, local management control, host list, access schedule, and rule management giving you complete administrative rights to your entire network.
|
If you own a TP-Link wireless routers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the TP-Link Archer C7 AC1750 Wireless Dual Band Gigabit ARCHER C7 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the TP-Link Archer C7 AC1750 Wireless Dual Band Gigabit ARCHER C7:
| Interface | 4 x 10/100/1000 Mbps LAN ports
1 x 10/100/1000 Mbps WAN port
2 x USB 2.0 ports | | Button | WPS / reset button
Wireless on / off switch
Power on / off button | | External Power Supply | 12 VDC / 2.5 A | | Antenna Type | Three 5 GHz 5 dBi detachable antennas (RP-SMA)
Three 2.4 GHz internal antennas | | Wireless Standards | IEEE 802.11 ac/n/a @ 5 GHz
IEEE 802.11 b/g/n @ 2.4 GHz | | Frequency | 2.4 GHz and 5 GHz | | Signal Rate | 5 GHz: Up to 1300 Mbps
2.4 GHz: Up to 450 Mbps | | EIRP | <20 dBm (EIRP) | | Reception Sensitivity | 5 GHz
11a 6 Mbps: -96 dBm
11a 54 Mbps: -79 dBm
11ac HT20: -71 dBm
11ac HT40: -66 dBm
11ac HT80: -63 dBm
2.4 GHz
11g 54M: -77 dBm
11n HT20: -74 dBm
11n HT40: -72 dBm | | Wireless Functions | Enable / disable wireless radio
WDS bridge
WMM
Wireless statistics | | Wireless Security | 64/128-bit WEP,WPA / WPA2,WPA-PSK/ WPA2-PSK encryption | | WAN Type | Dynamic IP / static IP / PPPoE / PPTP(dual access) / L2TP(dual access) / BigPond | | DHCP | Server, client, DHCP client list, address reservation | | Quality of Service (QoS) | WMM, bandwidth control | | Port Forwarding | Virtual server, port triggering, UPnP, DMZ | | Dynamic DNS | DynDns, Comexe, NO-IP | | VPN Pass-Through | PPTP, L2TP, IPSec | | Access Control | Parental control, local management control, host list, access schedule, rule management | | Firewall Security | DoS, SPI firewall
IP address filter / MAC address filter / domain filter
IP and MAC address binding | | Protocols | Supports IPv4 and IPv6 | | USB Sharing | Support Samba (storage) / FTP server / media server / printer server | | Management | Access control
Local management
Remote management | | Guest Network | 1 x 2.4 GHz guest network
1 x 5 GHz guest network | | Power | 100-240 VAC | | Certification | CE, FCC, RoHS | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -40 to 158°F / -40 to 70°C | | Operating Humidity | 10 to 90% non-condensing | | Storage Humidity | 5 to 90% non-condensing | | Dimensions (WxDxH) | 9.6 x 6.4 x 1.3" / 243.0 x 160.6 x 32.5 mm | | Weight | Not specified by manufacturer | | Package Weight | 2.3 lb | | Box Dimensions (LxWxH) | 12.3 x 9.6 x 2.7" | |
