User manual TP-Link Archer D7 AC1750 Wireless Dual Band Gigabit ARCHER D7

Operating instructions and pdf manual for use - TP-Link Archer D7 AC1750 Wireless Dual Band Gigabit ARCHER D7 User manual, User manual TP-Link Archer D7 AC1750 Wireless Dual Band Gigabit ARCHER D7, TP-Link, Archer, D7, AC1750, Wireless, Dual, Band,

User manual for TP-Link Archer D7 AC1750 Wireless Dual Band Gigabit ARCHER D7

TP-Link Archer D7 AC1750 Wireless Dual Band Gigabit ARCHER D7
  • Manufacturer: TP-Link
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Networking - Wireless Routers
  • Safety instructions
  • Startup and operation of the wireless routers
  • Tips for setting up your TP-Link
  • Settings and expert assistance
  • Contact TP-Link service
  • Troubleshooting
  • Warranty information
  • Price: 163 USD
We recommend checking out our discussion threads on the TP-Link Archer D7 AC1750 Wireless Dual Band Gigabit ARCHER D7, which address similar problems with connecting and setting up Wireless Routers TP-Link.


User manual for the TP-Link Archer D7 AC1750 Wireless Dual Band Gigabit ARCHER D7

The user manual for the TP-Link Archer D7 AC1750 Wireless Dual Band Gigabit ARCHER D7 provides necessary instructions for the proper use of the product Computers & Solutions - Networking - Wireless Routers.

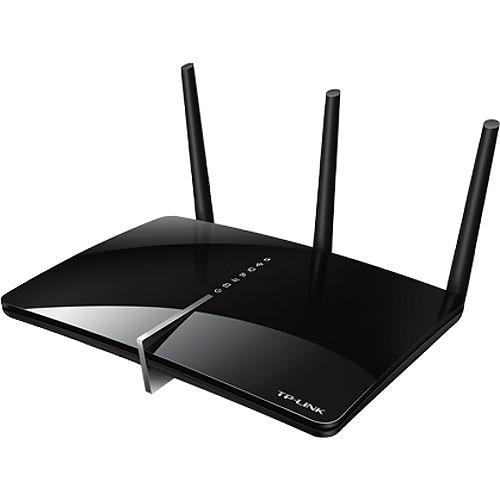

The TP-link Archer D7 AC1750 Wireless Dual Band Gigabit ADSL2+ Modem Router is built with an ADSL modem and router as well as RJ-45 ports and three dual band external antennas that allow you to create a wired and wireless network. It provides ADSL and LAN/WAN ports that offer greater choices when choosing an Internet service provider by allowing you to connect via ADSL, cable, or fiber modem. Featuring 802.11ac speeds, you can watch HD videos and play fast-paced games without any lag when connected wirelessly to the router. In addition, it also supports 802.11a/b/g/n so you can connect all your other Wi-Fi enabled devices to the network. Equipped with antennas and amplifiers, you can experience wireless performance in every direction with better coverage in your home or office.

The router combines 2.4 GHz and 5 GHz bands to provide a wireless data transfer rate up to 1750 Mbps. By offering dual bands, it can better handle multiple users accessing the network. The 5 GHz band provides a wireless speed up to 1300 Mbps for intensive tasks, while the 2.4 GHz band offers a speed up to 450 Mbps for simpler tasks such as web browsing and emailing. When a computer has only a wired RJ-45 port, the Archer D7 router offers four (three when connected to a fiber or cable modem) Gigabit LAN Ethernet ports for providing access to the network. Furthermore, it comes with two USB 2.0 ports so that you can share your printer or USB storage device. For security, this router supports various encryptions and lets you create a guest network to protect your Wi-Fi access code and other personal data. Included with the router are a telephone cable, Ethernet cable, external splitter, power adapter, and a resource CD to help you configure the network settings in just a few minutes.
If you own a TP-Link wireless routers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the TP-Link Archer D7 AC1750 Wireless Dual Band Gigabit ARCHER D7 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for TP-Link Archer D7 AC1750 Wireless Dual Band Gigabit ARCHER D7Download user manual for TP-Link Archer D7 AC1750 Wireless Dual Band Gigabit ARCHER D7
(PDF file, 2.47 MB)
Additional parameters of the TP-Link Archer D7 AC1750 Wireless Dual Band Gigabit ARCHER D7:
Specifications
    Interface 3 x 10/100/1000 Mbps RJ-45 LAN Ports
    1 x 10/100/1000 Mbps RJ-45 WAN/LAN Port
    1 x RJ-11 Port
    2 x USB 2.0 Ports
    Buttons WPS button
    Wi-Fi On/Off button
    Power On/Off button
    RESET button
    External Power Supply 12 VDC, 2.5 A
    IEEE Standards IEEE 802.3
    802.3u
    802.3ab
    ADSL Standard Full-rate ANSI T1.413 Issue 2
    ITU-T G.992.1(G.DMT)
    ITU-T G.992.2(G.Lite)
    ITU-T G.994.1 (G.hs)
    ITU-T G.995.1
    ADSL2 Standards ITU-T G.992.3 (G.DMT.bis)
    ITU-T G.992.4 (G.lite.bis)
    ADSL2+ Standards ITU-T G.992.5
    Antenna Type 3 x detachable dual band external antennas
    Antenna Gain 3 x 2 dBi for 2.4 GHz
    3 x 3 dBi for 5 GHz
    Wireless Standards IEEE 802.11ac/n/a 5 GHz
    IEEE 802.11n/g/b 2.4 GHz
    Wireless Speeds 5 GHz: Up to 1300 Mbps
    2.4 GHz: Up to 450 Mbps
    Frequency 2.4 GHz and 5 GHz
    Transmit Power < 20 dBm (EIRP)
    Wireless Functions Enable/Disable wireless radio
    WDS bridge
    WMM
    Wireless statistics
    Wireless Security 64/128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK encryption, wireless MAC filtering
    Wireless Modes Support 2.4 GHz and 5 GHz Wireless Schedule
    Operating Modes ADSL modem router
    Wireless router
    DHCP Server, Client, DHCP Client List, Address Reservation, DHCP relay
    Quality of Service (QoS) ATM QoS, Traffic Control (IP QoS)
    Port Forwarding Virtual Server, Port Triggering, DMZ, ALG, UPnP
    Dynamic DNS DynDns, NO-IP
    VPN Pass-through PPTP, L2TP, IPSec Passthrough
    ATM / PPP Protocols ATM Forum UNI3.1/4.0
    PPP over ATM (RFC 2364)
    PPP over Ethernet (RFC2516)
    IPoA (RFC1577/2225)
    MERIPoE (RFC 1483 Routed)
    Bridge (RFC1483 Bridge)
    PVC - up to 8 PVCs
    Security NAT Firewall
    Access Control
    MAC / IP / URL filtering
    Denial of Service (DoS)
    SYN Flooding
    Ping of Death
    IP and MAC address binding
    Advanced Functions Parental Control
    Network Address Translation (NAT)
    Port Mapping (grouping)
    Static Routing
    RIP v1/v2 (optional)
    DNS Relay
    DDNS
    IGMP v1/v2/v3
    USB Sharing Support Samba(Storage)
    FTP Server
    Media Server
    Printer Server
    Management Web Based Configuration(HTTP)
    Remote management
    Command Line Interface
    SSL for TR-069
    SNMP v1/2c
    Web Based Firmware upgrade
    Diagnostic tools
    Guest Network 1 x 2.4 GHz guest network
    1 x 5 GHz guest network
    IPsec VPN Supports up to 10 IPSec VPN tunnels
    IPv6 IPv6 and IPv4 dual stack
    Certification CE
    FCC
    RCM
    RoHS
    Environmental Operating Temperature: 32 to 104°F / 0 to 40°C
    Storage Temperature: -40 to 158°F / -40 to 70°C
    Operating Humidity: 10 to 90% non-condensing
    Storage Humidity: 5 to 90% non-condensing
    System Requirements Windows 8, 7, Vista, XP
    Mac OS
    Linux-based operating system
    Dimensions (WxDxH) 9.0 x 6.3 x 1.5" / 228.6 x 160.0 x 38.1 mm
    Packaging Info
    Package Weight 2.35 lb
    Box Dimensions (LxWxH) 12.441 x 9.449 x 2.677"
    The user manual for the TP-Link Archer D7 AC1750 Wireless Dual Band Gigabit ARCHER D7 can be downloaded in .pdf format if it did not come with your new wireless routers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other TP-Link users keep a unique electronic library for TP-Link wireless routerss, where you can use our link to download the user manual for the TP-Link Archer D7 AC1750 Wireless Dual Band Gigabit ARCHER D7.

    The user manual lists all of the functions of the TP-Link Archer D7 AC1750 Wireless Dual Band Gigabit ARCHER D7, all the basic and advanced features and tells you how to use the wireless routers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from TP-Link service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the TP-Link Archer D7 AC1750 Wireless Dual Band Gigabit ARCHER D7. User manuals are also available on the TP-Link website under Computers & Solutions - Networking - Wireless Routers.
