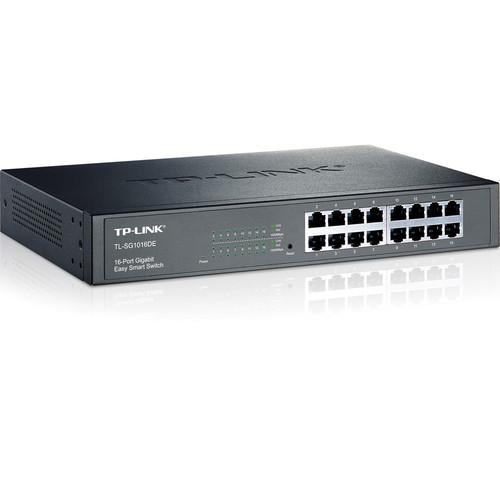

User manual for the TP-Link TL-SG1016DE 16-Port Gigabit Easy Smart Switch
The user manual for the TP-Link TL-SG1016DE 16-Port Gigabit Easy Smart Switch provides
necessary instructions for the proper use of the product Computers & Solutions - Networking - Network Switches, Bridges & Hubs.
The TL-SG1016DE 16-Port Gigabit Easy Smart Switch from TP-Link is designed for small and medium business networks that require simple network management. To optimize traffic on your business network, Easy Smart switch offers both port- and tag-based QoS to keep latency-sensitive traffic moving smoothly and jitter-free. With its innovative energy-efficient technology, the Gigabit switch can save up to 40% of power consumption, making it an eco-friendly solution for your business network.
|
If you own a TP-Link network switches, bridges & hubs and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the TP-Link TL-SG1016DE 16-Port Gigabit Easy Smart Switch in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the TP-Link TL-SG1016DE 16-Port Gigabit Easy Smart Switch:
| Ethernet Protocol | IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/FX
IEEE 802.3ab 1000BASE-T
IEEE 802.3x Flow Control
IEEE 802.1q VLANs/VLAN tagging
IEEE 802.1p QoS | | Interface | 16 x 10/100/1000 Mb/s RJ-45 ports
Auto Negotiation/Auto MDI/MDIX | | Network Media | 10BASE-T: UTP category 3, 4, 5 cable
100BASE-TX: UTP category 5, 5e cable
1000BASE-T: UTP category 5, 5e, 6, or above cable
All of the above: EIA/TIA-568 100Ω STP (maximum 328' / 100 m) | | Power Supply | 100 to 240 VAC at 50/60 Hz | | Switching Capacity | 32 Gb/s | | MAC Address Table | 8 K | | Packet Buffer Memory | 512 KB | | Packet Forwarding Rate | 23.8 Mp/s | | Jumbo Frame | 10240 bytes | | Quality of Service (QoS) | Support port-based/802.1p-based priority
Support 4 priority queues
Rate limit
Storm control | | L2 Features | IGMP Snooping: IGMP Snooping v1/v2/v3, supports 128 groups
Link Aggregation: Support static link aggregation, up to 8 aggregation groups, containing 4 ports per group
Port Mirroring: One-to-one, many-to-one
Cable Diagnostics
Loop Prevention | | VLAN | Supports up to 32 VLANs simultaneously (out of 4 K VLAN IDs)
MTU/Port/Tag VLAN | | Transmission Method | Store-and-forward | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -40 to +158°F (-40 to 70°C) | | Operating Humidity | 10 to 90% (non-condensing) | | Storage Humidity | 5 to 90% (non-condensing) | | Certifications | FCC, CE | | Compliance | RoHS | | System Requirements | Microsoft Windows 98SE/NT/2000/XP/Vista/7/8
Mac OS/NetWare/UNIX/Linux | | Dimensions (W x H x D) | 11.6 x 1.7 x 7.1" (29.4 x 4.4 x 18.0 cm) | | Package Weight | 5.15 lb | | Box Dimensions (LxWxH) | 15.827 x 9.685 x 3.15" | |
The user manual for the TP-Link TL-SG1016DE 16-Port Gigabit Easy Smart Switch can be downloaded in .pdf
format if it did not come with your new network switches, bridges & hubs, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other TP-Link users keep a unique electronic library
for TP-Link network switches, bridges & hubss,
where you can use our link to download the user manual for the TP-Link TL-SG1016DE 16-Port Gigabit Easy Smart Switch.
The user manual lists all of the functions of the TP-Link TL-SG1016DE 16-Port Gigabit Easy Smart Switch,
all the basic and advanced features and tells you how to use the network switches, bridges & hubs.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from TP-Link service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the TP-Link TL-SG1016DE 16-Port Gigabit Easy Smart Switch. User manuals are also
available on the TP-Link website under Computers & Solutions - Networking - Network Switches, Bridges & Hubs.
