User manual for the TP-Link TL-WA7210N 2.4 GHz 150 Mb/s Outdoor Wireless TL-WA7210N
The user manual for the TP-Link TL-WA7210N 2.4 GHz 150 Mb/s Outdoor Wireless TL-WA7210N provides
necessary instructions for the proper use of the product Computers & Solutions - Networking - Wireless Access Points.

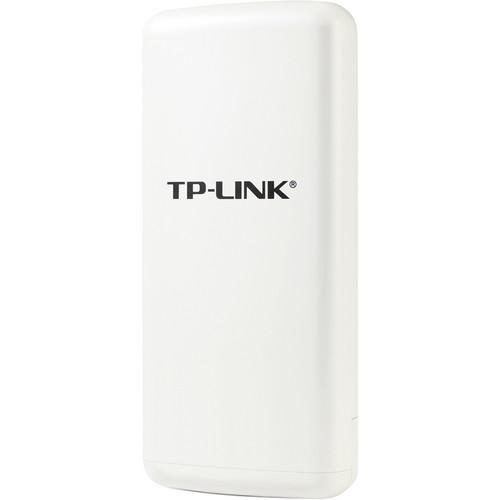

The TL-WA7210N 2.4 GHz 150 Mb/s Outdoor Wireless Access Point from TP-Link is dedicated to Wireless Internet Service Provider (WISP) Customer Premises Equipment (CPE) solutions and long-distance wireless network solutions. It features up to 500mW wireless transmission power that produces a powerful, robust signal to overcome long distances. Furthermore, the TL-WA7210N is equipped with a built-in 12dBi dual-polarized antenna which provides a powerful and stable signal for wireless network connections ranging multiple kilometers.
|
If you own a TP-Link wireless access points and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the TP-Link TL-WA7210N 2.4 GHz 150 Mb/s Outdoor Wireless TL-WA7210N in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the TP-Link TL-WA7210N 2.4 GHz 150 Mb/s Outdoor Wireless TL-WA7210N:
| Interface | 10/100 Mb/s auto-sensing RJ-45 port (auto MDI/MDIX, PoE)
1 x external reverse SMA connector
1 x grounding terminal | | Button | Reset button | | External Power Supply | 12 VDC / 1.0 A, passive power over Ethernet (supported Ethernet cable length > 196.8' (60 m) | | Wireless Standards | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b | | Antenna | 12 dBi dual-polarized directional antenna | | Antenna Beamwidth | Horizontal: 60°
Vertical: 30° | | Protection | 15 KV ESD protection
4000 V lightning protection
Grounding terminal integrated | | Frequency | 2.4 to 2.4835 GHz | | Signal Rate | 11n: Up to 150 Mb/s (dynamic)
11g: Up to 54 Mb/s (dynamic)
11b: Up to 11 Mb/s (dynamic) | | Reception Sensitivity | 802.11n
150M: -76 dBm
121.5M: -78 dBm
108M: -80 dBm
81M: -84 dBm
54M: -87 dBm
40.5M: -91 dBm
27M: -92 dBm
13.5M: -95 dBm
802.11g
54M: -79 dBm
48M: -81 dBm
36M: -85 dBm
12M: -92 dBm
6M: -95 dBm | | Modes | Access point router mode
Access point client router mode (WISP client)
Access point / client / bridge / repeater mode | | Functions | WDS bridge
Wireless statistics | | Advanced Functions | Provides 4-level signal LED indicator | | Security | SSID enable / disable
MAC address filter
64 / 128 / 152-bit WEP Encryption, WPA / WPA2, WPA-PSK / WPA2-PSK (AES / TKIP) Encryption | | Transmission Power | < 20 dBm (EIRP, for countries using CE standards)
< 27 dBm (peak output power, for countries using FCC standards) | | System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8, MAC OS, NetWare, UNIX or Linux | | Environment | Operating Temperature: -22 to 158°F; (-30 to 70°C)
Storage Temperature: -40 to 158°F; (-40 to 70°C)
Operating Humidity: 10 to 90% (non-condensing)
Storage Humidity: 5 to 95% (non-condensing) | | Certification | CE, FCC and RoHS | | Dimensions (W x H x D) | 10.4 x 3.2 x 4.7" (264.1 x 81.2 x 119.3 mm) | | Weight | Not specified by the manufacturer | | Package Weight | 2.15 lb | | Box Dimensions (LxWxH) | 12.4 x 6.5 x 4.6" | |
The user manual for the TP-Link TL-WA7210N 2.4 GHz 150 Mb/s Outdoor Wireless TL-WA7210N can be downloaded in .pdf
format if it did not come with your new wireless access points, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other TP-Link users keep a unique electronic library
for TP-Link wireless access pointss,
where you can use our link to download the user manual for the TP-Link TL-WA7210N 2.4 GHz 150 Mb/s Outdoor Wireless TL-WA7210N.
The user manual lists all of the functions of the TP-Link TL-WA7210N 2.4 GHz 150 Mb/s Outdoor Wireless TL-WA7210N,
all the basic and advanced features and tells you how to use the wireless access points.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from TP-Link service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the TP-Link TL-WA7210N 2.4 GHz 150 Mb/s Outdoor Wireless TL-WA7210N. User manuals are also
available on the TP-Link website under Computers & Solutions - Networking - Wireless Access Points.
