User manual TP-Link TL-WR710N 150 Mbps Wireless N Mini Pocket TL-WR710N

Operating instructions and pdf manual for use - TP-Link TL-WR710N 150 Mbps Wireless N Mini Pocket TL-WR710N User manual, User manual TP-Link TL-WR710N 150 Mbps Wireless N Mini Pocket TL-WR710N, TP-Link, TL-WR710N, 150, Mbps, Wireless, N, Mini, Pock


User manual for TP-Link TL-WR710N 150 Mbps Wireless N Mini Pocket TL-WR710N

Overall rating 4.0
Overall Rating: 4.0

80% of respondents would recommend this to a friend.
TP-Link TL-WR710N 150 Mbps Wireless N Mini Pocket TL-WR710N
  • Manufacturer: TP-Link
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Networking - Wireless Routers
  • Safety instructions
  • Startup and operation of the wireless routers
  • Tips for setting up your TP-Link
  • Settings and expert assistance
  • Contact TP-Link service
  • Troubleshooting
  • Warranty information
  • Price: 29 USD
We recommend checking out our discussion threads on the TP-Link TL-WR710N 150 Mbps Wireless N Mini Pocket TL-WR710N, which address similar problems with connecting and setting up Wireless Routers TP-Link.



User manual for the TP-Link TL-WR710N 150 Mbps Wireless N Mini Pocket TL-WR710N

The user manual for the TP-Link TL-WR710N 150 Mbps Wireless N Mini Pocket TL-WR710N provides necessary instructions for the proper use of the product Computers & Solutions - Networking - Wireless Routers.

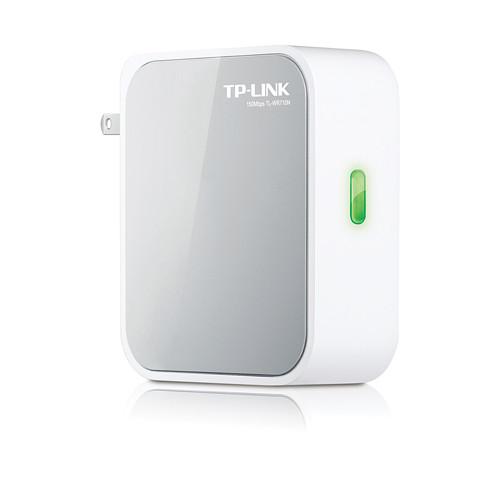

The 150 Mbps TL-WR710N Wireless N Mini Pocket Router from TP-Link is a pocket sized router powerful enough to be mistaken for a standard size desktop router. This router comes equipped with one Fast Ethernet WAN / LAN port and one Fast Ethernet LAN port. Along with integrated LAN and WAN ports, you can take advantage of the included USB port supporting both charging of compatible external devices and the ability to stream saved media through the network via the integrated media server.

This Pocket Router supports 802.11b/g/n wireless network standards allowing you to connect a wide variety of devices. Along with enhanced wireless standards, this pocket router supports the 2.4 - 2.4835 GHz frequency ensuring a stable, reliable wireless connection.

Once connected, you can rest assured your wireless connection is secure as this router supports 64/128/152-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryption standards. Additionally, this router offers a variety of access control functionality including local management control, host list, access schedule, and rule management giving you complete control over your entire network.
If you own a TP-Link wireless routers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the TP-Link TL-WR710N 150 Mbps Wireless N Mini Pocket TL-WR710N in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for TP-Link TL-WR710N 150 Mbps Wireless N Mini Pocket TL-WR710NDownload user manual for TP-Link TL-WR710N 150 Mbps Wireless N Mini Pocket TL-WR710N
(PDF file, 4.57 MB)
Additional parameters of the TP-Link TL-WR710N 150 Mbps Wireless N Mini Pocket TL-WR710N:
Specifications
    Hardware Features
    Interface 1 x 10/100Mbps WAN/LAN Port
    1 x 10/100Mbps LAN Port
    1 x USB Port
    1 x Reset Button
    Wireless Standards IEEE 802.11n
    IEEE 802.11g
    IEEE 802.11b
    Antenna Type On-board
    Wireless Features
    Frequency 2.4 - 2.4835GHz
    Signal Rate 11n: Up to 150Mbps (dynamic)
    11g: Up to 54Mbps (dynamic)
    11b: Up to 11Mbps (dynamic)
    EIRP <200 dBm (EIRP)
    Reception Sensitivity 135M: -70 dBm @ 10% PER
    65M: -73 dBm @ 10% PER
    54M: -76 dBm @ 10% PER
    Wireless Modes Router
    Access Point
    Client
    WISP
    Repeater
    Wireless Functions Enable/Disable wireless radio
    WDS bridge
    WMM
    Wireless statistics
    Wireless Security 64/128/152-bit WEP
    WPA/WPA2
    WPA-PSK/WPA2-PSK
    Software Features
    WAN Type Dynamic IP / Static IP / PPPoE / PPTP / L2TP
    DHCP Server
    Client
    DHCP client list
    Address reservation
    Quality of Service WMM
    Bandwidth control
    Port Forwarding Virtual server
    Port triggering
    UPnP
    DMZ
    Dynamic DNS DynDns
    Comexe
    NO-IP
    VPN Pass-Through PPTP
    L2TP
    IPSec (ESP Head)
    Access Control Local management control
    Host list
    Access schedule
    Rule management
    Firewall Security DoS, SPI Firewall
    IP Address Filter/MAC Address Filter/Domain Filter
    IP and MAC Address Binding
    Management Access control
    Local management
    Remote management
    Other Specifications
    Certifications CE, FCC, RoHS
    System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, MAC OS, NetWare, UNIX or Linux
    Operating Temperature 32 to 104°F / 0 to 40°C
    Non-Operating Temperature -40 to 158°F / -40 to 70°C
    Operating Humidity 10 to 90% non-condensing
    Storage Humidity 5 to 90% non-condensing
    Dimensions (WxDxH) 3.3 x 3.0 x 1.1" / 85 x 75 x 28 mm
    Weight Not specified by manufacturer
    Packaging Info
    Package Weight 0.45 lb
    Box Dimensions (LxWxH) 5.3 x 4.7 x 1.8"
    The user manual for the TP-Link TL-WR710N 150 Mbps Wireless N Mini Pocket TL-WR710N can be downloaded in .pdf format if it did not come with your new wireless routers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other TP-Link users keep a unique electronic library for TP-Link wireless routerss, where you can use our link to download the user manual for the TP-Link TL-WR710N 150 Mbps Wireless N Mini Pocket TL-WR710N.

    The user manual lists all of the functions of the TP-Link TL-WR710N 150 Mbps Wireless N Mini Pocket TL-WR710N, all the basic and advanced features and tells you how to use the wireless routers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from TP-Link service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the TP-Link TL-WR710N 150 Mbps Wireless N Mini Pocket TL-WR710N. User manuals are also available on the TP-Link website under Computers & Solutions - Networking - Wireless Routers.
