User manual for the Transvideo 6" CineMonitorHD6 eSBL Evolution 917TS0093

The user manual for the Transvideo 6" CineMonitorHD6 eSBL Evolution 917TS0093 provides necessary instructions for the proper use of the product Professional Video - Monitors - On Camera Monitors.

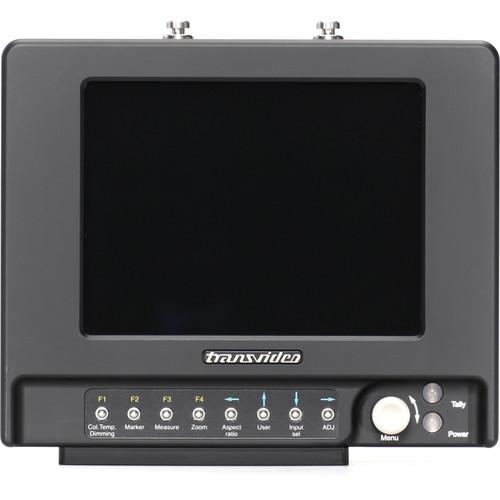

The 6” CineMonitorHD6 eSBL Evolution Enhanced SuperBright On-Board Monitor from Transvideo features 1,000 nits brightness and an anti-glare bonded sunlight readable screen. The 4:3 screen is partitioned in 2 areas: the picture zone displays the picture in 16:9 format whereas tools and measurements are displayed in the remaining free area of the screen.
If you own a Transvideo on camera monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Transvideo 6" CineMonitorHD6 eSBL Evolution 917TS0093 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Transvideo 6" CineMonitorHD6 eSBL Evolution 917TS0093:
Display
Display Size & Type 6.0" (15.2 cm) AMLCD
Pixels Picture Zone: 1024 x 576
Luminance 1,000 Nits
Contrast Ratio Maximum 600:1
Viewing Angle ±80° H, +60/-80° V

The standard position of the matrix is with 6 o'clock preferred viewing angle. An option allows having the monitor delivered with a 12 o'clock preferred viewing angle.

Color Calibration Solution D65 ITU-R BT.709-5 & D56
Color Space Rec. ITU-R BT.709-5
Latency Less than 1 frame in 1080i and psf, SD
Less than 1 image in 720p and 1080p
Connectors
Video Inputs 1 x HD/SD SDI + 1 Rclk out (BNC)
1 x CVBS + Loop (BNC)
1 x multi YPrPb / RGB / CVBS (LEMO8)
1 x mini HDMI (type C)
Remote RS232 / 9-pin D-Sub (female)
RS232 & RS422 / HR25
GPI / 9-pin D-Sub (male)
Standards
Supported Video Standards HD: 1080p / 1080i / 1080psf / 480p / 576p / 720p
SD: NTSC (M, J, 443) / PAL (M, BG, N) / SECAM
Video Standards Per Input HD SDI (SMPTE 292M)
1280 x 720p @ 24, 25, 29.97, 30 Hz (SMPTE 296M)
1280 x 720p @ 50, 59.94, 60 Hz (SMPTE 296M)
1920 x 1080i @ 50, 59.94, 60 Hz (SMPTE 274M)
1920 x 1080psf @ 23.98, 24, 25, 29.97, 30 Hz (SMPTE 274M)
1920 x 1080p @ 23.97, 24, 25, 29.94, 30 Hz (SMPTE 274M)

SD SDI (SMPTE 259M-C)
720 x 487i @ 60 Hz (SD SDI 525 - SMPTE 125M)
720 x 576i @ 50 Hz (SD SDI 625 - ITU - R BT.601)

CVBS
NTSC-M, NTSC-J, NTSC 4.43
PAL B/G H I D, PAL M, PAL N
SECAM

ACC YPrPb / RGB
720 x 480i @ 60 Hz (SMPTE 253M)
720 x 576i @ 50 Hz
1280 x 720p @ 50, 59.94, 60 Hz
1920 x 1080i @ 50, 59.94, 60 Hz (SMPTE 240M)
1920 x 1080psf @ 25, 29.97, 30 Hz
1920 x 1080p @ 23.97, 24, 25, 29.94, 30 Hz

HDMI
720 x 480i @ 59.94, 60 Hz
720 x 576i @ 50 Hz
720 x 480p @ 59.94, 60 Hz
720 x 576p @ 50 Hz
1280 x 720p @ 50, 59.94, 60 Hz
1920 x 1080i @ 50, 59.94, 60 Hz
1920 x 1080psf @ 25, 29.97, 30 Hz
1920 x 1080p @ 23.97, 24, 25, 29.94, 30 Hz
General
Power Input Connector XLR4 connector (-1, +4), with galvanic insulation
Power Consumption 10 to 36 VDC through XLR4 or battery (Anton Bauer or V-Mount; sold separately), 16 W
Temperature Storage: -40 to 176°F (-40 to 80°C)
Operating: -4 to 13° F (-20 to 55°C)
Dimensions (L x H x D) 7.7 x 6.6 x 2.6" (195.5 x 167.6 x 66.0 mm)
Weight 3.1 lb (1.4 kg)
The user manual for the Transvideo 6" CineMonitorHD6 eSBL Evolution 917TS0093 can be downloaded in .pdf format if it did not come with your new on camera monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Transvideo users keep a unique electronic library for Transvideo on camera monitorss, where you can use our link to download the user manual for the Transvideo 6" CineMonitorHD6 eSBL Evolution 917TS0093.

The user manual lists all of the functions of the Transvideo 6" CineMonitorHD6 eSBL Evolution 917TS0093, all the basic and advanced features and tells you how to use the on camera monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Transvideo service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Transvideo 6" CineMonitorHD6 eSBL Evolution 917TS0093. User manuals are also available on the Transvideo website under Professional Video - Monitors - On Camera Monitors.
