User manual TRENDnet TEW-812DRU AC1750 Dual Band Wireless Router TEW-812DRU

Operating instructions and pdf manual for use - TRENDnet TEW-812DRU AC1750 Dual Band Wireless Router TEW-812DRU User manual, User manual TRENDnet TEW-812DRU AC1750 Dual Band Wireless Router TEW-812DRU, TRENDnet, TEW-812DRU, AC1750, Dual, Band, Wire


User manual for TRENDnet TEW-812DRU AC1750 Dual Band Wireless Router TEW-812DRU

Overall rating 4.0
Overall Rating: 4.0

80% of respondents would recommend this to a friend.

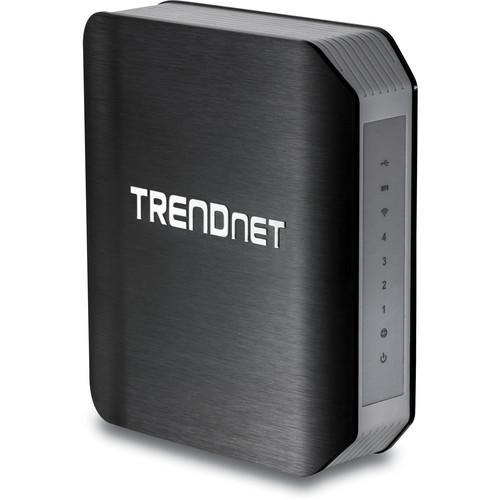

TRENDnet TEW-812DRU AC1750 Dual Band Wireless Router TEW-812DRU
  • Manufacturer: TRENDnet
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Networking - Wireless Routers
  • Safety instructions
  • Startup and operation of the wireless routers
  • Tips for setting up your TRENDnet
  • Settings and expert assistance
  • Contact TRENDnet service
  • Troubleshooting
  • Warranty information
  • Price: 120 USD
We recommend checking out our discussion threads on the TRENDnet TEW-812DRU AC1750 Dual Band Wireless Router TEW-812DRU, which address similar problems with connecting and setting up Wireless Routers TRENDnet.



User manual for the TRENDnet TEW-812DRU AC1750 Dual Band Wireless Router TEW-812DRU

The user manual for the TRENDnet TEW-812DRU AC1750 Dual Band Wireless Router TEW-812DRU provides necessary instructions for the proper use of the product Computers & Solutions - Networking - Wireless Routers.

The TEW-812DRU AC1750 Dual Band Wireless Router from TRENDnet comes equipped with four gigabit LAN ports, one gigabit WAN port, and one USB 2.0 port. The integrated USB 2.0 port allows for easy sharing of USB printers and hard drives. Along with the LAN/WAN ports you also benefit from wireless compatibility including 802.11ac/n/g/b/a standards as well as an integrated WPS button.

The AC1750 Dual Band Wireless Router is a router capable of utilizing both the 2.4GHz and 5GHz frequencies making it possible to streamline your bandwidth. Use the slower 2.4GHz frequency for tasks such as internet browsing and e-mail while using the 5GHz frequency for data intensive tasks such as streaming HD video and transferring of large files.
If you own a TRENDnet wireless routers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the TRENDnet TEW-812DRU AC1750 Dual Band Wireless Router TEW-812DRU in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for TRENDnet TEW-812DRU AC1750 Dual Band Wireless Router TEW-812DRUDownload user manual for TRENDnet TEW-812DRU AC1750 Dual Band Wireless Router TEW-812DRU
(PDF file, 1.91 MB)
Additional parameters of the TRENDnet TEW-812DRU AC1750 Dual Band Wireless Router TEW-812DRU:
Specifications
    Hardware
    Standards Wired: IEEE 802.3 (10Base-T), IEEE 802.3u (100Base-TX), IEEE 802.3ab (1000Base-T)
    Wireless: IEEE 802.11ac (draft), IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.11a
    Internet Protocol IPv4 and IPv6
    LAN 4 x 10/100/1000 Mbps Auto-MDIX
    WAN 1 x 10/100/1000 Mbps Auto-MDIX
    USB 1 x USB 2.0 Type-A (Storage/Printing)
    WPS Button Wi-Fi Protected Setup (WPS) connects with other WPS compliant devices
    Reset Button Reset unit back to factory default (press and hold for 10 seconds)
    Network Protocols/Features IGMP v1/2/3 proxy and snooping, Static and dynamic routing, UPnP, DHCP, server, Dynamic DNS (No-IP.com and DynDNS.com), NTP, IPsec/PPTP/L2TP VPN pass through, IPv6
    Quality of Service WMM an WAN (Configurable Upload/Download)
    OS Support Windows 8 (32/64-bit), Windows 7 (32/64-bit), Windows Vista (32/64-bit), Windows XP (32/64-bit)
    Mac OS X: 10.4/10.5/10.6/10.7
    Internet Connection Type IPv6, Dynamic IP, Static (fixed) IP, PPPoE, PPTP, L2TP
    Firewall NAT, SPI, DMZ host, virtual servers, MAC/IP filters and URL filters
    Management/Monitoring Local/remote configuration, upgrade firmware, backup/restore configuration via web browser, internal system log, ping test tool
    Supported Web Browsers Internet Explorer 6.0 or above, Firefox 2.0 or above, Chrome, Opera, Safari
    LED Indicator Power, LAN 1-4, WAN, 2.4GHz Wireless, 5GHz Wireless, WPS
    Power Adapter Input: 100~240 V, 50~60 Hz, 0.8 A
    Output: 12 V DC, 2 A external power adapter
    Power Consumption 18 watts (max.)
    Environmental Requirements Operation: 32 to 104°F (0 to 40°C)
    Storage: -4 to 140°F (-20 to 60°C)
    Humidity: Max 90% (non-condensing)
    Certifications CE, FCC
    Wireless Features
    Frequency 2.4 GHz: 2.412~2.462 (FCC) and 2.412~2.472 (ETSI)
    5 GHz: 5.15 ~ 5.250 / 5.725~5.850 GHz (FCC) 5.15 ~ 5.250 (ETSI)
    Antenna 2.4 GHz: 3 x 2 dBi PIFA internal
    5 GHz: 3 x 2 dBi PIFA internal
    Modulation CCK, DQPSK, DBPSK, OFDM, BPSK, QPSK, 16/64/256-QAM
    Data Rate 802.11a: up to 54 Mbps
    802.11b: up to 11 Mbps
    802.11g: up to 54 Mbps
    802.11n: up to 450 Mbps (for both 2.4 & 5 GHz)
    802.11ac: up to 1.3 Gbps
    Security 64/128-bit WEP, WPA/WPA2-PSK, WPA/WPA2-RADIUS
    Guest Network Up to 3 per wireless band
    Access Control MAC Address Filter (Up to 24 entries)
    Output Power 802.11a: 12 dBm (typical)
    802.11b: 16 dBm (typical)
    802.11g: 15 dBm (typical)
    802.11n: 12 dBm (typical) (for 2.4 & 5 GHz)
    802.11ac: 15 dBm (typical)
    Receiving Sensitivity 802.11a: -68 dBm (typical) @ 54 Mbps
    802.11b: -84 dBm (typical) @ 11 Mbps
    802.11g: -72 dBm (typical) @ 54 Mbps
    802.11n: -68 dBm (typical) @ 450 Mbps (for 2.4 & 5 GHz)
    802.11ac: -55 dBm (typical) @ 1.3 Gbps
    Channels 2.4 GHz: 1~11 (FCC), 1~13 (ETSI)
    5 GHz: 36, 40, 44, 48, 149, 153, 157, 161 and 165 (FCC), 36, 40, 44, 48 (ETSI)
    Dimensions (L x W x H) 1.9 x 6.1 x 7.1" 48 x 155 x 180 mm)
    Weight 14 oz (395 g)
    Packaging Info
    Package Weight 1.9 lb
    Box Dimensions (LxWxH) 12.2 x 8.9 x 2.6"
    The user manual for the TRENDnet TEW-812DRU AC1750 Dual Band Wireless Router TEW-812DRU can be downloaded in .pdf format if it did not come with your new wireless routers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other TRENDnet users keep a unique electronic library for TRENDnet wireless routerss, where you can use our link to download the user manual for the TRENDnet TEW-812DRU AC1750 Dual Band Wireless Router TEW-812DRU.

    The user manual lists all of the functions of the TRENDnet TEW-812DRU AC1750 Dual Band Wireless Router TEW-812DRU, all the basic and advanced features and tells you how to use the wireless routers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from TRENDnet service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the TRENDnet TEW-812DRU AC1750 Dual Band Wireless Router TEW-812DRU. User manuals are also available on the TRENDnet website under Computers & Solutions - Networking - Wireless Routers.
