User manual TRENDnet TV-IP572WI Megapixel HD Wireless N Day/Night TV-IP572WI

Operating instructions and pdf manual for use - TRENDnet TV-IP572WI Megapixel HD Wireless N Day/Night TV-IP572WI User manual, User manual TRENDnet TV-IP572WI Megapixel HD Wireless N Day/Night TV-IP572WI, TRENDnet, TV-IP572WI, Megapixel, HD, Wireles


User manual for TRENDnet TV-IP572WI Megapixel HD Wireless N Day/Night TV-IP572WI

Overall rating 4.0
Overall Rating: 4.0

80% of respondents would recommend this to a friend.

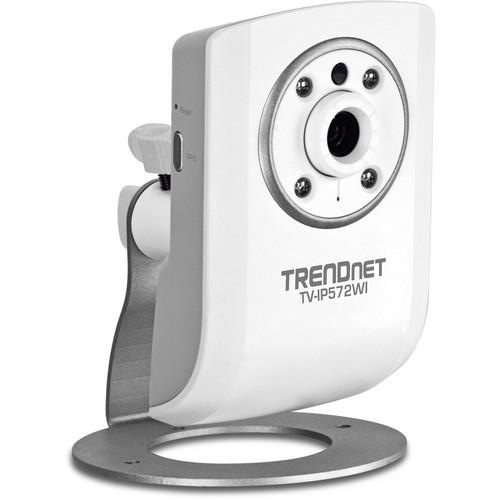

TRENDnet TV-IP572WI Megapixel HD Wireless N Day/Night TV-IP572WI
  • Manufacturer: TRENDnet
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Wireless Cameras
  • Safety instructions
  • Startup and operation of the wireless cameras
  • Tips for setting up your TRENDnet
  • Settings and expert assistance
  • Contact TRENDnet service
  • Troubleshooting
  • Warranty information
  • Price: 120 USD
We recommend checking out our discussion threads on the TRENDnet TV-IP572WI Megapixel HD Wireless N Day/Night TV-IP572WI, which address similar problems with connecting and setting up Wireless Cameras TRENDnet.



User manual for the TRENDnet TV-IP572WI Megapixel HD Wireless N Day/Night TV-IP572WI

The user manual for the TRENDnet TV-IP572WI Megapixel HD Wireless N Day/Night TV-IP572WI provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wireless Cameras.

Transmit real-time 1280 x 800 resolution video over Wi-Fi or a wired Ethernet connection with the TV-IP572WI Megapixel HD Wireless N Day/Night Internet Camera from TRENDnet. Combining a 4mm f/1.5 manual focus lens and a 1MP 1/4" CMOS sensor, users will be able to capture a wide area with a 59.6° viewing angle. Also, with H.264, MPEG-4, or MJPEG compression users will be able to record at up to 30 fps as well as stream and record up to 4 video profiles while simultaneously streaming low resolution video to a smartphone. To further benefit surveillance needs, the camera is equipped with IR LEDs to enable recording in complete darkness at distances up to 24.6'.

Two-way audio communication is supported with the built-in omni-directional microphone and a external speaker output port and users will be able to program features such as motion detection areas, email alerts, scheduled recording sessions, date-and-time overlays, and more. Additionally, it has a microSD card slot for local backup storage and comes with a wall/ceiling mounting kit.
If you own a TRENDnet wireless cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the TRENDnet TV-IP572WI Megapixel HD Wireless N Day/Night TV-IP572WI in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for TRENDnet TV-IP572WI Megapixel HD Wireless N Day/Night TV-IP572WIDownload user manual for TRENDnet TV-IP572WI Megapixel HD Wireless N Day/Night TV-IP572WI
(PDF file, 5.43 MB)
Additional parameters of the TRENDnet TV-IP572WI Megapixel HD Wireless N Day/Night TV-IP572WI:
Specifications
    Sensor 1/4" CMOS
    Resolution 1280 x 800
    Frame Rate Up to 30 fps
    Lens Board lens
    Focal Length 4 mm
    Aperture f/1.5
    Minimum Illumination 0 lux
    Focus Range 7.9" / 20 cm to infinity
    Angle of View Horizontal: 51.8°
    Vertical: 33.8°
    Diagonal: 59.6°
    Digital Zoom 4x
    Night Vision IR LEDs with 24.6' / 7.5 m range
    Video Compression H.264, MPEG-4, MJPEG
    Audio Input Built-in omni-directional microphone
    Sensitivity -40 dB ±3 dB (16.4' / 5 m max)
    Frequency 100-20000 Hz
    Signal / Noise >60 dB
    Audio Format PCM / ADPCM
    Audio Output External speaker output
    Connection 10/100 Mbps Auto-MDIX Fast Ethernet
    IEEE 802.11n Wi-Fi
    LED Indicators Power, Link/Act
    Memory Card Slot 1 x microSD/SDHC (up to 32 GB)
    System Requirements Windows 7 (32/64-bit), Vista (32/64-bit), XP (32/64-bit), Server 2003, Server 2008
    Internet Explorer 7.0 or above, Firefox, Safari, or Chrome
    Software Channel: Supports up to 32 cameras
    Record, playback, motion detection, audio
    Power Requirements Input: 100-240 VAC, 50/60 Hz, 0.2 A
    Output: 5 VDC, 1.2 A
    Power Consumption 5.05 W
    Operating Conditions Temperature: 32 to 104°F / 0 to 40°C
    Humidity: Up to 95%, non-condensing
    Storage Conditions Temperature: -13 to 158°F / -25 to 70°C
    Certifications CE, FCC
    Dimensions 3.0 x 4.5 x 1.2" / 75 x 115 x 30 mm
    Weight 4.2 oz / 120 g
    Packaging Info
    Package Weight 1.75 lb
    Box Dimensions (LxWxH) 7.9 x 5.9 x 4.7"
    The user manual for the TRENDnet TV-IP572WI Megapixel HD Wireless N Day/Night TV-IP572WI can be downloaded in .pdf format if it did not come with your new wireless cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other TRENDnet users keep a unique electronic library for TRENDnet wireless camerass, where you can use our link to download the user manual for the TRENDnet TV-IP572WI Megapixel HD Wireless N Day/Night TV-IP572WI.

    The user manual lists all of the functions of the TRENDnet TV-IP572WI Megapixel HD Wireless N Day/Night TV-IP572WI, all the basic and advanced features and tells you how to use the wireless cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from TRENDnet service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the TRENDnet TV-IP572WI Megapixel HD Wireless N Day/Night TV-IP572WI. User manuals are also available on the TRENDnet website under Surveillance - Surveillance Video - Wireless Cameras.
