User manual for the TriggerSmart TriggerSmart Kit UK1

The user manual for the TriggerSmart TriggerSmart Kit UK1 provides necessary instructions for the proper use of the product Photography - Photo Accessories - Camera Trigger Systems.

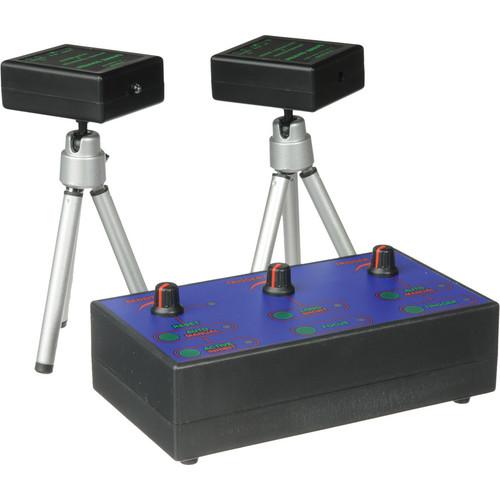

The TriggerSmart Kit from Quantum Instruments is a three-way triggering system for photo and video capture. TriggerSmart offers a simple way to trigger your camera by using sensors that detect sound, an increase in light intensity and the interruption of an infra-red beam. Each detection method has its own uses and its own control settings on the TriggerSmart Control Unit. For example, if photographing fireworks or lightning, use the Light Intensity Sensor, connect it to the Control Unit and connect the Control Unit to your camera using the included cables. If needed, adjust the light sensitivity of the sensor on the Control Unit and when the lightning strikes or fireworks go off, the sensor detects the increase in light and fires your camera to shoot.
If you own a camera trigger systems and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the TriggerSmart TriggerSmart Kit UK1 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the TriggerSmart TriggerSmart Kit UK1:
Triggering Speed Selectable for 5 ms(1/200 sec) to 5 seconds
Delay Range Short Delay: 1 ms (1/1000 sec.) to 100 ms (1/10 sec.) - Long Delay: 100ms (1/10 sec.) to 10 seconds
Triggering Modes: Manual, auto 1 shot, auto re-arm
Focus Manual Activation
Sensors Flash, infra-red beam, sound
IR Beam Range 7.9" - 6.6' (20 - 201 cm). 8º or 2º with focal baffle
Infra-Red Wavelength 850nm
Light Sensitivity Range: 1 - 1500 lumens. Sensitivity: 10 lumens
Microphone Sensitivity Frequency Response: 50 - 5000 Hz
Trigger Outputs x3 open collector (x2 trigger, x1 focus). 50v DC max at 100milliamps
Mounting Sensor: 1/4-20 thread
Tripod Adjustment Range 3.2 - 6.7" (8.1 - 17 cm)
Power x4 AA batteries, high power type, non-rechargeable or AC to low voltage PSU 6-9V DC at 100 milliamps. UK22 AC power unit recommended.
Power Consumption 40 milliamps. When IR TX module is connected: 80 milliamps.
Operating Temperature 32 - 95º F (0 - 35º C)
Storage Temperature 14 - 122º F ( -10 - 50º C)
Shock Rating 10 Newtons
Waterproofing IP53
Dimensions (W x D x H) Controller: 7.5 x 5.5 x 2" (19 x 14 x 5 cm) Sensors: 3 x 2 x 1" (7.6 x 5 x 2.5 cm)
Weight Kit: 2.2 lb (998 g) Controller: 11.5 oz (326 g) Sensors: 1.5 oz (42.5 g) Tripods: 10 oz (283.5 g)
Packaging Info
Package Weight 2.35 lb
Box Dimensions (LxWxH) 9.2 x 8.3 x 4.4"
