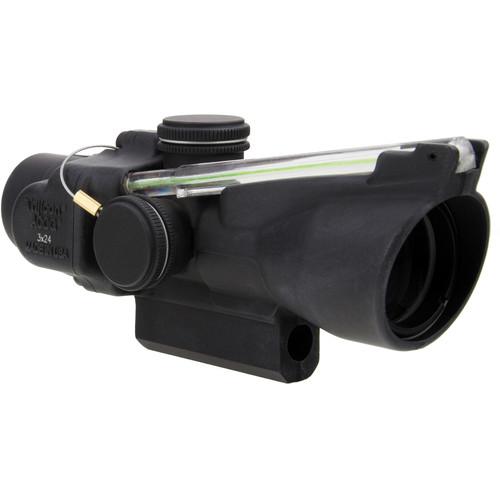

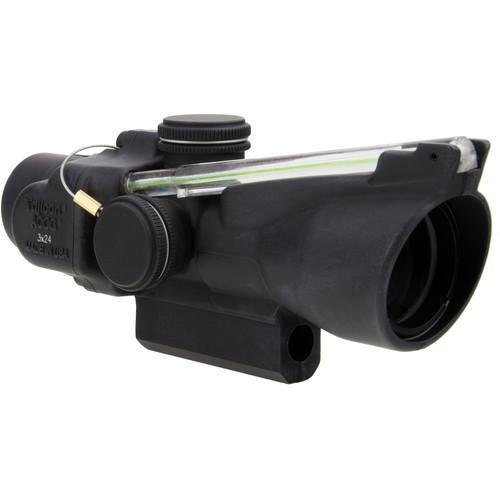

Click to enlarge image
|
We recommend checking out our discussion threads on the Trijicon 3x24 TA50 XB ACOG Crossbow Scope TA50-C-400145,
which address similar problems with connecting and setting up Riflescopes Trijicon.
|
User manual for the Trijicon 3x24 TA50 XB ACOG Crossbow Scope TA50-C-400145
The user manual for the Trijicon 3x24 TA50 XB ACOG Crossbow Scope TA50-C-400145 provides
necessary instructions for the proper use of the product Optics - Riflescopes & Sights - Riflescopes.
Trijicon designed the 3x24 TA50 XB ACOG Crossbow Scope to be an invaluable optic for precision crossbow hunting. The green chevron reticle integrates Bad River Outdoors' patented deer/elk ranging system. This system features markers on the upper half of the reticle that enables the user to quickly estimate the range to the elk or deer, then move the aiming point on the lower axis based on the matching hold-over stadia. The reticle is designed for use out to 80yd and calibrated for the specific ballistic drop of 400-440+ fps bolts to further ensure accurate ranging and hold-over. Trijicon's battery-free dual-illumination reticle system employs a tritium phosphor lamp for low-light use, as well as a fiber optic illumination that focuses, channels, and filters available light to illuminate the reticle. Using ambient light ensures that the reticle brightness will be appropriate for the conditions without any adjustment by the user.
|
If you own a Trijicon riflescopes and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Trijicon 3x24 TA50 XB ACOG Crossbow Scope TA50-C-400145 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Trijicon 3x24 TA50 XB ACOG Crossbow Scope TA50-C-400145:
| Magnification | 3x | | Objective Lens Diameter | 24mm | | Reticle | Green ballistic chevron for 400-440+ fps bolt-speeds, dual illumination | | Field of View | 25.6' @ 100 yd / 8.5 m @ 100 m | | Parallax Correction | Not specified by manufacturer | | Eye Relief | 1.4" / 3.6 cm | | Exit Pupil Diameter | 8.1 mm | | Impact Point Correction | 9 clicks per inch @ 30 yds | | Windage/Elevation Adjustment | Not specified by manufacturer | | Mount | None | | Weatherproofing | Nitrogen-filled, submersible to 328 / 100 m | | Battery / Runtime | N/A | | Dimensions | 5.0 x 2.1 x 1.5" / 12.7 x 5.3 x 3.8 cm | | Weight | 5.9 oz / 167 g | |
The user manual for the Trijicon 3x24 TA50 XB ACOG Crossbow Scope TA50-C-400145 can be downloaded in .pdf
format if it did not come with your new riflescopes, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Trijicon users keep a unique electronic library
for Trijicon riflescopess,
where you can use our link to download the user manual for the Trijicon 3x24 TA50 XB ACOG Crossbow Scope TA50-C-400145.
The user manual lists all of the functions of the Trijicon 3x24 TA50 XB ACOG Crossbow Scope TA50-C-400145,
all the basic and advanced features and tells you how to use the riflescopes.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Trijicon service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Trijicon 3x24 TA50 XB ACOG Crossbow Scope TA50-C-400145. User manuals are also
available on the Trijicon website under Optics - Riflescopes & Sights - Riflescopes.
