User manual Turbosound Milan M10 600-Watt 2-Way 10" Powered M10

Operating instructions and pdf manual for use - Turbosound Milan M10 600-Watt 2-Way 10" Powered M10 User manual, User manual Turbosound Milan M10 600-Watt 2-Way 10" Powered M10, Turbosound, Milan, M10, 600-Watt, 2-Way, 10, Powered, M10,


User manual for Turbosound Milan M10 600-Watt 2-Way 10" Powered M10

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.
Turbosound Milan M10 600-Watt 2-Way 10
  • Manufacturer: Turbosound
  • Basic description and contents of package
  • Product classification: Pro Audio - Live Sound - PA Speakers
  • Safety instructions
  • Startup and operation of the pa speakers
  • Tips for setting up your Turbosound
  • Settings and expert assistance
  • Contact Turbosound service
  • Troubleshooting
  • Warranty information
  • Price: 349 USD
We recommend checking out our discussion threads on the Turbosound Milan M10 600-Watt 2-Way 10" Powered M10, which address similar problems with connecting and setting up PA Speakers Turbosound.



User manual for the Turbosound Milan M10 600-Watt 2-Way 10" Powered M10

The user manual for the Turbosound Milan M10 600-Watt 2-Way 10" Powered M10 provides necessary instructions for the proper use of the product Pro Audio - Live Sound - PA Speakers.

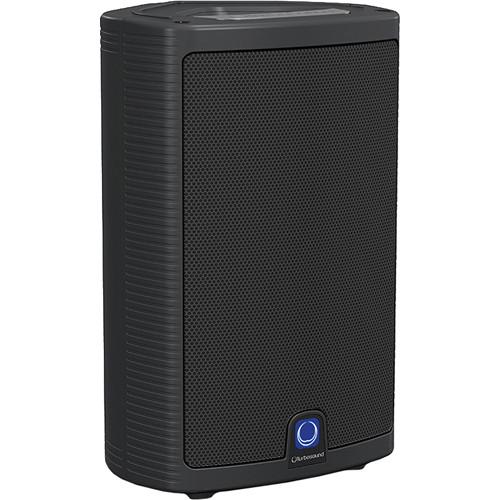

The Milan M10 600-Watt 2-Way 10" Powered Loudspeaker from Turbosound is a Class-D powered speaker that can be used for a variety of PA applications in both portable and installed scenarios. It features 2 independent input channels with mic and line inputs as well as a 2-band EQ and intelligent limiting. A mix output connector allows you to connect to other Milan series loudspeakers.

Its processing is powered by the integrated Klark Teknik DSP and has an electronic crossover. A low-cut filter at 100 Hz allows you to use the M10 as a wedge monitor, but it can also be pole mounted or flown for a variety of placement options. Its trapezoidal enclosure is constructed from high density polypropylene and is designed to reduce resonances internally. It features a recessed handle for carrying.
If you own a Turbosound pa speakers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Turbosound Milan M10 600-Watt 2-Way 10" Powered M10 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Turbosound Milan M10 600-Watt 2-Way 10" Powered M10:
Specifications
    Components LF Driver: 1x 10" (254 mm)
    HF Compression Driver: 1x 1"(25 mm)
    Frequency Response 55 Hz to 18 kHz, +/-3 dB
    50 Hz to 20 kHz, +/-10 dB
    Nominal Dispersion 90° H x 60° V @ -6 dB points
    Maximum SPL 126 dB, peak
    Construction Injection-molded polypropylene enclosure
    Recessed carrying handle
    Integral dual-angle pole mount socket
    6x M10 threaded internal rigging points
    Grille Powder coated galvanized perforated steel mesh grille with foam backing
    Connectors Mic/Line Input: XLRF/TRS combo jack, wired pin 2 hot
    Mix Output: Male XLR wired pin 2 hot
    IEC mains connector with integrated fuseholder
    Controls Level, Line/Mic, Low Cut, Speech/Music, Bass and Treble, Front LED, Mains on/off
    Indicators Blue Power LED
    Green Signal LED
    Red Limit LED
    Red Clip LED
    Amplifier Type: Class-D
    Maximum Power Output: 500 W (LF) ; 100 W (HF)
    Input Sensitivity: -32 dBu (Mic), -2 dBu (Line)
    Microphone Input Impedance: 560 Ω unbalanced, 1 kΩ balanced
    Line Input Impedance: 20 kΩ unbalanced, 40 kΩ balanced
    EQ: Bass +/-6 dB @ 80 Hz, Treble +/-6 dB @ 12 kHz
    Amplifier Protection: Full short circuit, open circuit, thermal
    Mains Voltage USA/Canada: 100-120 V~ (T 6.3 A H 250 V)
    UK/Australia/Europe: 220-240 V~ (T 3.15 A H 250 V)
    China: 220-240 V~ (T 3.15 A H 250 V)
    Japan: 100-120 V~ (T 6.3 A H 250 V)
    Power Consumption 80 W @1/8 max power
    Dimensions (HxWxD) 20.6 x 13.0 x 11.6" (522 x 329 x 294 mm)
    Weight 29.3 lb (13.3 kg)
    Packaging Info
    Package Weight 35.8 lb
    Box Dimensions (LxWxH) 24.0 x 16.0 x 15.0"
    The user manual for the Turbosound Milan M10 600-Watt 2-Way 10" Powered M10 can be downloaded in .pdf format if it did not come with your new pa speakers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Turbosound users keep a unique electronic library for Turbosound pa speakerss, where you can use our link to download the user manual for the Turbosound Milan M10 600-Watt 2-Way 10" Powered M10.

    The user manual lists all of the functions of the Turbosound Milan M10 600-Watt 2-Way 10" Powered M10, all the basic and advanced features and tells you how to use the pa speakers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Turbosound service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Turbosound Milan M10 600-Watt 2-Way 10" Powered M10. User manuals are also available on the Turbosound website under Pro Audio - Live Sound - PA Speakers.



    Discussion Question and answer discussion forum concerning user instructions and resolving problems with the Turbosound Milan M10 600-Watt 2-Way 10" Powered M10

    Post new comment to Turbosound Milan M10 600-Watt 2-Way 10" Powered M10

    Subject: MILAN M10
    Date: 25.02.2024 18:08:10Author: PIRES
    SERRAIS T'IL POSSIBLE DE NOUS FOURNIR LA DOCUMENTATION TECHNIQUE POUR LA REPARATION DU CIRCUIT D'ALIMENTATION ET AMPLIFICATEUR.
    JE VOUS SERAIS GREE DE VOTRE REPONSE
    Merci
    Reply
