User manual for the Turbosound TSW-218 Dual 18" Horn Loaded Subwoofer TSW218
The user manual for the Turbosound TSW-218 Dual 18" Horn Loaded Subwoofer TSW218 provides
necessary instructions for the proper use of the product Pro Audio - Live Sound - PA Speakers.

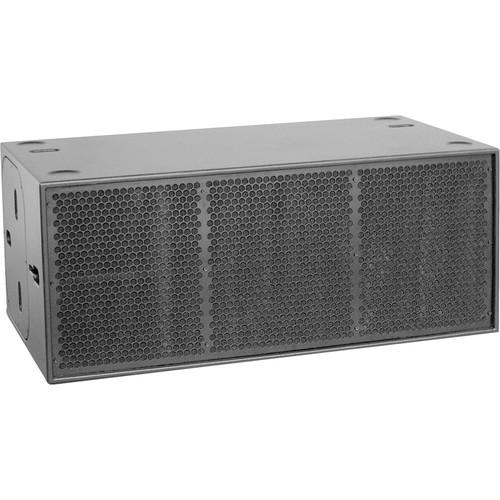

The TSW-218 Dual 18" Horn Loaded Subwoofer from Turbosound is designed for use in applications requiring accurate and powerful reproduction of low frequency energy at very high levels. Its ability to reproduce program material with integrity makes the TSW-218 applicable for both fixed and mobile systems which require energetic low frequency response without stress or equalization. It is primarily intended for large scale concert touring and festival applications but it is also suited to large nightclubs.
The TSW-218 incorporates the TurboBass device which employs a high-velocity partial horn-loading technique to deliver precise cone control at high power levels. It addresses an increasing demand for accurate, high definition bass reproduction.
The TSW-218 is capable of an electrical to acoustic power conversion of 104 dB 1W at 1m from a single unit. Optimization of the curved-profile laminated horn flare produces a dramatic increase in sensitivity when multiple units are coupled, with eight cabinets giving 110 dB (1W @ 1m) output with flat frequency response down to 32 Hz. For concert touring use, the cabinet is fitted with heavy duty wheels to aid in handling and transportation. The cabinet is constructed from 3/4" plywood, finished in black semi matte textured paint, and is equipped with recessed carrying handles, stacking feet, and side ratchet strap points for stable ground stacks.
If you own a Turbosound pa speakers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Turbosound TSW-218 Dual 18" Horn Loaded Subwoofer TSW218 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Turbosound TSW-218 Dual 18" Horn Loaded Subwoofer TSW218:
Specifications
Components
LF Drivers on TurboBass Devices: 2 x 18" (457 mm)
Frequency Response
35 to 150 Hz, ±3 dB
Sensitivity
104 dB (1 W @ 1 m)
Power Handling
Continuous: 1,600 W Peak: 6,400 W
Maximum SPL
Continuous: 135 dB Peak: 141 dB
Nominal Impedance
4 ohms
Construction
3/4" (18 mm) Birch plywood finished in semi matte black paint, four recessed carrying handles, four heavy duty wheels, and four stacking feet
Grille
0.08" (2 mm) Galvanized and powder coated steel with reticulated foam
Connectors
2 x Neutrik speakON NL4
Dimensions
22.6 x 55.1 x 30.3 " (574 x 1400 x 770 mm)
Weight
222.2 lb (101 kg)
