User manual TV One C2-2755 Universal Scaler PLUS C2-2755

Operating instructions and pdf manual for use - TV One C2-2755 Universal Scaler PLUS C2-2755 User manual, User manual TV One C2-2755 Universal Scaler PLUS C2-2755, TV, One, C2-2755, Universal, Scaler, PLUS, C2-2755, Video


User manual for TV One C2-2755 Universal Scaler PLUS C2-2755

TV One  C2-2755 Universal Scaler PLUS C2-2755
  • Manufacturer: TV One
  • Basic description and contents of package
  • Product classification: Professional Video - Signal Processing & Distribution - Analog & Digital Converters
  • Safety instructions
  • Startup and operation of the analog & digital converters
  • Tips for setting up your TV One
  • Settings and expert assistance
  • Contact TV One service
  • Troubleshooting
  • Warranty information

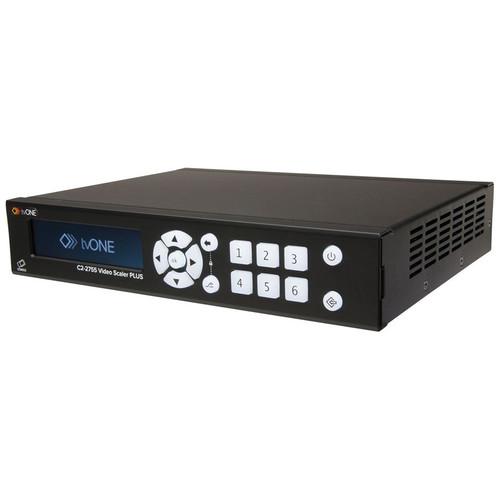

TV One  C2-2755 Universal Scaler PLUS C2-2755 TV One  C2-2755 Universal Scaler PLUS C2-2755 TV One  C2-2755 Universal Scaler PLUS C2-2755
Click to enlarge image

We recommend checking out our discussion threads on the TV One C2-2755 Universal Scaler PLUS C2-2755, which address similar problems with connecting and setting up Analog & Digital Converters TV One.



User manual for the TV One C2-2755 Universal Scaler PLUS C2-2755

The user manual for the TV One C2-2755 Universal Scaler PLUS C2-2755 provides necessary instructions for the proper use of the product Professional Video - Signal Processing & Distribution - Analog & Digital Converters.

The C2-2755 Universal Scaler PLUS from TV One allows you to convert just about any type of video signal to just about any other signal with less than two frames of latency. It can support resolutions up to 1920 x 1200 at 60 Hz and will accept as well as output composite, component, VGA, DVI, and HDMI, plus can input only via SDI. Additionally, analog audio inputs and outputs allow stereo audio to be embedded or de-embedded from digital video signals. On top of scaling and frame rate conversion, the C2-2755 can also act as a 3 x 3 matrix switcher allowing you to route any of the inputs to any of the outputs.
If you own a TV One analog & digital converters and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the TV One C2-2755 Universal Scaler PLUS C2-2755 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the TV One C2-2755 Universal Scaler PLUS C2-2755:
Inputs Video
1 x Composite on BNC
1 x S-video (Y/C) on 4-pin DIN
1 x HDMI
1 x 3G-SDI on BNC
1 x VGA
1 x DVI-U: Supports composite, component (YPbPr, YUV), HDMI, DVI, VGA (RGBHV, RGBS, RGsB) - adapters required

Audio
3 x Unbalanced audio on terminal connectors
1 x Stereo 3.5 mm mini jack

Note: HDMI, SDI, and DVI-U pass embedded audio
Outputs Video
1 x Composite on BNC
1 x S-video (Y/C) on 4-pin DIN
1 x HDMI
1 x DVI-U: Supports composite, component (YPbPr, YUV), HDMI, DVI, VGA (RGBHV, RGBS, RGsB) - adapters required

Audio
1 x Unbalanced audio on terminal connectors

Note: HDMI and DVI-U pass embedded audio
Maximum Resolution Analog Computer: 1920 x 1080
Analog Video: 1080p60
HDMI and DVI Computer: 1920 x 1200
HDMI and DVI Video: 1080p60
Supported Resolutions Video: NSTC, PAL, 720p,1080i,1080p
Computer: 800 x 600 (SVGA) to 1920 x 1200 (WUXGA)
Supported Frame Rates SD-SDI
525i (NTSC) 59.94 Hz
625i (PAL) 50 Hz

HD-SDI
720p: 29.97, 30, 50, 59.94, 60 Hz
1080i: 50, 59.94, 60 Hz
1080p: 23.98, 24, 25, 29.97, 30 Hz

1080p: 50, 59.94, 60 Hz
Latency 1 to 2 frames
Standards
Supported Standards Analog Video
NTSC, PAL, PAL-M, PAL-N, SECAM



Component Video
RGBHV, RGBS, RGsB, YPbPr, YUV

HDMI and DVI
DVI 1.0, HDCP; CEC pass-through

SDI
SMPTE259M-C (SD-SDI; 270 Mbps; 525/625Line)
SMPTE292M (HD-SDI; 1.485/1.4835 Gbps: 720p, 1035i, 1080i, 1080p)
SMPTE424M (3G-SDI)

Audio
De-embedding Support: 1 x Stereo pair at 32, 44.1, or 48 kHz from HDMI / 48 kHz from SDI
Embedding Support: 1 x Stereo pair at 48 kHz
SDI Jitter SD-SDI: < 0. 1 UI
HD-SDI < 0.2 UI
3G-SDI: < 0.3 UI
SDI Cable Equalization Input
SMPTE259M-C (SD-SDI) 984.3' / 300 m (under optimal conditions)
SMPTE292M (HD-SDI) 544.6' / 166 m (under optimal conditions)
SMPTE424M (3G-SDI) 328.1' / 100 m (under optimal conditions)
General
Control Method Local: Front Panel Buttons and OSD
1 x RS-232 on DB9 female
1 x Ethernet on RJ-45 connector
Power Requirements External Power Supply: 12 VDC at 1.5 A
Operating Temperature 32 to 104°F / 0 to 40°C

Humidity: 10 to 85%, non-condensing
Storage Temperature 14 to 158°F / -10 to 70°C

Humidity: 10 to 85%, non-condensing
Dimensions 1.6 x 8.6 x 7.4" / 42 x 218 x 189 mm
Weight 2.8 lb / 1.3 kg (excluding PSU)
Packaging Info
Package Weight 4.9 lb
Box Dimensions (LxWxH) 13.5 x 12.9 x 3.9"
The user manual for the TV One C2-2755 Universal Scaler PLUS C2-2755 can be downloaded in .pdf format if it did not come with your new analog & digital converters, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other TV One users keep a unique electronic library for TV One analog & digital converterss, where you can use our link to download the user manual for the TV One C2-2755 Universal Scaler PLUS C2-2755.

The user manual lists all of the functions of the TV One C2-2755 Universal Scaler PLUS C2-2755, all the basic and advanced features and tells you how to use the analog & digital converters. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from TV One service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the TV One C2-2755 Universal Scaler PLUS C2-2755. User manuals are also available on the TV One website under Professional Video - Signal Processing & Distribution - Analog & Digital Converters.
