User manual for the TV One C2-2855 Universal Scaler PLUS C2-2855
The user manual for the TV One C2-2855 Universal Scaler PLUS C2-2855 provides
necessary instructions for the proper use of the product Professional Video - Signal Processing & Distribution - Analog & Digital Converters.

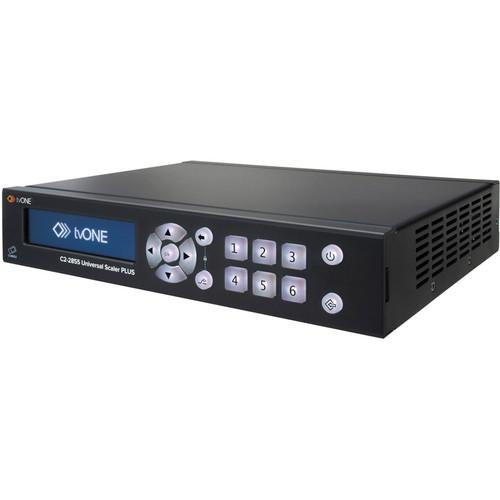

The C2-2855 Universal Scaler PLUS from TV One allows you to convert just about any type of video signal to just about any other signal with less than two frames of latency. It can support resolutions up to 1920 x 1200 at 60 Hz and will accept as well as output composite, component, VGA, DVI, HDMI, and SDI. Additionally, analog audio inputs and outputs allow stereo audio to be embedded or de-embedded from digital video signals. On top of scaling and frame rate conversion, the C2-2855 can also act as a 3 x 3 matrix switcher allowing you to route any of the inputs to any of the outputs.
If you own a TV One analog & digital converters and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the TV One C2-2855 Universal Scaler PLUS C2-2855 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the TV One C2-2855 Universal Scaler PLUS C2-2855:
Specifications
Inputs
Video 1 x Composite on BNC 1 x S-video (Y/C) on 4-pin DIN 1 x HDMI 1 x 3G-SDI on BNC 1 x VGA 1 x DVI-U: Supports composite, component (YPbPr, YUV), HDMI, DVI, VGA (RGBHV, RGBS, RGsB) - adapters required
Audio 3 x Unbalanced audio on terminal connectors 1 x Stereo 3.5 mm mini jack
Note: HDMI, SDI, and DVI-U pass embedded audio
Outputs
Video 1 x Composite on BNC 1 x S-video (Y/C) on 4-pin DIN 1 x HDMI 1 x 3G-SDI on BNC 1 x DVI-U: Supports composite, component (YPbPr, YUV), HDMI, DVI, VGA (RGBHV, RGBS, RGsB) - adapters required
Audio 1 x Unbalanced audio on terminal connectors
Note: HDMI, SDI, and DVI-U pass embedded audio
Maximum Resolution
Analog Computer: 1920 x 1080 Analog Video: 1080p60 HDMI and DVI Computer: 1920 x 1200 HDMI and DVI Video: 1080p60
Supported Resolutions
Video: NSTC, PAL, 720p,1080i,1080p Computer: 800 x 600 (SVGA) to 1920 x 1200 (WUXGA)
