User manual Ubiquiti Networks airFiber AF-2X 2 GHz Carrier Backhaul AF-2X-US

Operating instructions and pdf manual for use - Ubiquiti Networks airFiber AF-2X 2 GHz Carrier Backhaul AF-2X-US User manual, User manual Ubiquiti Networks airFiber AF-2X 2 GHz Carrier Backhaul AF-2X-US, Ubiquiti, Networks, airFiber, AF-2X, 2, GHz,


User manual for Ubiquiti Networks airFiber AF-2X 2 GHz Carrier Backhaul AF-2X-US

Ubiquiti Networks airFiber AF-2X 2 GHz Carrier Backhaul AF-2X-US
  • Manufacturer: Ubiquiti Networks
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Networking - Wireless Bridges
  • Safety instructions
  • Startup and operation of the wireless bridges
  • Tips for setting up your Ubiquiti Networks
  • Settings and expert assistance
  • Contact Ubiquiti Networks service
  • Troubleshooting
  • Warranty information
  • Price: 470 USD

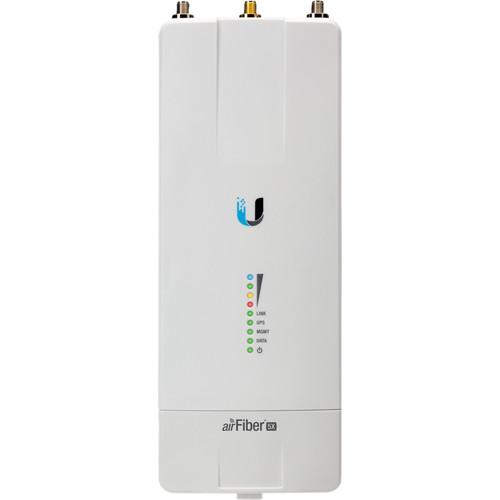

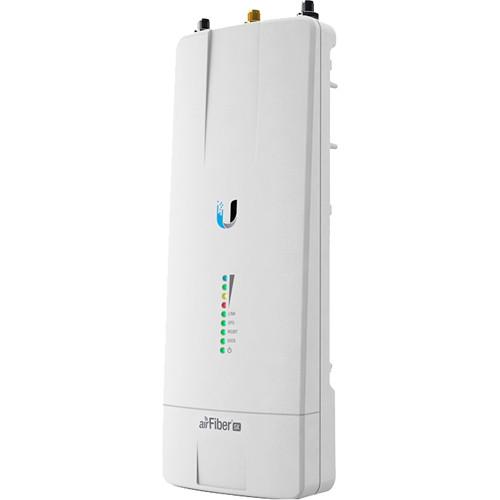

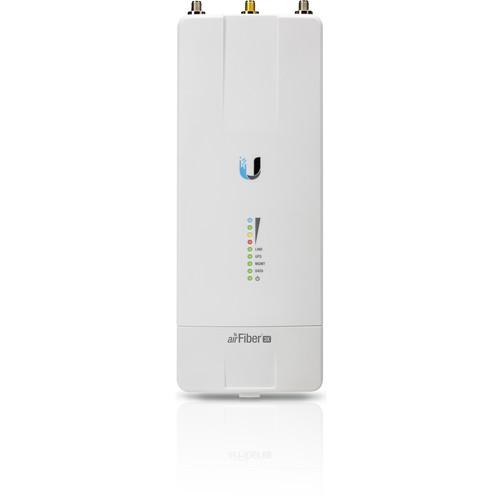

Ubiquiti Networks airFiber AF-2X 2 GHz Carrier Backhaul AF-2X-US Ubiquiti Networks airFiber AF-2X 2 GHz Carrier Backhaul AF-2X-US Ubiquiti Networks airFiber AF-2X 2 GHz Carrier Backhaul AF-2X-US
Click to enlarge image

We recommend checking out our discussion threads on the Ubiquiti Networks airFiber AF-2X 2 GHz Carrier Backhaul AF-2X-US, which address similar problems with connecting and setting up Wireless Bridges Ubiquiti Networks.



User manual for the Ubiquiti Networks airFiber AF-2X 2 GHz Carrier Backhaul AF-2X-US

The user manual for the Ubiquiti Networks airFiber AF-2X 2 GHz Carrier Backhaul AF-2X-US provides necessary instructions for the proper use of the product Computers & Solutions - Networking - Wireless Bridges.

The airFiber AF-2X 2 GHz Carrier Backhaul Radio from Ubiquiti Networks is designed for long-range, Point-to-Point (PtP) backhaul links. It features a high TDD throughput and Hybrid Division Duplexing (HDD) technology that helps the device achieve low latency. The airFiber 2X also allows users to customize backhaul links or upgrade existing PtP links.

The airFiber AF-2X operates using the 2 GHz frequency band and features a range of 656,168' / 200,000m. Included with this device is a GPS antenna mount, an external GPS antenna, a metal strap, two cable ties, a 24V/1A airFiber PoE adapter with a mounting bracket, and a power cord.
If you own a Ubiquiti Networks wireless bridges and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Ubiquiti Networks airFiber AF-2X 2 GHz Carrier Backhaul AF-2X-US in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Ubiquiti Networks airFiber AF-2X 2 GHz Carrier Backhaul AF-2X-US:
Specifications
Specifications
RF Connectors 2 x RP-SMA Weatherproof (CH0, CH1)
1 x SMA Weatherproof (GPS)
GPS Antenna External, Magnetic Base
Power Supply 24 V, 1 A PoE Gigabit Adapter (included)
Power Method Passive Power over Ethernet
Mounting airFiber X Mount (Rocket Mount compatible)
GPS Pole Mount (included)
Certifications DFS Certified
FCC Part 15.407
CE EN 302502 v1.2.1, EN 301 893 v1.7.1
Networking Interfaces
Data Port 1 x 10/100/1000 Ethernet Port
Management Port 1 x 10/100 Ethernet Port
System
Processor INVICTUS IC
Maximum Throughput 525 Mbps
Maximum Range 656,168' / 200,000 m
Encryption 128-bit AES
Operating System airOS F
Wireless Modes Master/Slave
Radio Frequencies
Operating Frequency 2400-2500 MHz
(Dependent on regulatory region)
Power Max. Conducted TX Power: 30 dBm
(Dependent on regulatory region)
Frequency Accuracy ± 2.5 ppm without GPS synchronization
± 0.2 ppm with GPS synchronization
Channel Bandwidth 10/20/30/40/50 MHz selectable
Programmable uplink and downlink duty cycles
Environmental
Operating Temperature -40 to 131°F / -40 to 55°C
Dimensions & Weight
Dimensions 8.82 x 3.32 x 1.89" / 224.03 x 84.33 x 48.01 mm
Weight 0.77 lb / 0.35 kg
Packaging Info
Package Weight 2.5 lb
Box Dimensions (LxWxH) 10.4 x 4.5 x 4.4"
The user manual for the Ubiquiti Networks airFiber AF-2X 2 GHz Carrier Backhaul AF-2X-US can be downloaded in .pdf format if it did not come with your new wireless bridges, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Ubiquiti Networks users keep a unique electronic library for Ubiquiti Networks wireless bridgess, where you can use our link to download the user manual for the Ubiquiti Networks airFiber AF-2X 2 GHz Carrier Backhaul AF-2X-US.

The user manual lists all of the functions of the Ubiquiti Networks airFiber AF-2X 2 GHz Carrier Backhaul AF-2X-US, all the basic and advanced features and tells you how to use the wireless bridges. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Ubiquiti Networks service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Ubiquiti Networks airFiber AF-2X 2 GHz Carrier Backhaul AF-2X-US. User manuals are also available on the Ubiquiti Networks website under Computers & Solutions - Networking - Wireless Bridges.
