User manual for Ubiquiti Networks airFiber AF-3X 3 GHz Carrier Backhaul AF-3X-US
- Manufacturer: Ubiquiti Networks
- Basic description and contents of package
- Product classification: Computers & Solutions - Networking - Wireless Bridges
- Safety instructions
- Startup and operation of the wireless bridges
- Tips for setting up your Ubiquiti Networks
- Settings and expert assistance
- Contact Ubiquiti Networks service
- Troubleshooting
- Warranty information
- Price: 789 USD

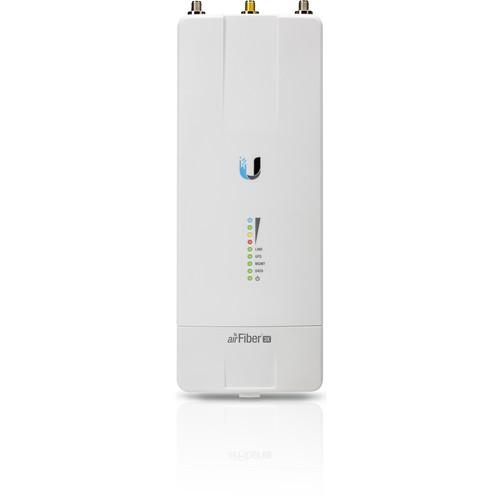

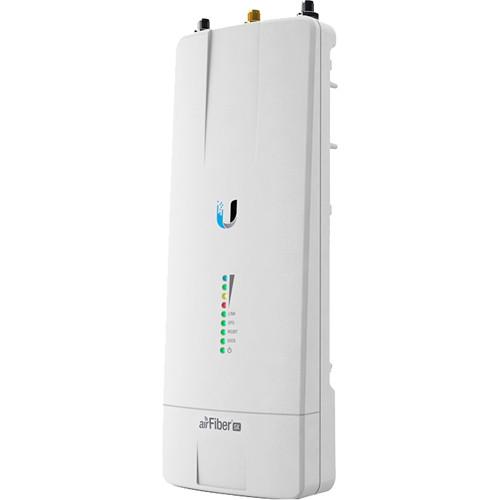

Click to enlarge image
|
We recommend checking out our discussion threads on the Ubiquiti Networks airFiber AF-3X 3 GHz Carrier Backhaul AF-3X-US,
which address similar problems with connecting and setting up Wireless Bridges Ubiquiti Networks.
|
User manual for the Ubiquiti Networks airFiber AF-3X 3 GHz Carrier Backhaul AF-3X-US
The user manual for the Ubiquiti Networks airFiber AF-3X 3 GHz Carrier Backhaul AF-3X-US provides
necessary instructions for the proper use of the product Computers & Solutions - Networking - Wireless Bridges.
The airFiber AF-3X 3 GHz Carrier Backhaul Radio from Ubiquiti Networks is designed for long-range, Point-to-Point (PtP) backhaul links. It features a high TDD throughput and Hybrid Division Duplexing (HDD) technology that helps the device achieve low latency. The airFiber 3X also allows users to customize backhaul links or upgrade existing PtP links.
The airFiber AF-3X operates using the 3 GHz frequency band and features a range of 656,168' / 200,000m. Included with this device is a GPS antenna mount, an external GPS antenna, a metal strap, two cable ties, a 24V/1A airFiber PoE adapter with a mounting bracket, and a power cord.
|
If you own a Ubiquiti Networks wireless bridges and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Ubiquiti Networks airFiber AF-3X 3 GHz Carrier Backhaul AF-3X-US in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Ubiquiti Networks airFiber AF-3X 3 GHz Carrier Backhaul AF-3X-US:
| RF Connectors | 2 x RP-SMA Weatherproof (CH0, CH1)
1 x SMA Weatherproof (GPS) | | GPS Antenna | External, Magnetic Base | | Power Supply | 24 V, 1 A PoE Gigabit Adapter (included) | | Power Method | Passive Power over Ethernet | | Mounting | airFiber X Mount (Rocket Mount compatible)
GPS Pole Mount (included) | | Certifications | DFS Certified
FCC Part 15.407
CE EN 302502 v1.2.1, EN 301 893 v1.7.1 | | Data Port | 1 x 10/100/1000 Ethernet Port | | Management Port | 1 x 10/100 Ethernet Port | | Processor | INVICTUS IC | | Maximum Throughput | 525 Mbps | | Maximum Range | 656,168' / 200,000 m | | Encryption | 128-bit AES | | Operating System | airOS F | | Wireless Modes | Master/Slave | | Operating Frequency | 3300-3900 MHz
(Dependent on regulatory region) | | Power | Max. Conducted TX Power: 29 dBm
(Dependent on regulatory region) | | Frequency Accuracy | ± 2.5 ppm without GPS synchronization
± 0.2 ppm with GPS synchronization | | Channel Bandwidth | 10/20/30/40/50 MHz selectable
Programmable uplink and downlink duty cycles | | Operating Temperature | -40 to 131°F / -40 to 55°C | | Dimensions | 8.82 x 3.32 x 1.89" / 224.03 x 84.33 x 48.01 mm | | Weight | 0.77 lb / 0.35 kg | |
The user manual for the Ubiquiti Networks airFiber AF-3X 3 GHz Carrier Backhaul AF-3X-US can be downloaded in .pdf
format if it did not come with your new wireless bridges, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Ubiquiti Networks users keep a unique electronic library
for Ubiquiti Networks wireless bridgess,
where you can use our link to download the user manual for the Ubiquiti Networks airFiber AF-3X 3 GHz Carrier Backhaul AF-3X-US.
The user manual lists all of the functions of the Ubiquiti Networks airFiber AF-3X 3 GHz Carrier Backhaul AF-3X-US,
all the basic and advanced features and tells you how to use the wireless bridges.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Ubiquiti Networks service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Ubiquiti Networks airFiber AF-3X 3 GHz Carrier Backhaul AF-3X-US. User manuals are also
available on the Ubiquiti Networks website under Computers & Solutions - Networking - Wireless Bridges.
