User manual for Ubiquiti Networks ER-X EdgeRouter X ER-X
Overall Rating: 4.5
90% of respondents would recommend this to a friend.
- Manufacturer: Ubiquiti Networks
- Basic description and contents of package
- Product classification: Computers & Solutions - Networking - Network Routers
- Safety instructions
- Startup and operation of the network routers
- Tips for setting up your Ubiquiti Networks
- Settings and expert assistance
- Contact Ubiquiti Networks service
- Troubleshooting
- Warranty information
- Price: 60 USD
Click to enlarge image
|
We recommend checking out our discussion threads on the Ubiquiti Networks ER-X EdgeRouter X ER-X,
which address similar problems with connecting and setting up Network Routers Ubiquiti Networks.
|
User manual for the Ubiquiti Networks ER-X EdgeRouter X ER-X
The user manual for the Ubiquiti Networks ER-X EdgeRouter X ER-X provides
necessary instructions for the proper use of the product Computers & Solutions - Networking - Network Routers.

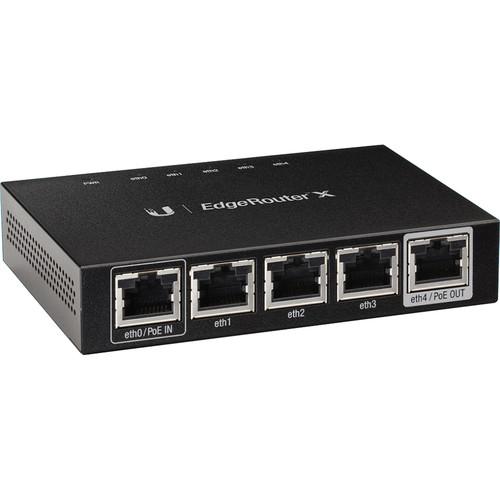

Take advantage of fast Gigabit Ethernet data speeds with the ER-X EdgeRouter X from Ubiquiti Networks. This router comes equipped with a total of five Gigabit Ethernet ports: one data/PoE input port, three data ports, and one data/PoE passthrough port. Inside the router you will find a 880 MHz dual-core processor along with 256 MB of DDR3 RAM and 256 MB of NAND code storage.
The advanced hardware found inside this Ubiquiti Networks router allows you to leverage the power of PoE. Eliminate the need for power adapters and power the EdgeRouter X with 24 V passive PoE input. You can also utilize the PoE passthrough feature to power a single airMAX device.
|
If you own a Ubiquiti Networks network routers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Ubiquiti Networks ER-X EdgeRouter X ER-X in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Ubiquiti Networks ER-X EdgeRouter X ER-X:
| Ethernet Networking Interfaces | Data/PoE Input Port
1 x 10/100/1000 RJ45 port
Data Ports
3 x 10/100/1000 RJ45 ports
Data/PoE Passthrough Port
1 x 10/100/1000 RJ45 port | | PoE Switch | N/A | | PoE Out-Voltage Range | N/A | | Power Consumption | 5 W | | Power Input | 12 VDC, 0.5 A power adapter (included) or 24 V Passive PoE | | Power Supply | External AC/DC adapter | | Supported Voltage | 9 to 26 VDC | | Button | Reset | | LED | Power, Ethernet 0-4 | | Processor | Dual-core 880 MHz, MIPS1004Kc | | System Memory | 256 MB DDR3 RAM | | Code Storage | 256 MB NAND | | Certifications | CE, FCC, IC | | Wall-Mount | Yes | | ESD/EMP Protection | Air: ± 24 kV, Contact: ± 24 kV | | Operating Temperature | 14 to 113°F / -10 to 45°C | | Operating Humidity | 10 to 90% non-condensing | | Interface/Encapsulation | Ethernet
802.1q VLAN
PPPoE
GRE
IP in IP
Bridging
Bonding (802.3ad) | | Addressing | Static IPv4/IPv6 addressing
DHCP/DHCPv6 | | Routing | Static Routes
OSPF/OSPFv3
RIP/RIPng
BGP (with IPv6 Support)
IGMP Proxy | | Security | ACL-Based Firewall
Zone-Based Firewall
NAT | | VPN | IPSec Site-to-Site and Remote Access
OpenVPN Site-to-Site and Remote Access
PPTP Remote Access
L2TP Remote Access
PPTP Client | | Services | DHCP/DHCPv6 Server
DHCP/DHCPv6 Relay
Dynamic DNS
DNS Forwarding
VRRP
RADIUS Client
Web Caching
PPPoE Server | | QoS | FIFO
Stochastic Fairness Queueing
Random Early Detection
Token Bucket Filter
Deficit Round Robin
Hierarchical Token Bucket
Ingress Policing | | Management | Web UI
CLI (Console, SSH, Telnet)
SNMP
NetFlow
LLDP
NTP
UBNT Discovery Protocol
Logging | | Dimensions | 4.33 x 2.95 x 0.87" / 110 x 75 x 22 mm | | Weight | 6.17 oz / 175 g | | Package Weight | 0.75 lb | | Box Dimensions (LxWxH) | 5.8 x 4.0 x 2.2" | |
The user manual for the Ubiquiti Networks ER-X EdgeRouter X ER-X can be downloaded in .pdf
format if it did not come with your new network routers, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Ubiquiti Networks users keep a unique electronic library
for Ubiquiti Networks network routerss,
where you can use our link to download the user manual for the Ubiquiti Networks ER-X EdgeRouter X ER-X.
The user manual lists all of the functions of the Ubiquiti Networks ER-X EdgeRouter X ER-X,
all the basic and advanced features and tells you how to use the network routers.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Ubiquiti Networks service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Ubiquiti Networks ER-X EdgeRouter X ER-X. User manuals are also
available on the Ubiquiti Networks website under Computers & Solutions - Networking - Network Routers.
