User manual Ubiquiti Networks NBE-5AC-16 NanoBeam ac NBE-5AC-16

Operating instructions and pdf manual for use - Ubiquiti Networks NBE-5AC-16 NanoBeam ac NBE-5AC-16 User manual, User manual Ubiquiti Networks NBE-5AC-16 NanoBeam ac NBE-5AC-16, Ubiquiti, Networks, NBE-5AC-16, NanoBeam, ac, NBE-5AC-16,

User manual for Ubiquiti Networks NBE-5AC-16 NanoBeam ac NBE-5AC-16

Ubiquiti Networks NBE-5AC-16 NanoBeam ac NBE-5AC-16
  • Manufacturer: Ubiquiti Networks
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Networking - Wireless Bridges
  • Safety instructions
  • Startup and operation of the wireless bridges
  • Tips for setting up your Ubiquiti Networks
  • Settings and expert assistance
  • Contact Ubiquiti Networks service
  • Troubleshooting
  • Warranty information
  • Price: 80 USD

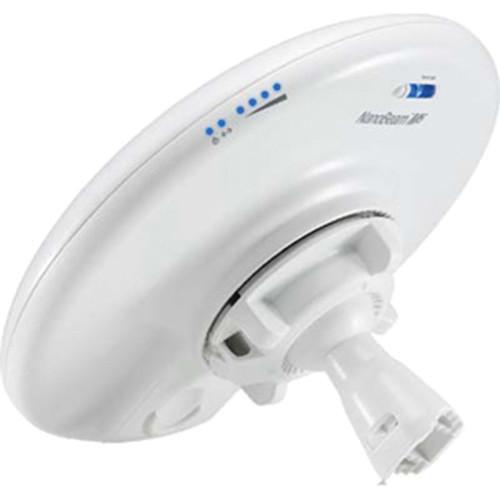

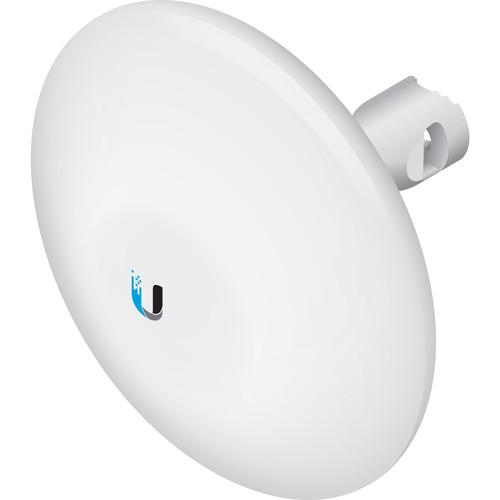

Ubiquiti Networks NBE-5AC-16 NanoBeam ac NBE-5AC-16 Ubiquiti Networks NBE-5AC-16 NanoBeam ac NBE-5AC-16
Click to enlarge image
We recommend checking out our discussion threads on the Ubiquiti Networks NBE-5AC-16 NanoBeam ac NBE-5AC-16, which address similar problems with connecting and setting up Wireless Bridges Ubiquiti Networks.


User manual for the Ubiquiti Networks NBE-5AC-16 NanoBeam ac NBE-5AC-16

The user manual for the Ubiquiti Networks NBE-5AC-16 NanoBeam ac NBE-5AC-16 provides necessary instructions for the proper use of the product Computers & Solutions - Networking - Wireless Bridges.

The NBE-5AC-16 NanoBeam ac High-Performance airMAX Bridge from Ubiquiti Networks directs RF energy in a tight beamwidth. It maximizes and improves noise immunity by its uniform bandwidth and also blocks or spatially filters out noise. This feature helps in areas crowded with other RF signals of the same or similar frequency.
If you own a Ubiquiti Networks wireless bridges and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Ubiquiti Networks NBE-5AC-16 NanoBeam ac NBE-5AC-16 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Ubiquiti Networks NBE-5AC-16 NanoBeam ac NBE-5AC-16:
Specifications
General Specifications
Processor Atheros MIPS 74Kc, 720 MHz
Memory 128 MB DDR2, 8 MB flash
Networking Interface 1 x 10/100/1000 Ethernet port
Power
Power Supply 24 V, 0.5 A Gigabit PoE
Power Method Passive PoE (pairs 4, 5+ and 7, 8 return)
Power Consumption 6 W maximum
TX Power Specifications Modulation: airMAX ac
Data Rate: 1 x BPSK (½)
Average TX: 26 dBm
Tolerance: ± 2 dB

Modulation: airMAX ac
Data Rate: 2 x QPSK (½)
Average TX: 26 dBm
Tolerance: ± 2 dB

Modulation: airMAX ac
Data Rate: 2 x QPSK (¾)
Average TX: 26 dBm
Tolerance: ± 2 dB

Modulation: airMAX ac
Data Rate: 4 x 16QAM (½)
Average TX: 26 dBm
Tolerance: ± 2 dB

Modulation: airMAX ac
Data Rate: 4 x 16QAM (¾)
Average TX: 26 dBm
Tolerance: ± 2 dB

Modulation: airMAX ac
Data Rate: 6 x 64QAM (2/3)
Average TX: 25 dBm
Tolerance: ± 2 dB

Modulation: airMAX ac
Data Rate: 6 x 64QAM (¾)
Average TX: 25 dBm
Tolerance: ± 2 dB

Modulation: airMAX ac
Data Rate: 6 x 64QAM (5/6)
Average TX: 24 dBm
Tolerance: ± 2 dB

Modulation: airMAX ac
Data Rate: 8 x 256QAM (¾)
Average TX: 22 dBm
Tolerance: ± 2 dB

Modulation: airMAX ac
Data Rate: 8 x 256QAM (5/6)
Average TX: 22 dBm
Tolerance: ± 2 dB
RX Power Specifications Modulation: airMAX ac
Data Rate: 1 x BPSK (½)
Sensitivity: -96 dBm
Tolerance: ± 2 dB

Modulation: airMAX ac
Data Rate: 2 x QPSK (½)
Sensitivity: -95 dBm
Tolerance: ± 2 dB

Modulation: airMAX ac
Data Rate: 2 x QPSK (¾)
Sensitivity: -92 dBm
Tolerance: ± 2 dB

Modulation: airMAX ac
Data Rate: 4 x 16QAM (½)
Sensitivity: -90 dBm
Tolerance: ± 2 dB

Modulation: airMAX ac
Data Rate: 4 x 16QAM (¾)
Sensitivity: -86 dBm
Tolerance: ± 2 dB

Modulation: airMAX ac
Data Rate: 6 x 64QAM (2/3)
Sensitivity: -83 dBm
Tolerance: ± 2 dB

Modulation: airMAX ac
Data Rate: 6 x 64QAM (¾)
Sensitivity: -77 dBm
Tolerance: ± 2 dB

Modulation: airMAX ac
Data Rate: 6 x 64QAM (5/6)
Sensitivity: -74 dBm
Tolerance: ± 2 dB

Modulation: airMAX ac
Data Rate: 8 x 256QAM (¾)
Sensitivity: -69 dBm
Tolerance: ± 2 dB

Modulation: airMAX ac
Data Rate: 8 x 256QAM (5/6)
Sensitivity: -65 dBm
Tolerance: ± 2 dB
Antenna
Gain 16 dBi
Polarization Dual linear
Operating Frequency 5150 to 5875 MHz
5725 to 5850 MHz
Wind Loading 21.4 N @ 200 km/h (4.8 lbf @ 125 mph)
Wind Survivability 200 km/hour (125 mph)
LED Indicator Specifications
LEDs 1 x Power
1 x LAN
4 x WLAN
Signal Strength LEDs Software-adjustable to correspond to custom RSSI levels
Channel Size Support
PtP Mode 10/20/30/40/50/60/80 MHz
PtMP Mode 10/20/30/40 MHz
Environmental
Operating Temperature -40 to +158°F (-40 to +70°C)
Operating Humidity 5 to 95% (non-condensing)
Tests
Salt Fog Test IEC 68-2-11 (ASTM B117)
Equivalent: MIL-STD-810 G method 509.5
Vibration Test IEC 68-2-6
Temperature Shock Test IEC 68-2-14
UV Test IEC 68-2-5 at 104°F (40°C)
Equivalent: ETS 300 019-1-4
Wind-Driven Rain Test ETS 300 019-1-4
Equivalent: MIL-STD-810 G method 506.5
Other
Mounting Pole-mount (kit included), wall-mount
ESD/EMP Protection Air: ± 24 kV
Contact: ± 24 kV
Compliance and Approvals
Compliance RoHS
Approvals FCC, IC, CE
Physical Characteristics
Enclosure Outdoor UV stabilized plastic
Dimensions 5.51 x 5.51 x 2.13" (13.99 x 13.99 x 5.41 cm)
Weight 0.71 lb (0.32 kg)
Packaging Info
Package Weight 1.7 lb
Box Dimensions (LxWxH) 7.6 x 7.0 x 4.4"
The user manual for the Ubiquiti Networks NBE-5AC-16 NanoBeam ac NBE-5AC-16 can be downloaded in .pdf format if it did not come with your new wireless bridges, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Ubiquiti Networks users keep a unique electronic library for Ubiquiti Networks wireless bridgess, where you can use our link to download the user manual for the Ubiquiti Networks NBE-5AC-16 NanoBeam ac NBE-5AC-16.

The user manual lists all of the functions of the Ubiquiti Networks NBE-5AC-16 NanoBeam ac NBE-5AC-16, all the basic and advanced features and tells you how to use the wireless bridges. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Ubiquiti Networks service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Ubiquiti Networks NBE-5AC-16 NanoBeam ac NBE-5AC-16. User manuals are also available on the Ubiquiti Networks website under Computers & Solutions - Networking - Wireless Bridges.
