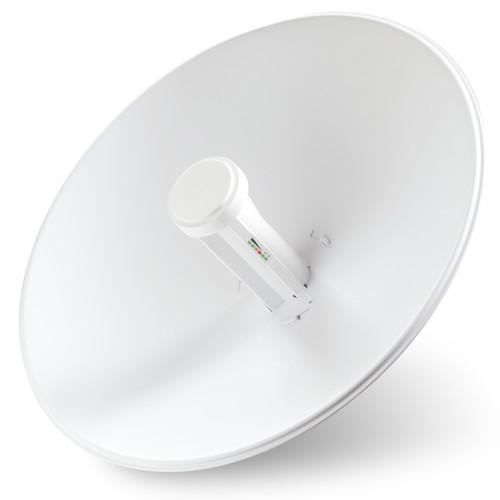

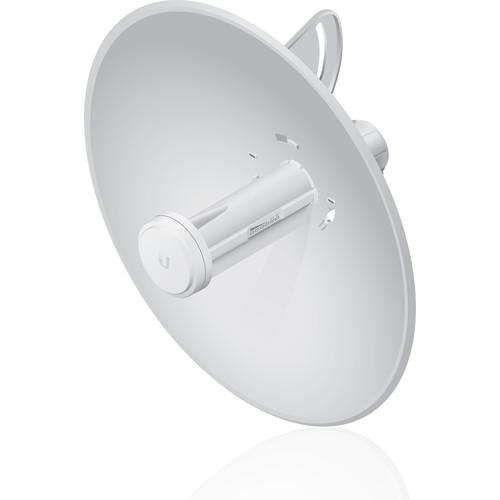

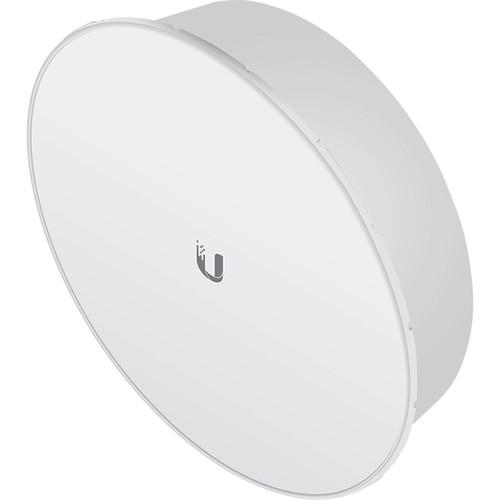

Install the 1-Pack of PBE-M5-300-ISO-US 1PK PowerBeam M5 ISO 5 GHz airMAX Bridges with RF Isolated Reflector from Ubiquiti Networks into a variety of network configurations including point-to-multipoint, wireless client, or point-to-point and take advantage of enhanced beamwidth technology. Ubiquiti Networks combines beamwidth technology with RF isolation to filter out noise, creating a cleaner and more reliable connection. Built-in airMAX technology utilizes the Time Division Multiple Access (TDMA) signal which breaks down the signal into specified time slots to reduce collisions. As a result, you receive reduced latency, noise immunity, and improved throughput.
If you own a Ubiquiti Networks wireless bridges and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Ubiquiti Networks PBE-M5-300-ISO-US 1PK PBE-M5-300-ISO-US 1PK in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Ubiquiti Networks PBE-M5-300-ISO-US 1PK PBE-M5-300-ISO-US 1PK:
Specifications
Processor
Atheros MIPS 74Kc, 560 MHz
Memory
64 MB DDR2, 8 MB flash
Networking Interface
1 x 10/100 Ethernet port
Wireless Approvals
FCC, IC, CE
RoHS Compliance
Yes
Power Supply
24 V, 0.5 A PoE
Power Method
Passive PoE (Pairs 4, 5+; 7, 8 Return)
Voltage Range
20-26 VDC
Power Consumption
6 W (max.)
Gain
22 dBi
Operating Frequency
Worldwide: 5170 - 5875 MHz USA: 5725 - 5850 MHz
Wind Loading
47 lbf @ 125 mph (210 N @ 200 km/h)
Wind Survivability
125 mph (200 km/h)
LEDs
1 x Power 1 x LAN 4 x WLAN
Signal Strength LEDs
Software-adjustable to correspond to custom RSSI levels
Channel Sizes
5/8/10/20/30/40 MHz
Polarization
Dual Linear
Enclosure
Outdoor UV stabilized plastic
Mounting
Pole-mounted kit included
ESD/EMP Protection
Air: ± 24 kV Contact: ± 24 kV
Temperature & Humidity
Operating Temperature: -40 to 158°F / -40 to 70°C Operating Humidity: 5 to 95% non-condensing
Salt Fog Test
IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5
Vibration Test
IEC 68-2-6
Temperature Shock Test
IEC 68-2-14
UV Test
IEC 68-2-5 at 104° F (40° C), Equivalent: ETS 300 019-1-4
Wind-Driven Rain Test
ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5
Output Power
Output Power 24 dBm TX Power Specifications 802.11a Data Rate Avg. TX Tolerance 6 - 24 Mbps 24 dBm ± 2 dB 36 Mbps 24 dBm ± 2 dB 48 Mbps 23 dBm ± 2 dB 54 Mbps 22 dBm ± 2 dB 802.11n/airMAX Data Rate Avg. TX Tolerance MCS0 24 dBm ± 2 dB MCS1 24 dBm ± 2 dB MCS2 23 dBm ± 2 dB MCS3 23 dBm ± 2 dB MCS4 22 dBm ± 2 dB MCS5 21 dBm ± 2 dB MCS6 20 dBm ± 2 dB MCS7 20 dBm ± 2 dB MCS8 24 dBm ± 2 dB MCS9 24 dBm ± 2 dB MCS10 23 dBm ± 2 dB MCS11 23 dBm ± 2 dB MCS12 22 dBm ± 2 dB MCS13 21 dBm ± 2 dB MCS14 20 dBm ± 2 dB MCS15 20 dBm ± 2 dB
RX Power Specifications 802.11a Data Rate Sensitivity Tolerance 6 - 24 Mbps -94 dBm Min. ± 2 dB 36 Mbps -80 dBm ± 2 dB 48 Mbps -77 dBm ± 2 dB 54 Mbps -75 dBm ± 2 dB 802.11n/airMAX Data Rate Sensitivity Tolerance MCS0 -96 dBm ± 2 dB MCS1 -95 dBm ± 2 dB MCS2 -92 dBm ± 2 dB MCS3 -90 dBm ± 2 dB MCS4 -86 dBm ± 2 dB MCS5 -83 dBm ± 2 dB MCS6 -77 dBm ± 2 dB MCS7 -74 dBm ± 2 dB MCS8 -96 dBm ± 2 dB MCS9 -95 dBm ± 2 dB MCS10 -92 dBm ± 2 dB MCS11 -90 dBm ± 2 dB MCS12 -86 dBm ± 2 dB MCS13 -83 dBm ± 2 dB MCS14 -77 dBm ± 2 dB MCS15 -74 dBm ± 2 dB
Max VSWR
1.5:1
Built-In Mechanical Downtilt
±20°
Dimensions
14.33 x 14.33 x 10.87" / 364 x 364 x 276 mm
Weight
5.62 lb / 2.55 kg
