User manual for Ubiquiti Networks Power Station 5 Wireless Bridge PS5-22V
- Manufacturer: Ubiquiti Networks
- Basic description and contents of package
- Product classification: Computers & Solutions - Networking - Wireless Bridges
- Safety instructions
- Startup and operation of the wireless bridges
- Tips for setting up your Ubiquiti Networks
- Settings and expert assistance
- Contact Ubiquiti Networks service
- Troubleshooting
- Warranty information
- Price: 169 USD
|
We recommend checking out our discussion threads on the Ubiquiti Networks Power Station 5 Wireless Bridge PS5-22V,
which address similar problems with connecting and setting up Wireless Bridges Ubiquiti Networks.
|
User manual for the Ubiquiti Networks Power Station 5 Wireless Bridge PS5-22V
The user manual for the Ubiquiti Networks Power Station 5 Wireless Bridge PS5-22V provides
necessary instructions for the proper use of the product Computers & Solutions - Networking - Wireless Bridges.

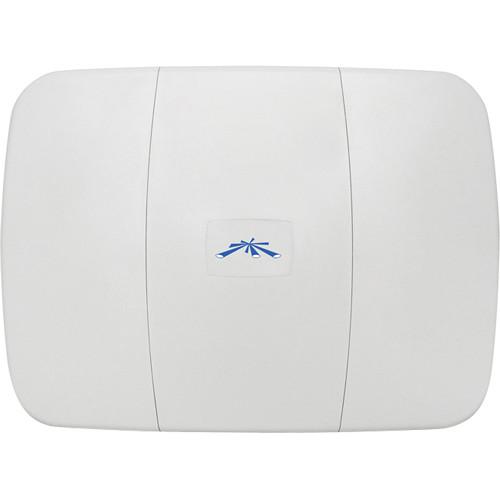

The Power Station 5 Wireless Bridge from Ubiquiti has an Atheros AR2313 SOC, MIPS 4KC processor, 180 MHz and airOS software. It features 16MB SDRAM, 4MB flash memory, and 10/100 BASE-TX (Cat5, RJ-45) networking interface. The wireless access point offers 22 dBi (5400-5900 MHz) antenna gain.
|
If you own a Ubiquiti Networks wireless bridges and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Ubiquiti Networks Power Station 5 Wireless Bridge PS5-22V in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Ubiquiti Networks Power Station 5 Wireless Bridge PS5-22V:
| Processor | 180 MHz Atheros AR2313 SOC, MIPS 4KC | | Memory | 32 MB SDRAM, 8 MB flash | | Networking Interface | 1 x 10/100 BASE-TX (Cat5, RJ-45) Ethernet | | Adjustable Channel Size Support | 5/10/20/40 MHz | | Connectors | 2 x N-type external for external sector/omni/dish applications | | Software | AirOS | | Power Supply | 12V, 1A (12 W) supply and injector (included) | | Power Method | Passive Power over Ethernet (pairs 4, 5+; 7, 8 return) | | Power Consumption | Maximum: 6.5 W | | Operating Frequency | Radio: 5.475 to 5.825 GHz
TX Power Specifications
Modulation: 802.11g OFDM
Data Rate: Average TX: Tolerance
6 Mb/s: 26 dBm: ± 1.5 dB
9 Mb/s: 26 dBm: ± 1.5 dB
12 Mb/s: 26 dBm: ± 1.5 dB
18 Mb/s: 26 dBm: ± 1.5 dB
24 Mb/s: 26 dBm: ± 1.5 dB
36 Mb/s: 24 dBm: ± 1.5 dB
48 Mb/s: 23 dBm: ± 1.5 dB
54 Mb/s: 21 dBm: ± 1.5 dB
RX Power Specification
Modulation: 802.11g OFDM
Data Rate: Sensitivity: Tolerance
6 Mb/s: -94 dBm: ± 1.5 dB
9 Mb/s: -93 dBm: ± 1.5 dB
12 Mb/s: -91 dBm: ± 1.5 dB
18 Mb/s: -90 dBm: ± 1.5 dB
24 Mb/s: -86 dBm: ± 1.5 dB
36 Mb/s: -83 dBm: ± 1.5 dB
48 Mb/s: -77 dBm: ± 1.5 dB
54 Mb/s: -74 dBm: ± 1.5 dB | | Gain | 22 dBi | | Type | Outdoor, integrated vertical polarity panel | | Material | UV stabilized plastic | | VSWR | 1.4:1.0 | | Polarization | Vertical | | Front to Back Ratio | 30dB+ | | Operating Frequency | 5400 to 5900 MHz | | Impedance | 50 ohm | | Beamwidth | 3 dB: 6° | | Wind Survivability | 185 km/hour | | Range | Outdoor (BaseStation Antenna Dependent): Above 50 Km | | Operating Temperature | -40 to +185°F (-40 to +85°C) | | Operating Humidity | 5 to 95% (condensing) | | Shock and Vibration | ETSI300-019-1.4 | | Compliance | RoHS | | Approvals | FCC Part 15.247, IC RS210, CE | | Enclosure | Material: Die cast metal
Dimensions (L x W x H): 18.0 x 2.0 x 13.0" (45.7 x 5.1 x 33.0 cm) | | Weight | 6.7 lb (3.0 Kg) | |
