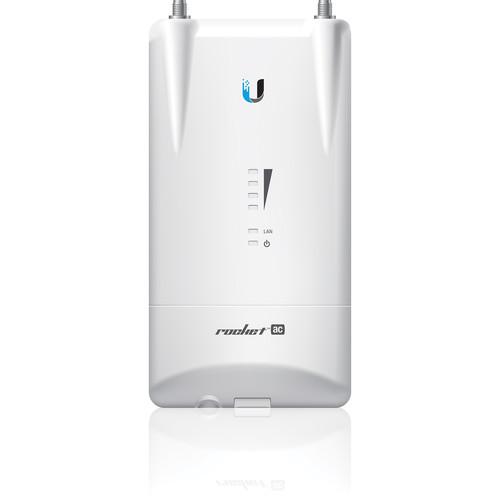

Designed to mount and interface with the Ubiquiti Networks RocketDish, the R5AC-LITE rocket ac airMAX ac BaseStation from Ubiquiti Networks uses airMAX ac technology to provide up to 450 Mbps throughput. With an outdoor UV stabilized plastic enclosure this BaseStation can be installed in some of the harshest conditions allowing for the data signal to reach greater distances. Inside the enclosure you will find a 720 MHz Atheros MIPS 74Kc processor complete with 128MB of DDR2 RAM and 16MB of NOR Flash memory for enhanced processing power to allow for a stronger more stable signal. Ports on the BaseStation include one Gigabit Ethernet port and two waterproof RP-SMA RF connections to prevent against water damage.

The BaseStation is capable of operating in both Access Point, and Station modes allowing you to configure it to suit a variety of networking needs. Integrated QoS functionality allocates network resources to provide enhanced streaming of data while the airMAX engine with custom IC improves TDMA latency. Improved TDMA latency greatly increases data throughput and provides enhanced network speeds.
If you own a Ubiquiti Networks wireless bridges and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Ubiquiti Networks R5AC-LITE rocket ac airMAX ac R5AC-LITE-US in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Ubiquiti Networks R5AC-LITE rocket ac airMAX ac R5AC-LITE-US:
Physical / Electrical / Environmental
Enclosure Outdoor UV stabilized plastic
Processor Atheros MIPS 74Kc, 720 MHz
Memory 128 MB DDR2 SDRAM, 16 MBNOR Flash
Networking Interface 1 x 10/100/1000 Mbps
RF Connections 2 x RP-SMA waterproof
LEDs 4 x signal strength
Power
Ethernet
Max Power Consumption 8.5 W
Power Supply 24 V, 0.5 A Gigabit PoE adapter
Power Method Passive PoE (Pairs 4, 5+, 7, 8 return)
ESD/EMP Protection ± 24 KV air / contact
Operating Temperature -40 to 176°F / -40 to 80°C
Operating Humidity 5 to 95% non-condensing
Shock and Vibration ETSI300-019-1.4
Software Specifications
Modes Access Point
Station
Services Web Server
SNMP
SSH Server
Telnet
Ping Watchdog
DHCP
NAT
Bridging
Routing
Utilities Antenna Alignment Tool
Discovery Utility
Site Survey
Ping
Traceroute
Speed Test
Distance Adjustment Dynamic Ack and Ackless Mode
Power Adjustment Range Software Adjustable UI or CLI
Security WPA2 AES Only
QoS Supports Packet Level Classification WMM and User Customer Level: High/medium/low
Statistical Reporting Up Time
Packet Errors
Data Rates
Wireless Distance
Ethernet Link Rate
Channel Sizes PtP Mode
10/20/30/40/50/60/80 MHz
PtMP Mode
10/20/30/40 MHz
Other Remote Reset Support
Software Enabled/Disabled
VLAN Support
256QAM
Ubiquiti Specifications 30/50/60 MHz Channels
airMAX ac Mode
Traffic Shaping with Burst Support
Discovery Protocol
Frequency Band Offset
Ackless Mode
Compliance and Approvals
Wireless Approvals FCC, IC, CE
RoHS Compliance Yes
Frequency
Operating Frequency Worldwide: 5150 - 5875 MHz
USA: 5725 - 5850 MHz
Output Power 27 dBm
TX Power Specifications Modulation
airMAX ac
Data Rate Avg. TX Tolerance
1x BPSK (1/2) 27 dBm ± 2 dB
2x QPSK (1/2) 27 dBm ± 2 dB
2x QPSK (3/4) 27 dBm ± 2 dB
4x 16QAM (1/2) 27 dBm ± 2 dB
4x 16QAM (3/4) 27 dBm ± 2 dB
6x 64QAM (2/3) 27 dBm ± 2 dB
6x 64QAM (3/4) 26 dBm ± 2 dB
6x 64QAM (5/6) 25 dBm ± 2 dB
8x 256QAM (3/4) 23 dBm ± 2 dB
8x 256QAM (5/6) 22 dBm ± 2 dB
RX Power Specifications Modulation
airMAX ac
Data Rate Avg. TX Tolerance
1x BPSK (1/2) -96 dBm ± 2 dB
2x QPSK (1/2) -95 dBm ± 2 dB
2x QPSK (3/4) -92 dBm ± 2 dB
4x 16QAM (1/2) -90 dBm ± 2 dB
4x 16QAM (3/4) -86 dBm ± 2 dB
6x 64QAM (2/3) -83 dBm ± 2 dB
6x 64QAM (3/4) -77 dBm ± 2 dB
6x 64QAM (5/6) -74 dBm ± 2 dB
8x 256QAM (3/4) -69 dBm ± 2 dB
8x 256QAM (5/6) -65 dBm ± 2 dB
Dimensions & Weight
Dimensions 6.38 x 3.31 x 1.46" / 162 x 84 x 37 mm
Weight 8.81 oz / 250 g
Packaging Info
Package Weight 1.5 lb
Box Dimensions (LxWxH) 8.5 x 5.0 x 3.5"
