User manual for the Ubiquiti Networks UAP-AC-EDU UniFi Access Point UAP-AC-EDU-4-US

The user manual for the Ubiquiti Networks UAP-AC-EDU UniFi Access Point UAP-AC-EDU-4-US provides necessary instructions for the proper use of the product Computers & Solutions - Networking - Wireless Access Points.

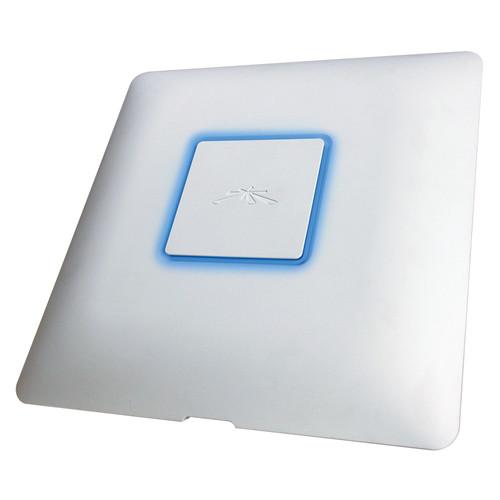

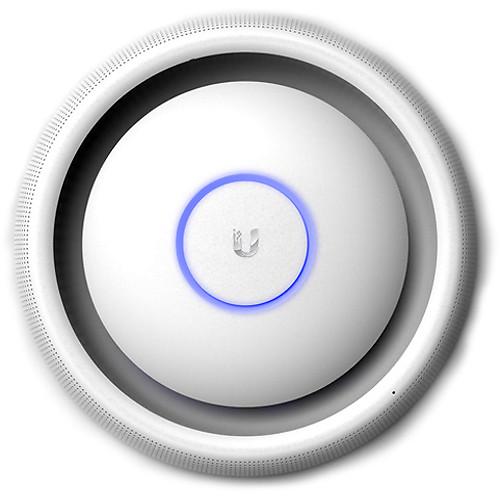

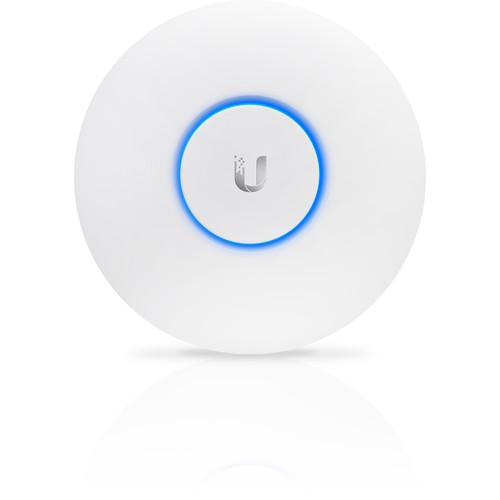

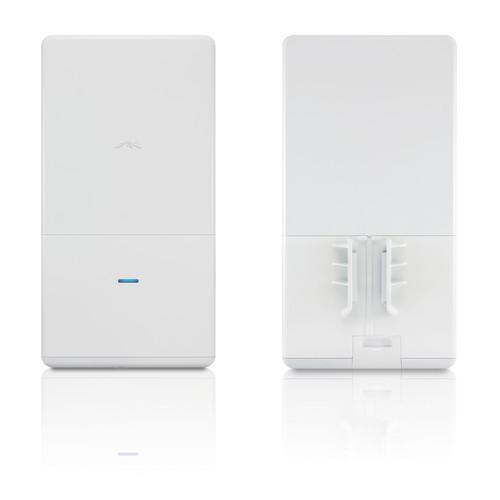

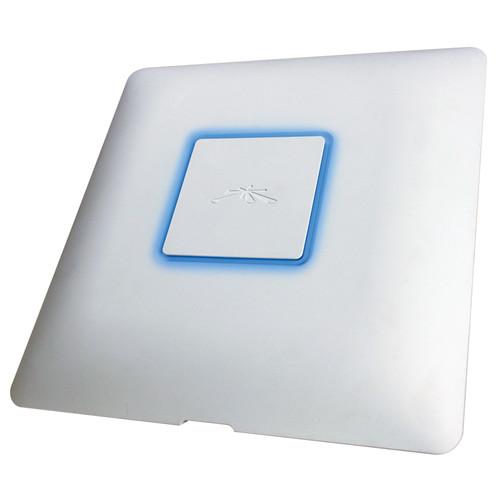

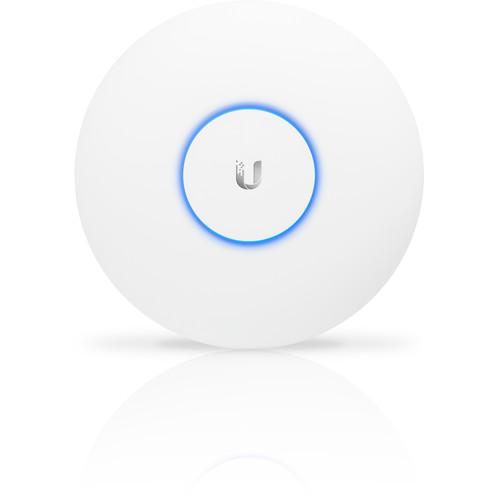

The UAP-AC-EDU UniFi Access Point Enterprise Wi-Fi System from Ubiquiti Networks is a scalable enterprise access point solution designed to be easily deployed and managed. It supports the 802.11ac Wi-Fi standard with speeds of up to 1300 Mb/s in the 5 GHz radio band, and up to 450 Mb/s in the 2.4 GHz radio band. The Wi-Fi system offers simultaneous dual band operation with 3 x 3 MIMO technology for each band. It has a range of up to 400' and one Gigabit Ethernet port. This UniFi Access Point (AP) has a sleek design and can be easily mounted to a ceiling tile or wall using the included mounting hardware. An integrated loudspeaker provides the ability to conduct public announcements via Wi-Fi throughout large campus environments.

The Wi-Fi system includes UniFi Controller software that can be installed on a PC, Mac, or Linux machine within the network, and is easily accessible through a standard Web browser. Using the UniFi Controller software, an Enterprise Wi-Fi network can be quickly configured and administered, without any special training. Real-time status, automatic UAP device detection, map loading, and advanced security options are all seamlessly integrated in the system.
If you own a Ubiquiti Networks wireless access points and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Ubiquiti Networks UAP-AC-EDU UniFi Access Point UAP-AC-EDU-4-US in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Ubiquiti Networks UAP-AC-EDU UniFi Access Point UAP-AC-EDU-4-US:
General
Networking Interface 1 x 10/100/1000 Ethernet ports
Button Reset
Antennas 3 x Dual-band antennas
2.4 GHz: 3 dBi
5 GHz: 6 dBi
Wi-Fi Standards 802.11a/b/g/n/ac
Power Method Passive Power over Ethernet (48 V)
803.2at Supported
(Supported Voltage Range: 44 to 57 VDC)
Power Supply 48 V, 0.5 A PoE Gigabit adapter
Maximum Power Consumption 20 W
Maximum TX Power 2.4 GHz: 22 dBm
5 GHz: 22 dBm
BSSID Up to 4 per radio
Power Save Supported
Wireless Security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
Certifications CE, FCC, IC
Mounting Wall/Ceiling (kits included)
Advanced Traffic Management
VLAN 802.1Q
Advanced QoS Per user rate limiting
Guest Traffic Isolation Supported
WMM (Wi-Fi Multimedia) Voice, video, best effort, and background
Concurrent Clients 200+
Supported Data Rates (Mb/s)
Standards 802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mb/s

802.11n
6.5 to 450 Mb/s (MCS0 - MCS23, HT 20/40)

802.11ac
6.5 to 1300 Mb/s (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80)

802.11b
1, 2, 5.5, 11 Mb/s

802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mb/s
Loudspeaker
Acoustics Sensitivity: 94 dB (1 W, 3.2 ft / 1 m)
Maximum SPL: 103 dB @ 3.2 ft / 1 m
Frequency Response: 100 - 20,000 Hz
Type: Two-way speaker with second-order HP filter
Microphone
Acoustics Sensitivity: -40 dB
Polar Pattern: Omni
Frequency Response: 50 - 20,000 Hz
Physical Characteristics
Temperature & Humidity Operating Temperature: 14 to 158°F / -10 to 70°C
Operating Humidity: 5 to 95% non-condensing
Dimensions 11.32 x 11.32 x 4.96" / 287.5 x 287.5 x 125.9 mm
Weight 3.97 lb / 1.80 kg
The user manual for the Ubiquiti Networks UAP-AC-EDU UniFi Access Point UAP-AC-EDU-4-US can be downloaded in .pdf format if it did not come with your new wireless access points, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Ubiquiti Networks users keep a unique electronic library for Ubiquiti Networks wireless access pointss, where you can use our link to download the user manual for the Ubiquiti Networks UAP-AC-EDU UniFi Access Point UAP-AC-EDU-4-US.

The user manual lists all of the functions of the Ubiquiti Networks UAP-AC-EDU UniFi Access Point UAP-AC-EDU-4-US, all the basic and advanced features and tells you how to use the wireless access points. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Ubiquiti Networks service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Ubiquiti Networks UAP-AC-EDU UniFi Access Point UAP-AC-EDU-4-US. User manuals are also available on the Ubiquiti Networks website under Computers & Solutions - Networking - Wireless Access Points.
