User manual for Ubiquiti Networks UAP-AC-PRO UniFi Access Point UAP-AC-PRO-US
Overall Rating: 4.5
90% of respondents would recommend this to a friend.
- Manufacturer: Ubiquiti Networks
- Basic description and contents of package
- Product classification: Computers & Solutions - Networking - Wireless Access Points
- Safety instructions
- Startup and operation of the wireless access points
- Tips for setting up your Ubiquiti Networks
- Settings and expert assistance
- Contact Ubiquiti Networks service
- Troubleshooting
- Warranty information
- Price: 210 USD
Click to enlarge image
|
We recommend checking out our discussion threads on the Ubiquiti Networks UAP-AC-PRO UniFi Access Point UAP-AC-PRO-US,
which address similar problems with connecting and setting up Wireless Access Points Ubiquiti Networks.
|
User manual for the Ubiquiti Networks UAP-AC-PRO UniFi Access Point UAP-AC-PRO-US
The user manual for the Ubiquiti Networks UAP-AC-PRO UniFi Access Point UAP-AC-PRO-US provides
necessary instructions for the proper use of the product Computers & Solutions - Networking - Wireless Access Points.

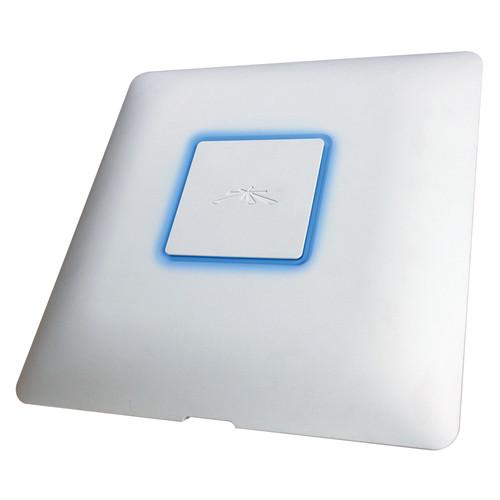

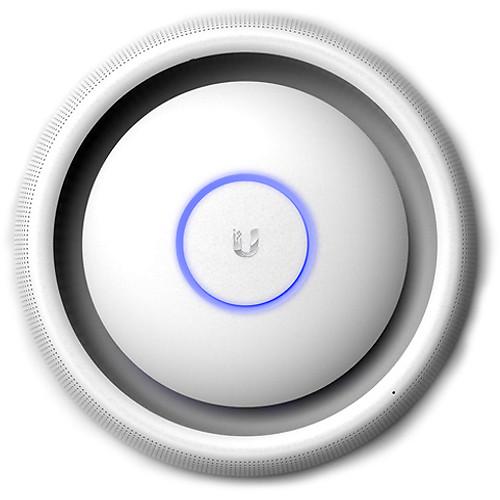

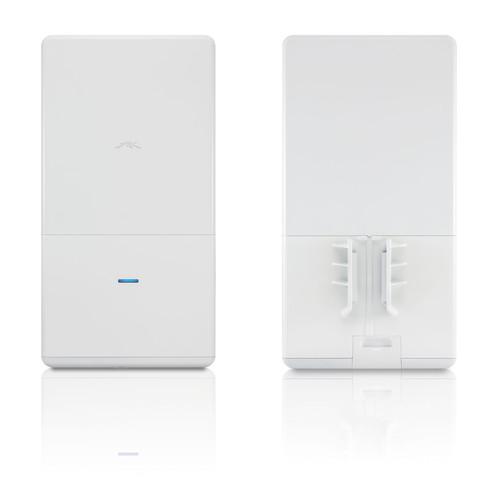

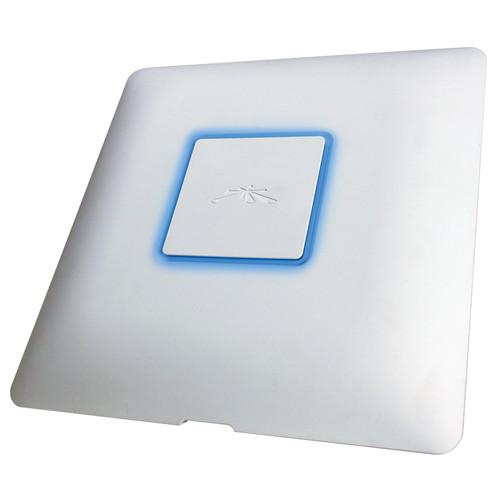

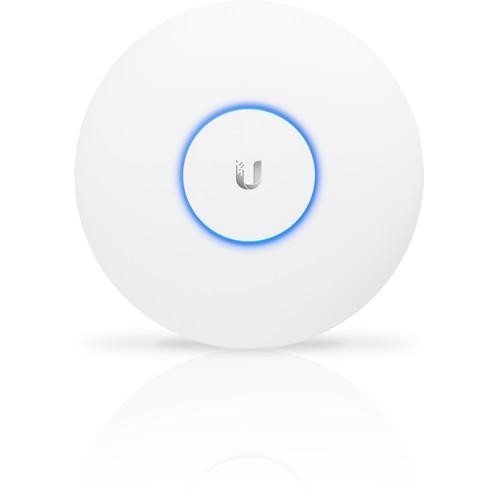

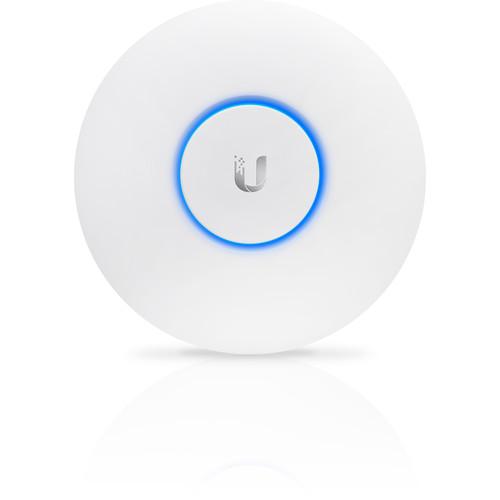

The UAP-AC-PRO UniFi Access Point Enterprise Wi-Fi System from Ubiquiti Networks is a scalable enterprise access point solution designed to be easily deployed and managed. It supports the 802.11ac Wi-Fi standard with speeds of up to 1300 Mb/s in the 5 GHz radio band, and up to 450 Mb/s in the 2.4 GHz radio band. The Wi-Fi system offers simultaneous dual band operation with 3 x 3 MIMO technology for each band. It has a range of up to 400' and two Gigabit Ethernet ports. This UniFi Access Point (AP) has a sleek design and can be easily mounted to a ceiling tile or wall, using the included mounting hardware.
|
If you own a Ubiquiti Networks wireless access points and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Ubiquiti Networks UAP-AC-PRO UniFi Access Point UAP-AC-PRO-US in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Ubiquiti Networks UAP-AC-PRO UniFi Access Point UAP-AC-PRO-US:
| Networking Interface | 2 x 10/100/1000 Ethernet ports | | Button | Reset | | Antennas | 3 x Dual-band antennas, 2.4 GHz: 3 dBi, 5 GHz: 6 dBi | | Wi-Fi Standards | 802.11a/b/g/n/ac | | Power Method | Passive Power over Ethernet (48 V), 802.3af/803.2at Supported
(Supported Voltage Range: 44 to 57 VDC) | | Power Supply | 48 V, 0.5 A PoE Gigabit adapter (included) | | Maximum Power Consumption | 9 W | | Maximum TX Power | 2.4 GHz: 22 dBm
5 GHz: 22 dBm | | BSSID | Up to 4 per radio | | Power Save | Supported | | Wireless Security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) | | Certifications | CE, FCC, IC | | Mounting | Wall/Ceiling (kits included) | | VLAN | 802.1Q | | Advanced QoS | Per user rate limiting | | Guest Traffic Isolation | Supported | | WMM (Wi-Fi Multimedia) | Voice, video, best effort, and background | | Concurrent Clients | 200+ | | Standards | 802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mb/s
802.11n
6.5 to 450 Mb/s (MCS0 - MCS23, HT 20/40)
802.11ac
6.5 to 1300 Mb/s (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80)
802.11b
1, 2, 5.5, 11 Mb/s
802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mb/s | | Dimensions | 7.74 x 7.74 x 1.38" / 196.7 x 196.7 x 35.0 mm | | Weight | Without Mounting Kit: 12.4 oz / 350 g
With Mounting Kit: 15.9 oz / 450 g | | Package Weight | 2.55 lb | | Box Dimensions (LxWxH) | 9.6 x 9.0 x 3.9" | |
The user manual for the Ubiquiti Networks UAP-AC-PRO UniFi Access Point UAP-AC-PRO-US can be downloaded in .pdf
format if it did not come with your new wireless access points, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Ubiquiti Networks users keep a unique electronic library
for Ubiquiti Networks wireless access pointss,
where you can use our link to download the user manual for the Ubiquiti Networks UAP-AC-PRO UniFi Access Point UAP-AC-PRO-US.
The user manual lists all of the functions of the Ubiquiti Networks UAP-AC-PRO UniFi Access Point UAP-AC-PRO-US,
all the basic and advanced features and tells you how to use the wireless access points.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Ubiquiti Networks service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Ubiquiti Networks UAP-AC-PRO UniFi Access Point UAP-AC-PRO-US. User manuals are also
available on the Ubiquiti Networks website under Computers & Solutions - Networking - Wireless Access Points.
Question and answer discussion forum concerning user instructions and resolving problems with the Ubiquiti Networks UAP-AC-PRO UniFi Access Point UAP-AC-PRO-US - no comments have been made yet - be the first to add a comment
